Commissioning
5.6

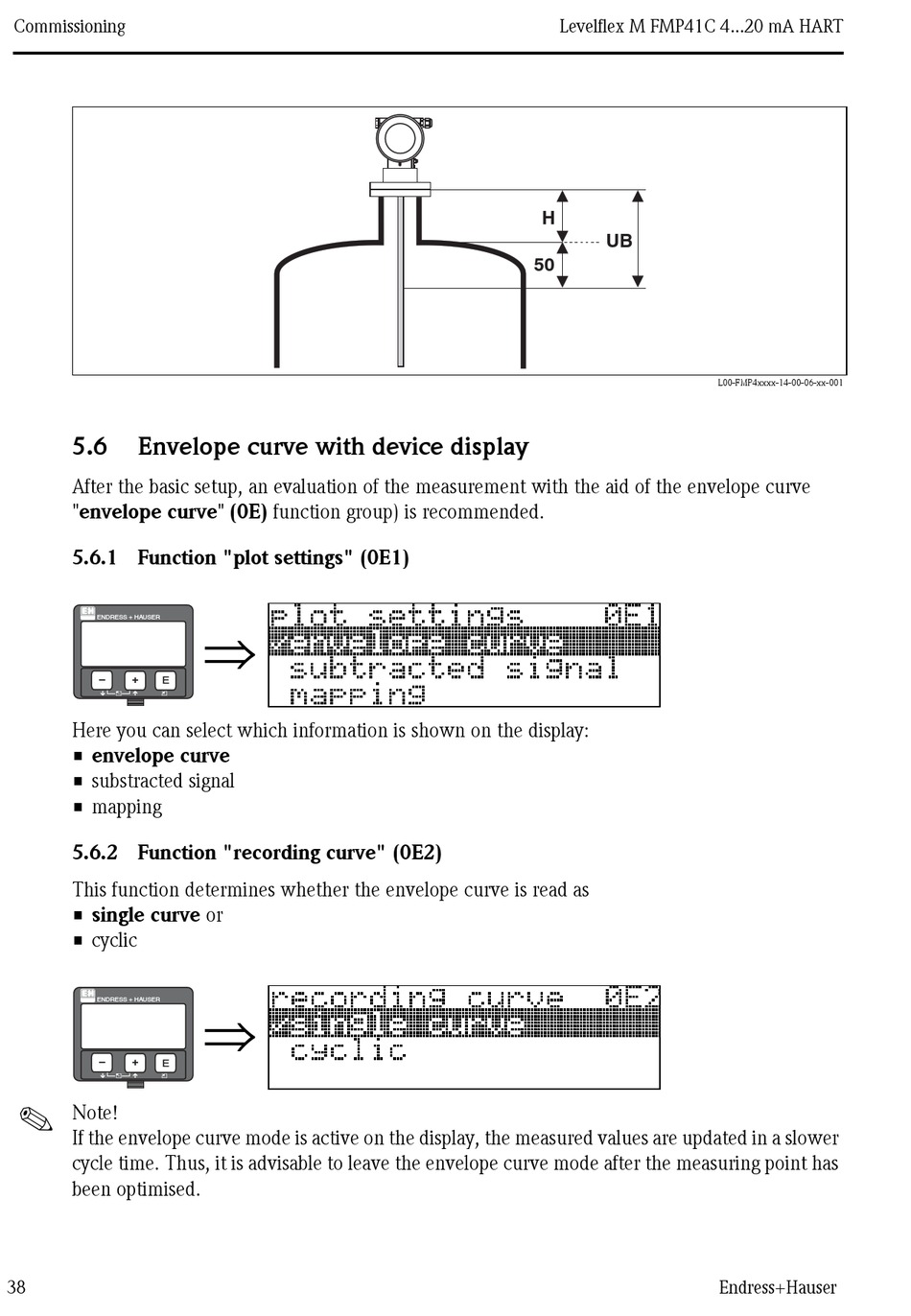

Envelope curve with device display

After the basic setup, an evaluation of the measurement with the aid of the envelope curve
"envelope curve" (0E) function group) is recommended.
5.6.1 Function "plot settings" (0E1)
ENDRESS + HAUSER
– +
E
Here you can select which information is shown on the display:
• envelope curve
• substracted signal
• mapping
5.6.2 Function "recording curve" (0E2)
This function determines whether the envelope curve is read as
• single curve or
• cyclic
ENDRESS + HAUSER
–
+ E
!
Note!
If the envelope curve mode is active on the display, the measured values are updated in a slower
cycle time. Thus, it is advisable to leave the envelope curve mode after the measuring point has
been optimised.
38
⇒
⇒
Levelflex M FMP41C 4...20 mA HART
H
UB
50
L00-FMP4xxxx-14-00-06-xx-001
