Technical Manual

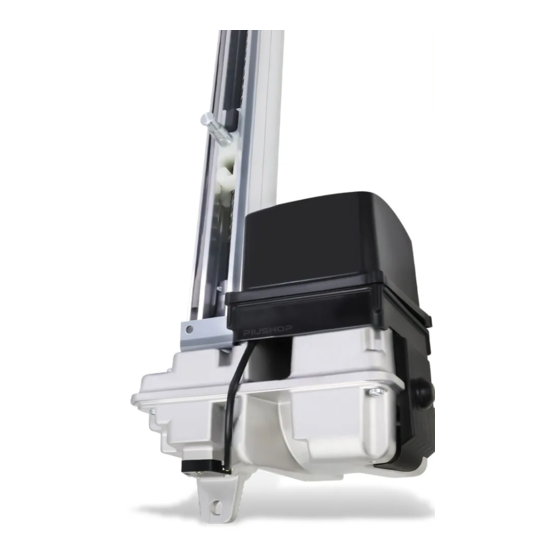

BV HOME
WARNING:
Do not use the device
without referring to this
Made by:: Motoppar Indústria e Comércio de Automatizadores Ltda
Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial - Garça - SP - CEP 17406-200 - Brasil
manual first.
CNPJ: 52.605.821/0001-55
P30566 - 08/2022
Rev. 1
www.ppa.com.br | +55 14 3407 1000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PPA BV HOME Series
Summary of Contents for PPA BV HOME Series
- Page 1 Made by:: Motoppar Indústria e Comércio de Automatizadores Ltda Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial - Garça - SP - CEP 17406-200 - Brasil manual first. CNPJ: 52.605.821/0001-55 P30566 - 08/2022 Rev. 1 www.ppa.com.br | +55 14 3407 1000...
- Page 2 CONTENTS IMPORTANT SAFETY INSTRUCTIONS Recommendation: When installing the operator, the PPA’s specialist installer must comply with all the instructions present on both this technical IMPORTANT SAFETY INSTRUCTIONS ..................3 manual and the user manual. TECHNICAL FEATURES ........................4 By using the user manual, the installer must present all information, uses and BASIC TOOLS NEEDED FOR INSTALLATION ................
- Page 3 TECHNICAL FEATURES BASIC TOOLS NEEDED FOR BV HOME CUSTOM BV HOME INSTALLATION TYPE OF GATE OPERATOR OVERHEAD OVERHEAD OVERHEAD MOTOR Single-Phase Single-Phase Single-Phase POWER SUPPLY 220 V / 127 V 220 V 127 V Tools needed: RATED FREQUENCY 60 Hz 60 Hz 60 Hz RATED POWER...
- Page 4 PRECAUTIONS WITH THE GATE BEFORE - The cable used for the wiring must comply with the NBR NM 247-3 THE INSTALLATION standards (Brazil) - The mains cable (of an internal use product) must be a 3 x (Tri- rated) 0.75 mm² / 500 V flexible cable, according to the NBR NM Before installing the operator on the gate, some procedures must be taken: 247-5 standards (Brazil) - The mains cable (of an internal use product) must be a 3 x (Tri-...
- Page 5 Step 3: Insert the closing stopper with the rubber part facing the lead nut. To install the equipment, follow the steps below: Step 1: The axis of the gate must be at a height between 100mm (~4”) and 300mm (~11.9”), below the middle tip of the gate leaf. ARTICULATED GATE LEAF CENTER OF THE LEAF...
- Page 6 Step 6: Position the operator vertically on the gate column and weld the mounting Step 9: With the gate closed, keep an inclination of 50mm (~2”) on the traction brackets to the column, observing the measurements shown in the picture below. lever, observing a distance from the middle of the traction lever’s hinge and the niddle of the lead nut pin.
- Page 7 That Tecnologia: RUBBER PART Voltagem: done, refer to the control board manual Central: Tamanho: available to download on www.ppa. Montagem: Carenagem: com.br and perform all connections and Engrenagem: settings accordingly. TROUBLESHOOTING The chart below contains useful information on some PROBLEMS — SYMPTOMS, PROBABLE CAUSES AND POSSIBLE SOLUTIONS which might affect your operator.
