Training Controls

In order to activate the Training Controls section the System must detect a load of at least 10 lbs (4.5
kg). Use the winch up button to create tension in the trolley rope and patient harness shoulder straps
until the desired value has been reached. Once the trolley rope detects an unloading of 10 lbs (4.5
kg) the Training Controls section will become active. See Figure 5-6.

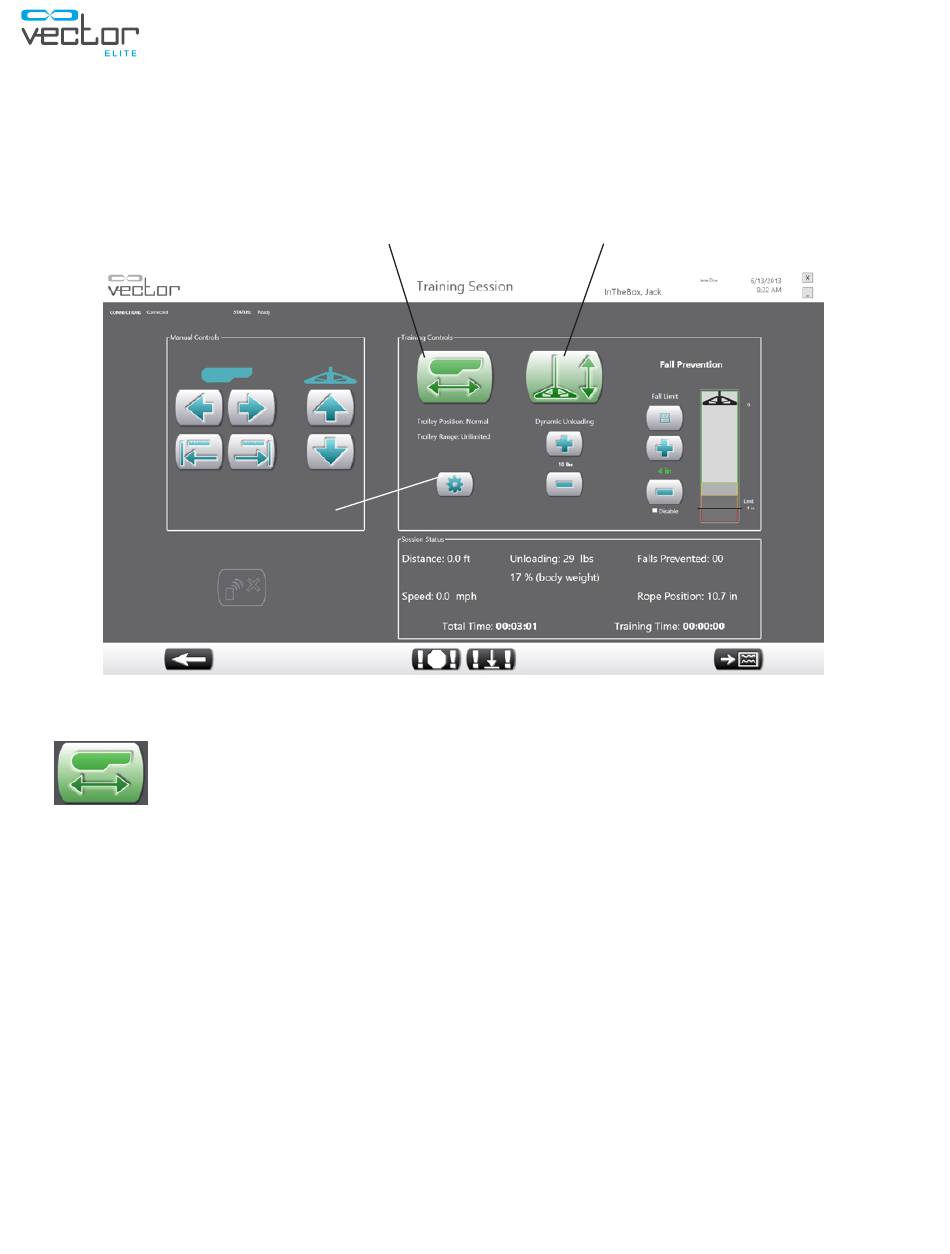

Figure 5-6: Training Session Screen with Training Controls section activated

Trolley Tracking

When activated the Trolley Tracking feature keeps the trolley at a desired location relative
to the patient. The default setting for the trolley position is "normal", the trolley will
remain directly above the patient during a training session. The default setting for the trolley range is
"unlimited", the trolley will run along the entire length of track.
To change the settings press on the More Training Options button, this will open a new window. The
More Training Options window allows the user to change the trolley position and range. See Figure
5-7.
Trolley Position: (this setting determines the target rope angle)
Normal – this setting will adjust the trolley position so it remains directly above the patient while the
patient moves.
Posterior – this setting will adjust the trolley position so it remains slightly behind the patient while the
patient moves.
Clinician's Guide
16
Trolley Tracking
More Training
Options
Dynamic Body
Weight Support
