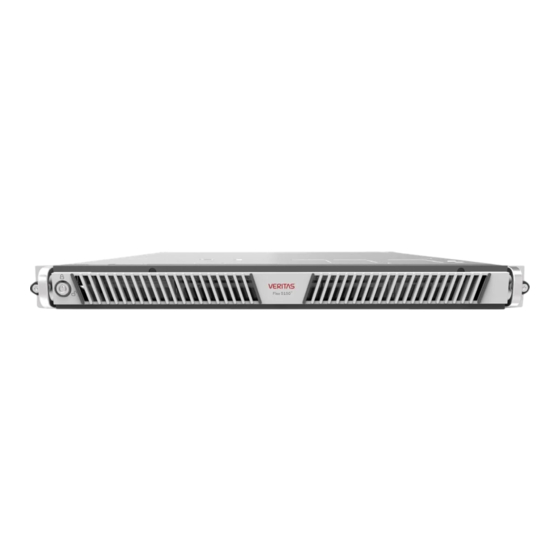

VERITAS Flex 5150 Quick Reference Card

Veritas Flex 5150 Appliance Veritas Flex 5150 Appliance
Quick Reference Card – Hardware Quick Reference Card – Hardware
A
B
C
D
Power Supply
© 2019 Veritas Technologies LLC. All rights reserved. Veritas and the Veritas Logo are trademarks or registered trademarks of Veritas Technologies LLC or its affiliates in the U.S. and other countries. Other names may be trademarks of their

Flex 5150 Appliance Rear Panel

Power Supply
#1 #2

Flex 5150 Appliance 32GB DDR4 Memory DIMM Population

PCIe Riser #2
NIC NIC Video Serial A 3 x USB
#1 #2 RJ45 3.0 Ports
CPU 1
respective owners.
Veritas Support Services Veritas Support Services
Last Updated – 10.05.2020 Last Updated – 10.05.2020

Flex 5150 Base Specifications

H
• 19-inch, 1U rack-mount server
• 1 x 1.7GHz 3106 8 core 11MB cache processor
2 x DDR4 32GB DIMM 64GB RAM – Base
•
1 x 1 Gbps IPMI Management port
•
4 x 8TB 3.5" SAS-3 7200 RPM HDDs (RAID 10)
•
2 x 480GB M.2 SSD Boot (RAID 1)
•
1 x 32GB M.2 SATA SSD Certificates
•
2 x 1100W power supply
•
3 x USB 3.0 Port Ports
•
• 8 Port SAS3 HBA (SAS HDDs and Tape Out)
• 4 Port OCP 1GbE copper (Models A - D)
• 2 x 4 Port 1GbE copper (Model B)
• 2 Port 10GbE NIC (Model C)
• 2 Port 10/25GbE (Model D)
• Voltage: 110 – 240V AC
Weight: 31 lbs (14.1 kg)
•
PCIe Riser #1
Management OCP
Port Module Bay
eth4 eth5
CPU 2
