VERITAS 5U84 Hardware Service Procedure

Storage shelf

Veritas Appliance

Hardware Service Procedure

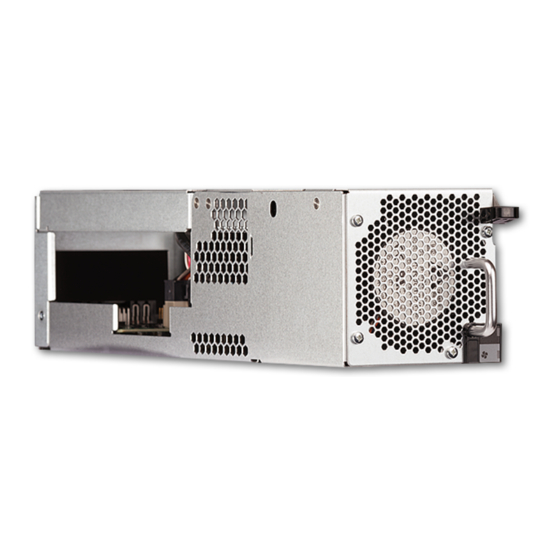

Replacing a power supply in a Veritas 5U84 Storage Shelf

Document Number: 227

Version 1.0 (11/06/17)

Purpose

This document describes the process for replacing a power supply in a 5U84 Storage Shelf.

The static discharged by human bodies can damage static-sensitive components on the boards.

When installing and maintaining the equipment, observe appropriate electrostatic safety precautions

to prevent personnel injuries or device damage.

When operating a device in an electrostatic sensitive area, you must take electrostatic-discharge

(ESD)-preventive measures. These include wearing ESD-preventive gloves, an ESD-preventive wrist

strap, and ESD-preventive clothes to avoid personnel injury or device damage.

To prevent damage to the device, pay attention to the following during operations:

•

Do not touch devices with bare hands because ESD from the human body may damage the

electrostatically sensitive elements on a board.

•

When dealing with the server or any of the internal components, wear an ESD-preventive wrist

strap, ESD-preventive gloves, and ESD-preventive suit.

Attention: A HA or multi-node appliance is serviced in the same manner as a single node appliance.

This section describes how to remove and replace a power supply in a 5U84 Storage Shelf.

Caution: You must complete a power supply swap within three minutes. Leaving the power supply

slot open for longer than three minutes can result in the appliance overheating and cause other

components to fail.

Table of Contents

Do you have a question about the 5U84 and is the answer not in the manual?

Page 1 Attention: A HA or multi-node appliance is serviced in the same manner as a single node appliance. About replacing a 5U84 Storage Shelf power supply This section describes how to remove and replace a power supply in a 5U84 Storage Shelf. Caution: You must complete a power supply swap within three minutes. Leaving the power supply slot open for longer than three minutes can result in the appliance overheating and cause other components to fail.
Page 2 ESD wrist strap Removing a 5U84 Storage Shelf power supply Use the following steps to remove a 5U84 Storage Shelf power supply. To remove a 5U84 Storage Shelf power supply Put on an ESD-compliant wrist strap or take other ESD-protective measures.
Page 3 HSP #227 - Power supply replacement: Veritas 5U84 Storage Shelf Warning: Swap one power supply at a time only. If you need to remove both power supplies, make sure that the storage shelf is turned off before you proceed. Squeeze the faulty power supply latch towards the power supply handle. Use the handle to pull the power supply out to remove the module from the storage shelf.
Page 4 HSP #227 - Power supply replacement: Veritas 5U84 Storage Shelf Turn on the power supply switch. Verify that the LED on the replacement power supply is green and that the air flows from the power supply. If the LED is not green, contact the Veritas Technical Support.
