Installing and Removing Disk Drives

38
You do not need to access the inside of the chassis or remove power to install or replace SATA
drives.
The server chassis contains four individual motherboards in separate node drawers. Each
motherboard node controls a set of three hard drives. Note that if a motherboard node drawer is
pulled out of the chassis, the hard drives associated with that node will power down as well.

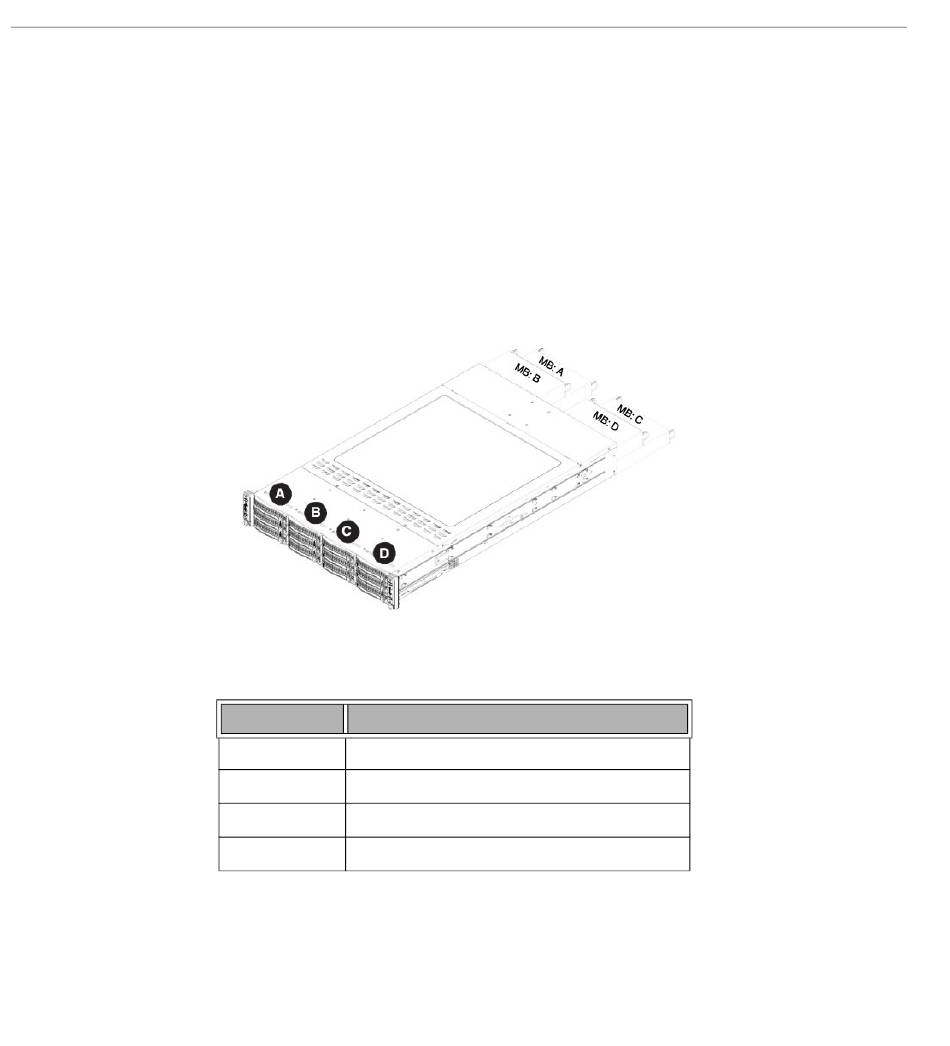

Figure 5-4 shows the motherboard drawers and associated disk drives.
correspondence of motherboards and disk drives.
Figure 5-4 Motherboard Drawer Locations.
Table 5-1 Hard Drives and Corresponding Motherboards
Motherboard Corresponding Disk Drives
A HDDs A0, A1 and A2
B HDDs B0, B1 and B2
C HDDs C0, C1 and C2
D HDDs D0, D1 and D2
Table 5-1 itemizes the
