Figure 3-1 Separating And Installing The Rack Rails - Silicon Graphics Rackable C2112-4KL1 User Manual

007-6471-001
1
2
3
4
5
6

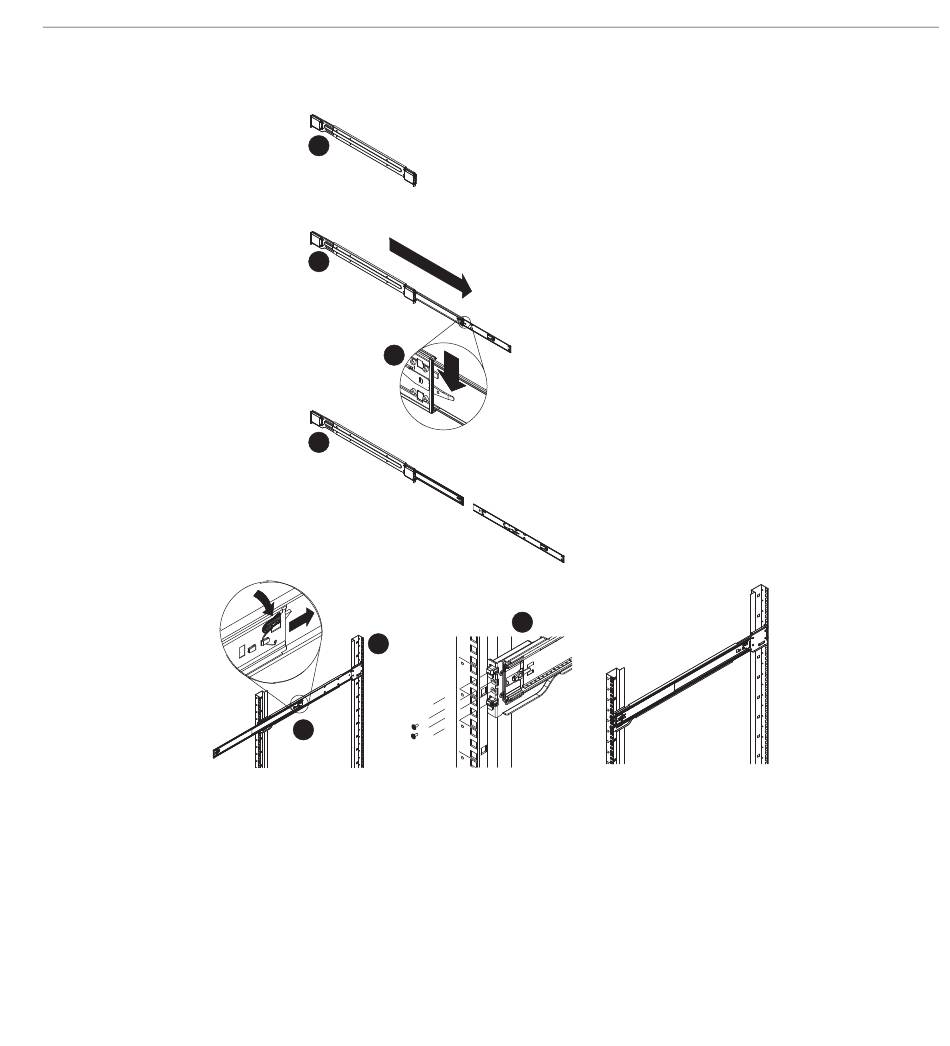

Figure 3-1 Separating and Installing the Rack Rails
Outer rails attach to the rack and hold the chassis in place. The outer rails for the chassis extend
between 30 inches and 33 inches.
Steps 5–8 describe how to install the outer rails to the rack (see
5. Secure the back end of the outer rail to the rack, using the screws provided.
Rail Assembly
Extending the Rails
Quick-
Release Tab
Separating the
Inner Rail Extension
7
Install the System into a Rack
Figure 3-1):
21
