WARNING: When replacing the standard battery, make sure that
the locking latch is in the correct position, moved fully to the right
to lock the battery in place, and that the battery is firmly installed.

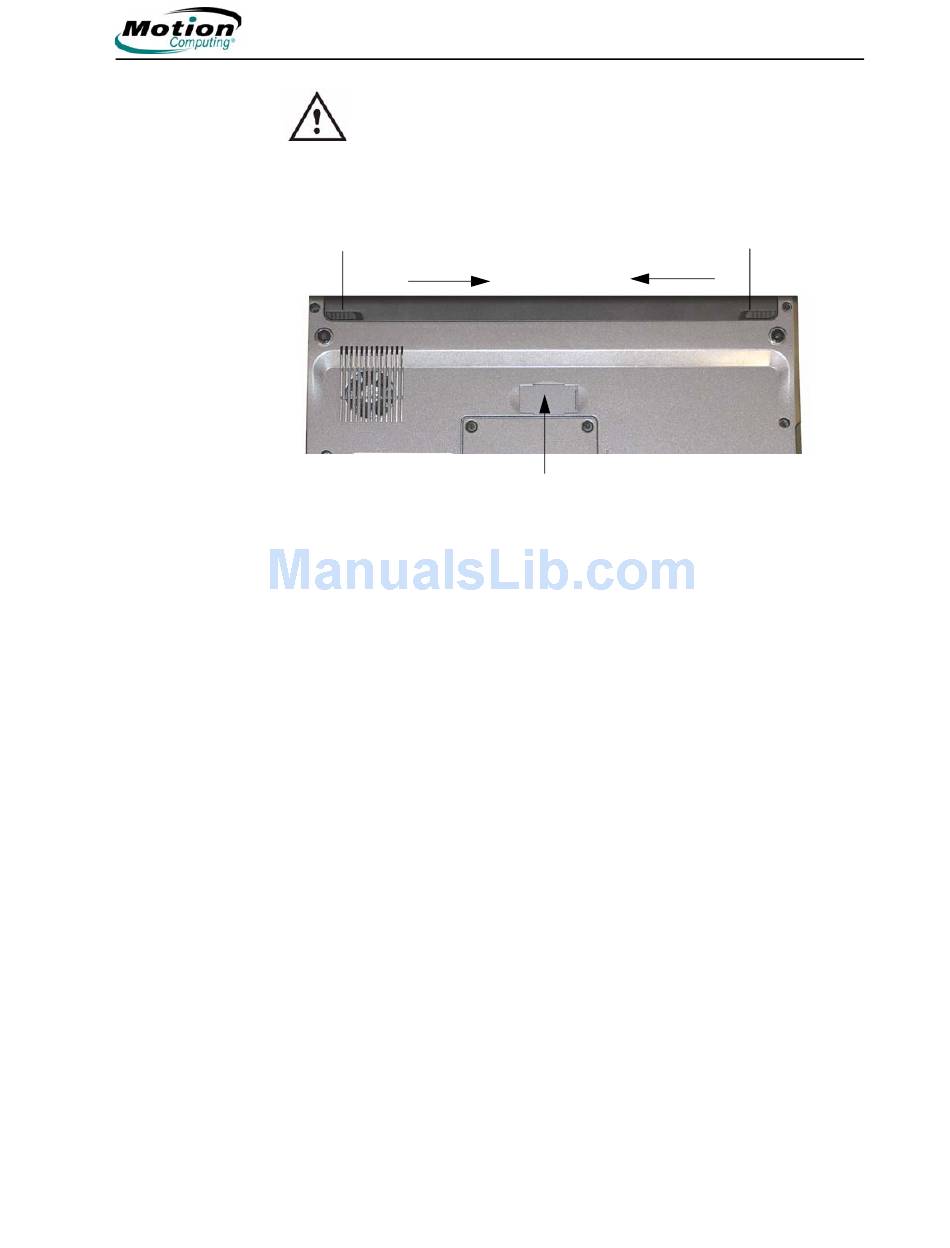

LE-Series Tablet PC with the Extended Battery Connector
Spring-Loaded Latch
Slide latches toward center to unlock
Extended Battery Connector
Under Sliding Panel (must be
open to install Extended
Battery)
• Reading battery power from Motion Dashboard
The Motion Dashboard also has a power gauge (on the Power panel) that
displays the percent of remaining battery charge. If a Standard Battery and a
Extended Battery are both attached, the power reading is the cumulative
amount of both batteries.
Motion Computing LE-Series and LS-Series Tablet PCs User Guide 39
Locking Latch
