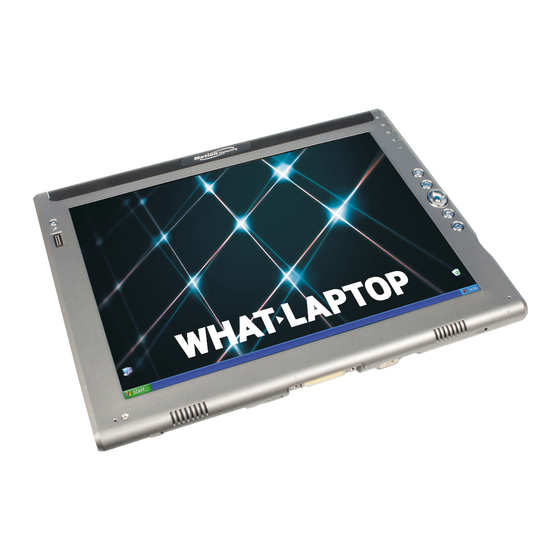

Motion Computing LE1600 Quick Start Manual

®
Logging On to the Tablet PC
After turning on your Tablet PC, you will be guided
through a set-up process, or your IT department may
have provided you with a password.
Once the initial setup of your system is completed and
you have created a system password, you are ready to
log on.
1. When prompted, press the
Ctrl+Alt+Del button located on the
front of your Tablet PC (labeled with a
key icon).
2. Using the pen and the on-screen
keyboard, tap in your password.
Using the Pen
Using the Tablet PC pen is similar to using a mouse. To right-
click, hold down the Function Button on the pen.
The following table explains the similarities between a Tablet
PC pen and a mouse.
Function Mouse Action
Select Point and click
Open an Double-click
application or file
Select and drag Click and drag
Display properties Right-click and
or edit functions hold
(cut, copy, paste)
Using the Tablet PC Buttons
Escape
Function
Five-Way
Directional Control
Motion Dashboard
Rotate Screen
To activate or deactivate the wireless radios,
press the wireless button on the left side of
Wireless the Tablet PC (when in primary landscape
Button
mode) for at least one-half second.
For more information, see the Motion User Guide.
Motion Computing is a registered trademark and Motion is a trademark of
Motion Computing, Inc. in the United States and other countries. All trademarks
or registered trademarks are properties of their respective owners.
TM TM TM TM TM
Motion Motion Motion Motion Motion Tablet PC Quick Start Guide Tablet PC Quick Start Guide Tablet PC Quick Start Guide Tablet PC Quick Start Guide Tablet PC Quick Start Guide
Ctrl+Alt+Del
Button
Pen Action
Point and tap the display
Double-tap on the
display
Tap and drag on the display
Press and hold the pen Function
Button, then tap the screen; or,
hold the pen on the display until
the mouse icon appears,
and then remove the pen tip
from the display
Helpful Tip:
Use the Function button to
activate the secondary
functions of the Directional
Control, Motion Dashboard
and Rotate buttons.
Getting Started
Familiarize yourself with the following reference materials:
1. Complete the interactive Get Going with Tablet PC tutorial.
(Start > All Programs > Tablet PC > Get Going with Tablet PC)
2. Complete the other useful Tablet PC Tutorials.
(Start > All Programs > Tablet PC > Tablet PC Tutorials)
3. Open and review the Motion Dashboard.
(Start > All Programs > Motion Resources > Motion Dashboard)
4. Refer to the Motion User Guide if you have any questions.
(Start > All Programs > Motion Resources > User Guide)
Helpful Pen Tips
• Hold the pen like a regular pen.
• Do not position your finger on the Function Button.
• Rest your hand on the screen.
• To change from right- to left-handed usage.
a. Open Motion Dashboard (see Getting Started).
b. On the Pen & Digitizer panel, select Pen & Button
Options, and then select Tablet and Pen Settings.
c. In the Settings tab, choose left-handed.
• Calibrate the digitizer and pen for better cursor alignment.
a. Open Motion Dashboard (see Getting Started).
b. On the Pen & Digitizer panel, select Calibrate Digitizer,
and then follow the instructions.
Function Button
Pen Tip
Optimizing Battery Life
• Use AC power when available.
• Open the Motion Dashboard; on the Display panel, adjust the
brightness to the lowest comfortable brightness level.
• Set the Power Button to Stand By or Hibernate: to conserve
battery power; to quickly power on and off; or when not in use.
• When not in use, turn off wireless radios in Motion Dashboard.
• For advanced tips about extending the battery life, go to
www.motioncomputing.com/tips.
Using Speech Recognition
1. For information about configuring the Tablet PC microphones,
see "Introduction to Speech" in the Motion User Guide.
2. Complete the Using Speech Recognition tutorial.
(Start > All Programs > Tablet PC > Tablet PC Tutorials > Speech)
Copyright © 2005 by Motion Computing, Inc. All rights reserved.
Eraser
P/N 024-02-0084 Rev. A00
