LS-Series Tablet PC Buttons, Slots, and Ports

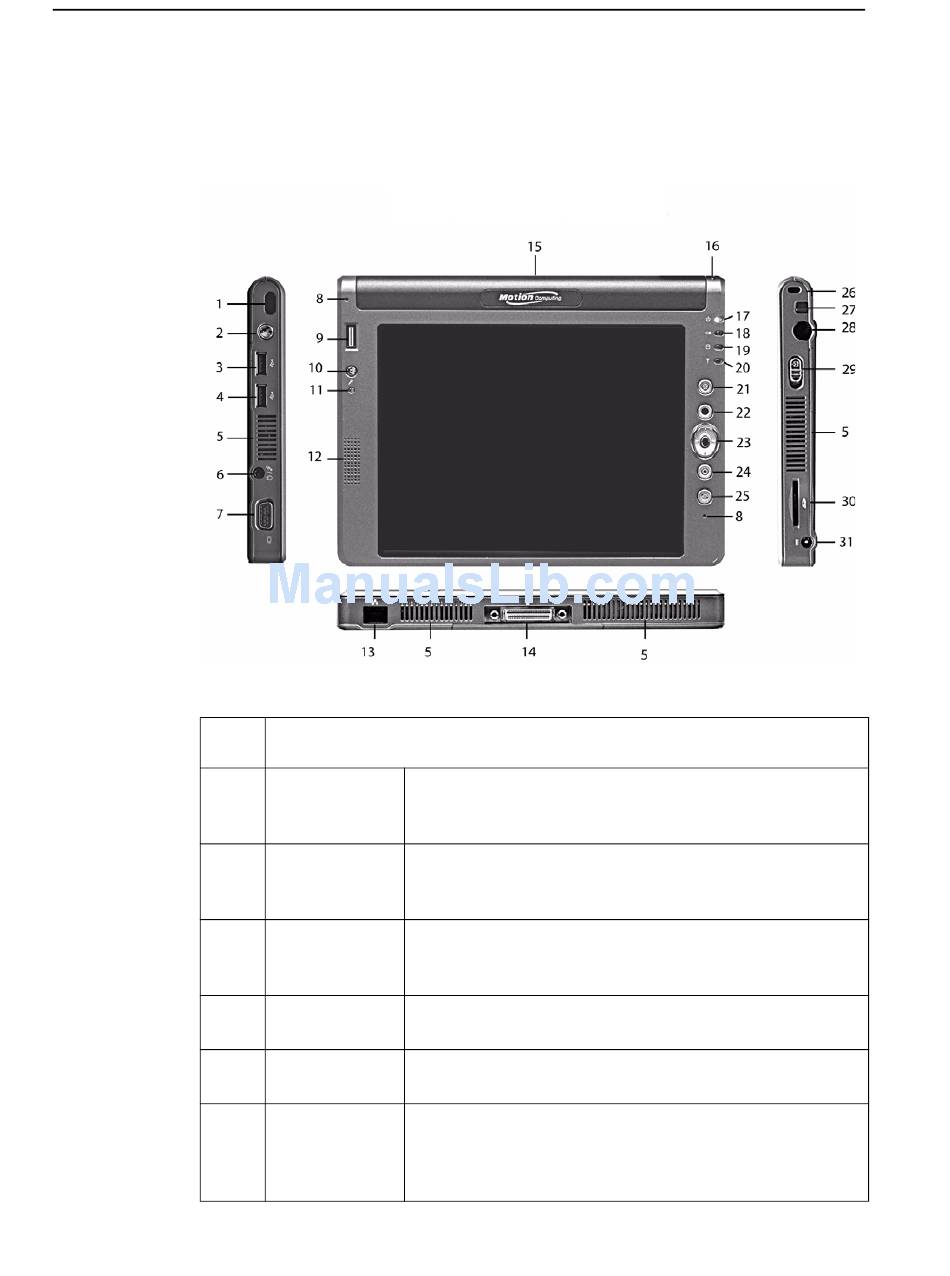

The following illustration shows the buttons, slots, and ports on the Motion LS-
Series Tablet PC. Refer to the table following the illustration for a description of
each item.
Item
1
2
3,4
5
6
7
14 Motion Computing LE-Series and LS-Series Tablet PCs User Guide
LS-Series Tablet PC
LS-Series Tablet PC indicator lights, buttons, slots, ports, and other
Infrared (IrDA) An infrared transceiver built into the Tablet PC. Allows
transceiver communication with other devices compliant with the
IrDA standard. Effective range is approximately 3 feet.
Wireless On/Off Alternately turns wireless on and off; makes it easy to
disable wireless on airplanes (button must be pressed
and held for 1/2 second to take affect)
USB port (2) Universal Serial Bus; for connecting USB 2.0 devices,
such as a storage device, mouse, printer, digital camera,
or optical disk drives
Air vents Active cooling system vents on the sides and back of the
Tablet PC, dissipate heat from the Tablet PC
Audio input/ Configurable microphone or headset plug; 3.5 mm plug
output (1)
VGA port A standard DB-15 monitor port for an external monitor,
projector, or other VGA device. Motion Computing does
not provide a VGA cable; refer to the information that
came with your display for the type of cable to use.
components
