LE-Series Tablet PC Buttons, Slots, and Ports

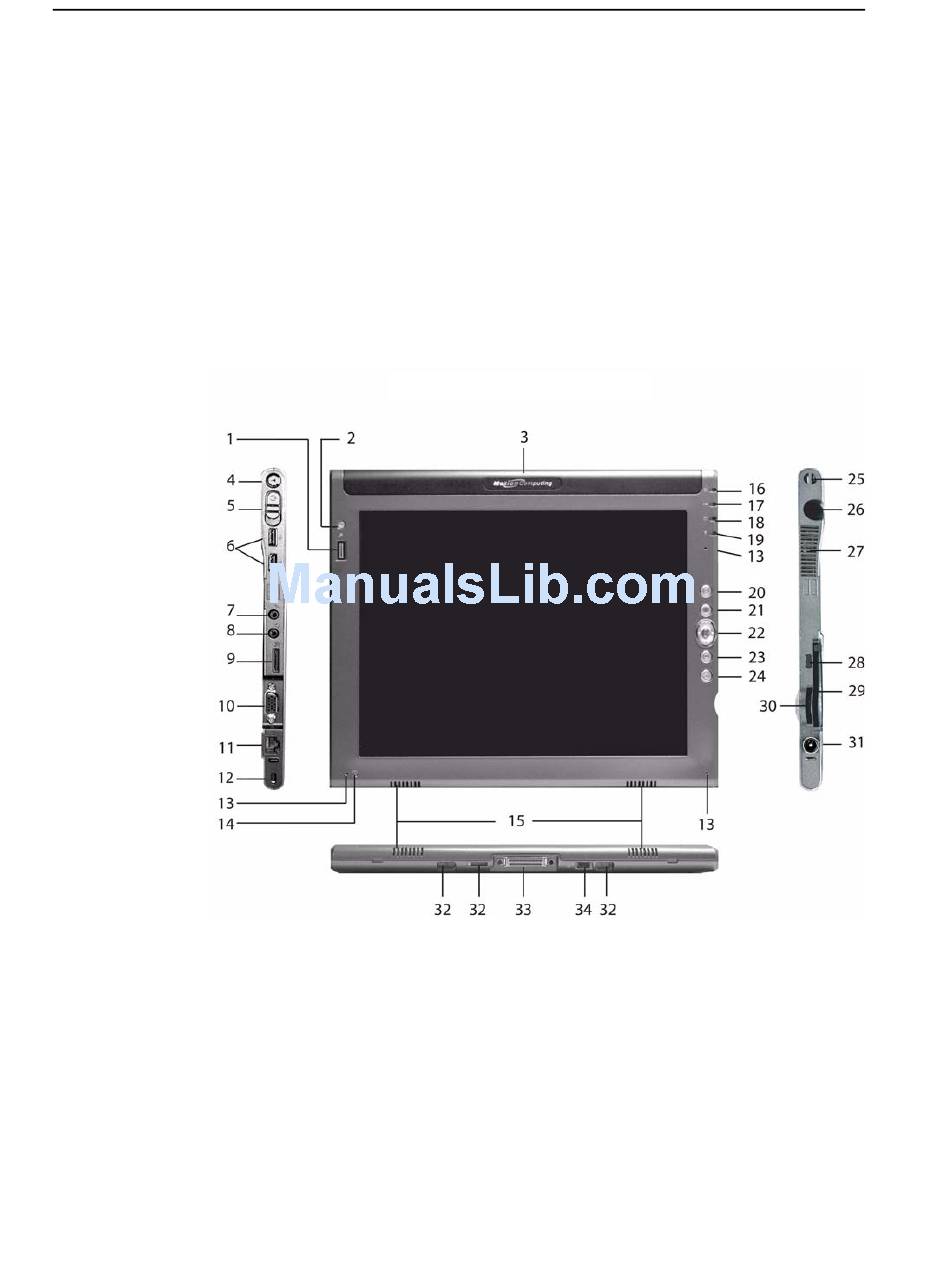

The following illustration shows the buttons, slots, and ports on the Motion LE-
Series Tablet PC. Refer to the table following the illustration for a description of
each item. While there are no controls on the back side, there is a sliding panel that
covers the Extended Battery connector. This panel must be open before connecting
the optional Extended Battery. The connector panel should be closed when not
being used.
10 Motion Computing LE-Series and LS-Series Tablet PCs User Guide
NOTE: Regardless of the slight difference in appearance between the LE-
Series Tablet PC and the Touch Screen Tablet PC, the buttons, slots, and
ports are located in the same general locations. All references to the Motion
LE-Series Tablet PC in this section also apply to the Touch Screen Tablet
PC.
LE-Series Tablet PC
