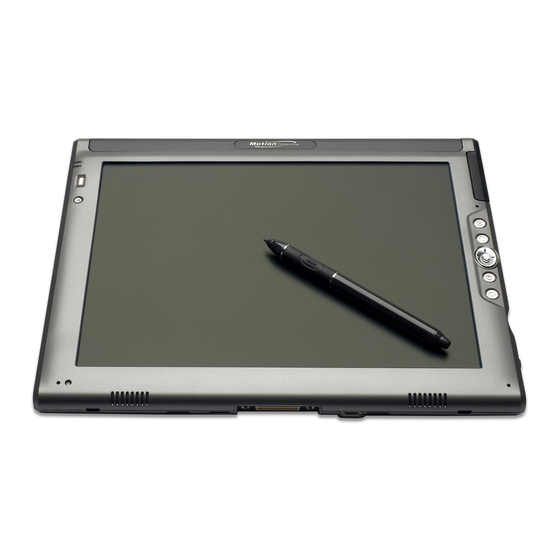

Motion Computing LE1700 Series Quick Reference Manual

®
This Quick Reference Guide provides information for using the
LE1700 and LE1700 WriteTouch
NOTE: For additional reference information, see the Quick
Setup included with your Tablet PC.
Logging on
After turning on your Tablet PC, perform the
following steps:
1. When prompted, press the Windows Security
button located on the front of your Tablet PC
(labeled with a key icon).
2. Using the pen and the on-screen keyboard, tap in your
password.
Using the pen and the touch screen
Using the Tablet PC pen or your fingertip on the touch screen is similar
to using a mouse to make selections and open files.
The following table explains the similarities for using a Tablet PC pen
or fingertip and a mouse.
Function Mouse action
Select Point and click
Open a file or Double-click
application
Select and drag Click and drag
Display properties Right-click and
or edit functions hold
(cut, copy, paste)
Using the Tablet PC buttons
Escape
Function
Directional control
Motion Dashboard
Rotate screen
To activate or deactivate the wireless adapters, press and
hold the wireless button on the left side of the Tablet PC,
Wireless
above the power switch.
button
For more information about button functions, see the
Motion User Guide on your Tablet PC desktop.
Motion Computing and Speak Anywhere are registered trademarks and Motion is
a trademark of Motion Computing, Inc. in the United States and other countries. All
trademarks or registered trademarks are properties of their respective owners.
Motion
Quick Reference Guide for Windows Vista
Tablet PC.
TM
Windows
Security
button
Touch and pen action
Point and tap the display
Double-tap or double-touch on
the display
Tap or touch and drag on the
display
Hold the pen or your fingertip
on the display until the mouse
icon appears, and then remove
the pen tip or fingertip from the
display
Helpful tip:
Use the Function button to
activate the secondary functions
of the Directional Control, Motion
Dashboard, and Rotate buttons.
For more information, see the
Motion User Guide on your Tablet
PC desktop.
LE1700 Tablet PC Series
TM

Getting started

Familiarize yourself with the following reference materials:
1. Complete the interactive Get Going with Tablet PC tutorial.
(Start > All Programs > Tablet PC > Get Going with Tablet PC)
2. Complete the other useful Tablet PC Tutorials.
(Start > All Programs > Tablet PC > Tablet PC Tutorials)
3. Open and review the Motion Dashboard.
(Start > All Programs > Motion Computing > Motion Dashboard
or see "Using the Tablet PC Buttons" below)
4. Refer to the Motion User Guide if you have any questions.
(Start > All Programs > Motion Computing > Motion User Guide)
Helpful pen tips
• Hold the pen like a regular pen.
• You can rest your hand on the screen.
• You can change from right- to left-handed usage.
1. Open Motion Dashboard (see Getting started).
2. On the Pen & Digitizer panel, select Pen & Button
Options, and then select Tablet and Pen Settings.
3. In the Settings tab, choose left-handed.
• Calibrate the digitizer and pen for better pointer alignment.
1. Open Motion Dashboard (see Getting started).
2. On the Pen & Digitizer panel, select Calibrate Digitizer,
and then follow the instructions.
• For more information about using the pen, see the Motion
User Guide.
Function button (right-click function)
Pen tip

Optimizing battery life

• Use AC power when available. When the Tablet PC is
connected to AC power, the battery will continue to charge
while using the Tablet PC.
• In the Display panel of the Motion Dashboard, adjust the
brightness to the dimmest comfortable brightness level.
• In the Motion Dashboard, set the power button to Stand By
or Hibernate to conserve battery power, to quickly power on
and off, or when not using the Tablet PC.
• When not in use, turn off wireless adapters in Motion Dashboard.
• For advanced tips about extending the battery life, go to
www.motioncomputing.com/tips.
Copyright © 2007 Motion Computing, Inc. All rights reserved.
Eraser - Not functional
on WriteTouch tablets
(March 2007) P/N 024-02-0160 Rev. A00
