ENFORCER580

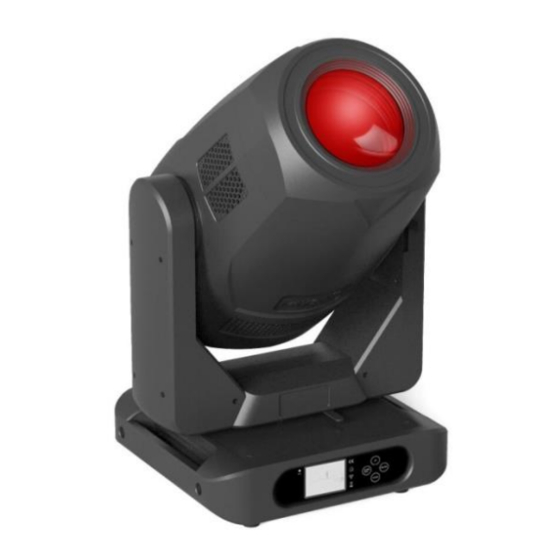

580W LED HYBRID MOVING HEAD
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting ENFORCER580
Summary of Contents for Event Lighting ENFORCER580

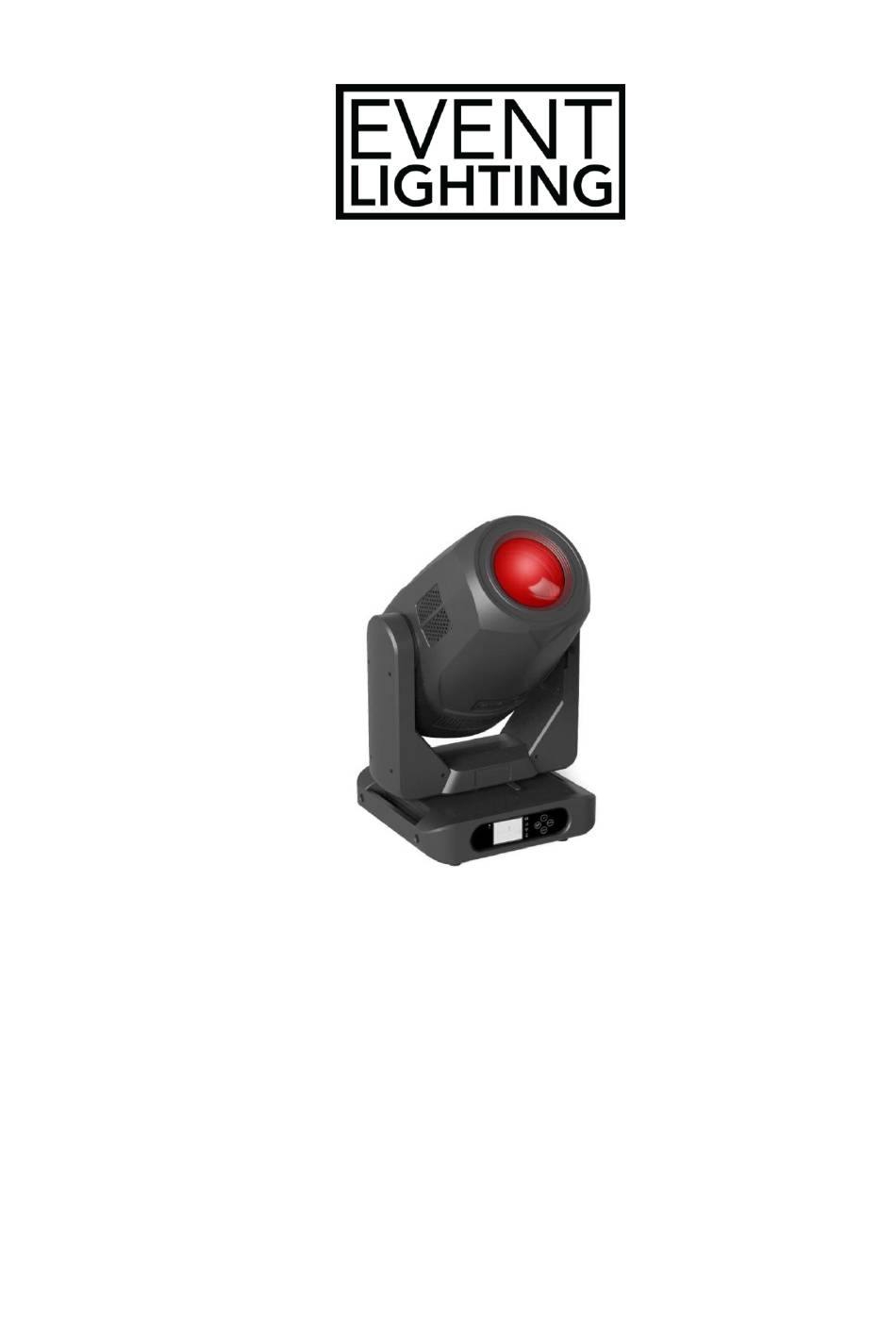

- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
- Page 2 Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...
- Page 3 Product Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Use a safety chain when mounting this device overhead. www.event-lighting.com.au...
- Page 4 Dimensions Lux Chart www.event-lighting.com.au...
- Page 5 Colour Wheel Open Blue Green Orange Indigo Magenta www.event-lighting.com.au...
- Page 6 Fixed Gobo Wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au...
-
Page 7: Table Of Contents
Rotating Gobo Wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Animation Wheel www.event-lighting.com.au... -
Page 8: Position
Menu Menu Description Information Address DMX address, 1-512 Runtime Unit uptime Version Software version Temperature Mainboard temperature Light source temperature Fan Speed Fan 1 speed Fan 2 speed Setting Reset Restart unit Reset to factory settings Channel Set Signal Signal source: DMX512/Artnet/Program Offline Set Home/Hold... -
Page 9: Position
DMX Chart Channel Min Name Function Pan movement Pan-fine Fine pan movement Tilt Tilt movement Tilt-fine Fine tilt movement Colour wheel 6 colours Colour arbitrary positioning Rotate left Rotate right Cyan Cyan 0..100% Magenta Magenta 0..100% Yellow Yellow 0..100% Colour temperature Fixed gobo 8 gobos... -
Page 10: Position
delay) Dimmer no delay Prism No effect Prism effect Prism rotation Prism is 0 Prism angle Rotate left Stop Rotate right Zoom Zoom Zoom-fine Fine zoom Focus Focus Focus-fine Fine focus Iris Open to close Close Iris Movement 1 Iris Movement 2 Iris Movement 3 Close Frost... -
Page 11: Position
The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. This device has one channel mode: 38, if there are several models need to be independently controlled, we just simply address first fixture at 1, and second fixture at 39, third one at 78, etc. -
Page 12: Position
• Dimming: 0 - 100% • Strobe: 0.3 – 20 Hz • Focus: Electronic Linear • Prism: 1 rotating prism with 4-facet and Frost Movement 16-bit Auto Reposition • Pan: 540° • Tilt: 270° Colour • Linear CMY and CTO •... -
Page 13: Position
• Housing Finishing: Matte Black • Cooling: Fan • Net Weight: 25 kg • Rigging: 2 x Omega Brackets with 1/4-turn Quick Locks WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
