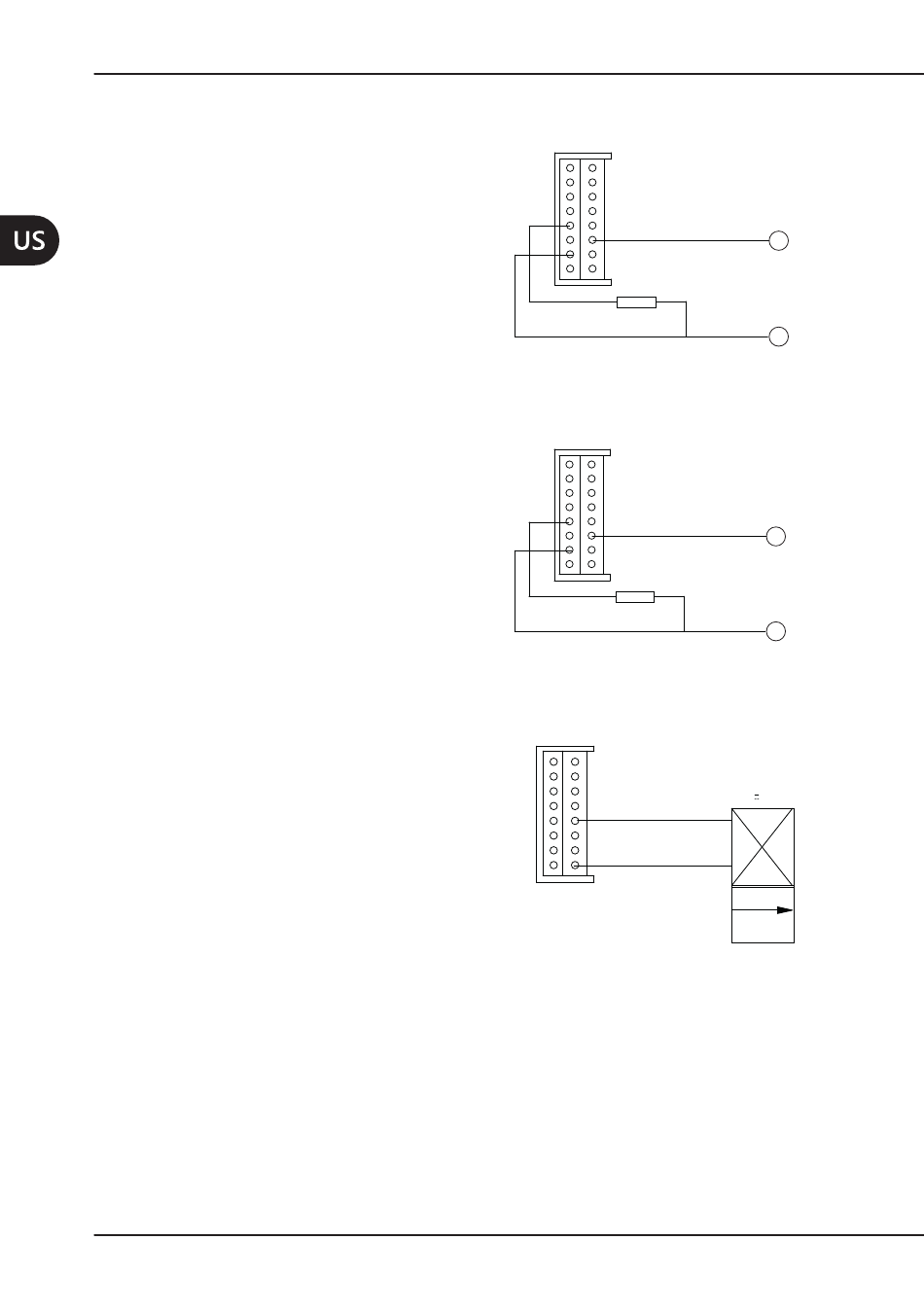

4.3.3.4 0-5 V Power Regulation
the power can be modulated with a
variable voltage between 0 and 5 Volts
applied between pins 6 and 10 (ground).
Connect a 82 kOhm, 1/8W, 1% resistance
between pins 12 and 10.
4.3.3.5 0-10 V Power Regulation
the power can be modulated with a
variable voltage between 0 and 10 Volts
applied between pins 6 and 10 (ground).
Connect a 10 kOhm, 1/8W, 1% resistance
between pins 12 and 10.
4.3.4 Solenoid Valve Control
the compact piezo LeD provides an
enabling in output for a solenoid valve
on the handpiece irrigation circuit. the
output distributes 24V with maximum
power 2.5W.
16
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
82 kOhm 1/8W, 1%
resistance
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
10 kOhm 1/8W, 1%
resistance
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
+
0-5V 1mA
-
+
0-10V 1mA
-
Solenoid valve
(optional)
24V 2,5W
