compact piezo LeD
M2 Connector Pin-Out
Pin
1
Vout handpiece
2
Neutral
Table 6 – m2 connector pin-out.
4.3.1

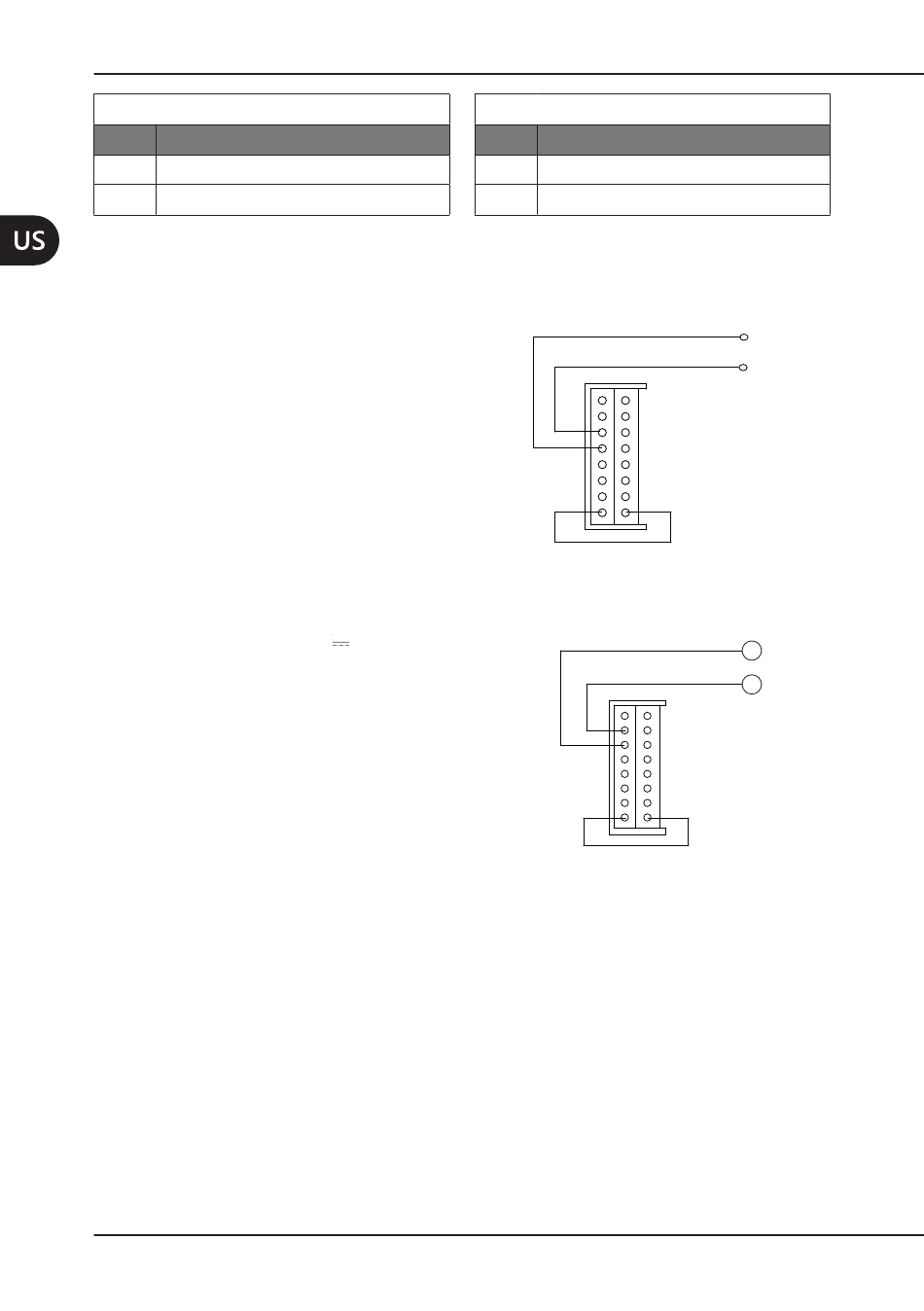

Alternate 24V Power Supply
To power the module at 24V~ 50/60 Hz
connect pins 13 and 14 (see
pagina 13
and table 5 a pagina 13).
connect pins 8 and 9 to insert the bypass
capacity present on the board to filter
any disturbances on the power supply.
observe the voltage and current values
indicated on the plate.
4.3.2
Direct 32V Power Supply
to power the module at 32V
the power supply positive on pin 14 and
the negative on pin 15.
connect pins 8 and 9 to insert the bypass
capacity present on the board to filter
any disturbances on the power supply.
observe the voltage and current values
indicated on the plate.
14
Signal
Figure 3 a
connect
M3 Connector Pin-Out
Pin
1
LeD a
2
LeD K
Table 7 – m3 connector pin-out.
16
1
15
2
14
3
13
4
5
12
11
6
7
10
8
9
16
15
14
13
12
11
10
9
Signal
~
Vin
+
-
1
2
3
4
5
6
7
8
