4.3.3 Power Regulation
the compact piezo LeD piezoelectric module
allows regulation of the handpiece power by
means of the controls on the dental unit, in

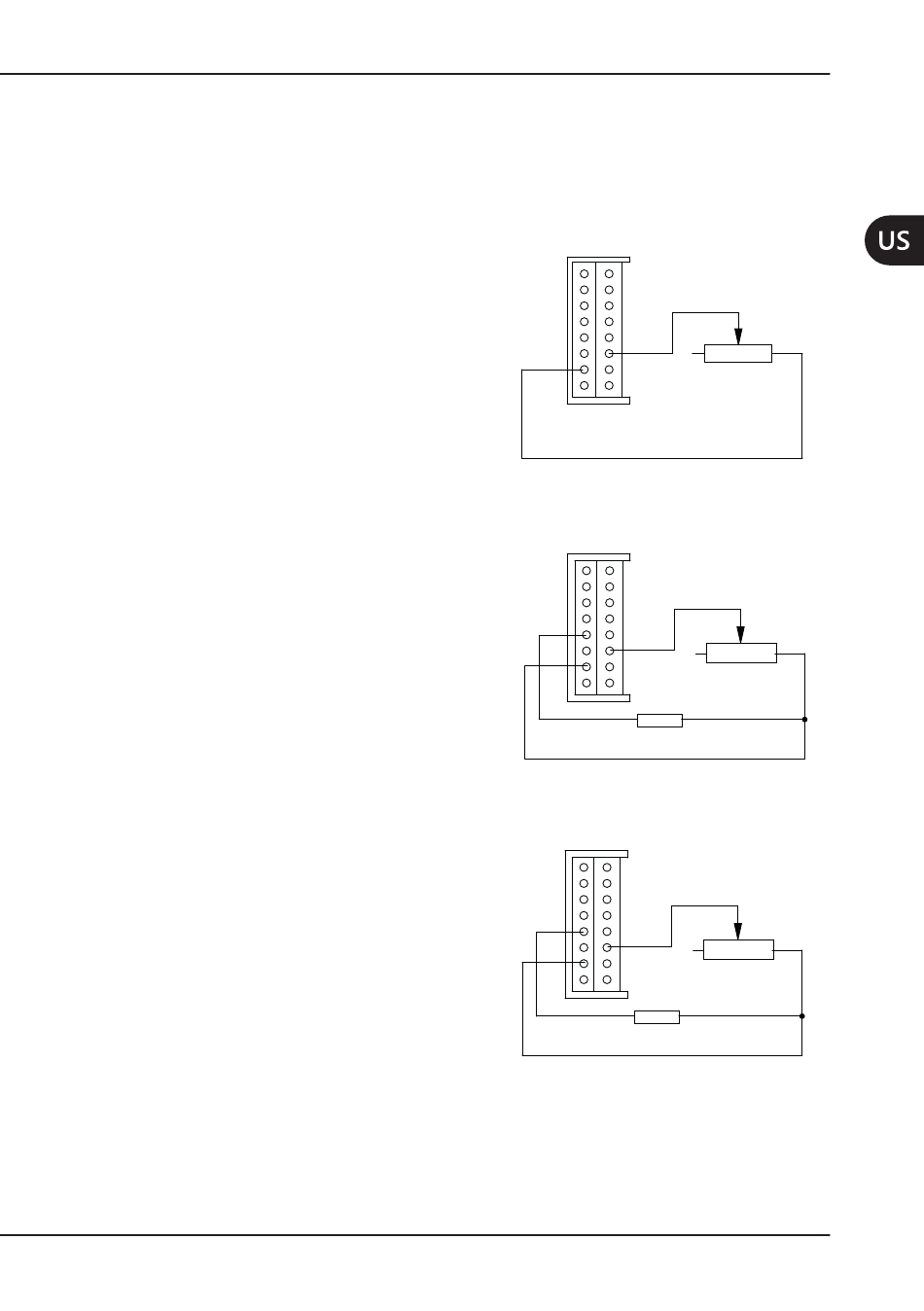

4.3.3.1 Power Regulation with 2.2 kOhm Potentiometer
connect the 2.2 kohm potentiometer
between pins 6 and 10. The maximum
power corresponds to resistance 0, and
minimum to resistance 2.2 kohm.
4.3.3.2 Power Regulation with 10 kOhm Potentiometer
connect the 10 kohm potentiometer
between pins 6 and 10 and a 20 kOhm,
1/8W, 1% resistance between pins 12 and
10.
the maximum power corresponds to
resistance 0.
4.3.3.3 Power Regulation with 4.7 kOhm Potentiometer
Connect the 4.7 kOhm potentiometer
between pins 6 and 10 and a 39 kOhm,
1/8W, 1% resistance between pins 12 and
10.
the maximum power corresponds to
resistance 0.
iNStaLLatioN
different modes explained below, covering
the needs of most dental units available on
the market.
16
1
15
2
14
3
13
4
12 5
11
6
10 7
8
9
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
20 kOhm 1/8W, 1%
resistance
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
39 kOhm 1/8W, 1%
resistance
2.2 kOhm
linear potentiometer
10 kOhm linear
potentiometer
4,7 kOhm
linear potentiometer
