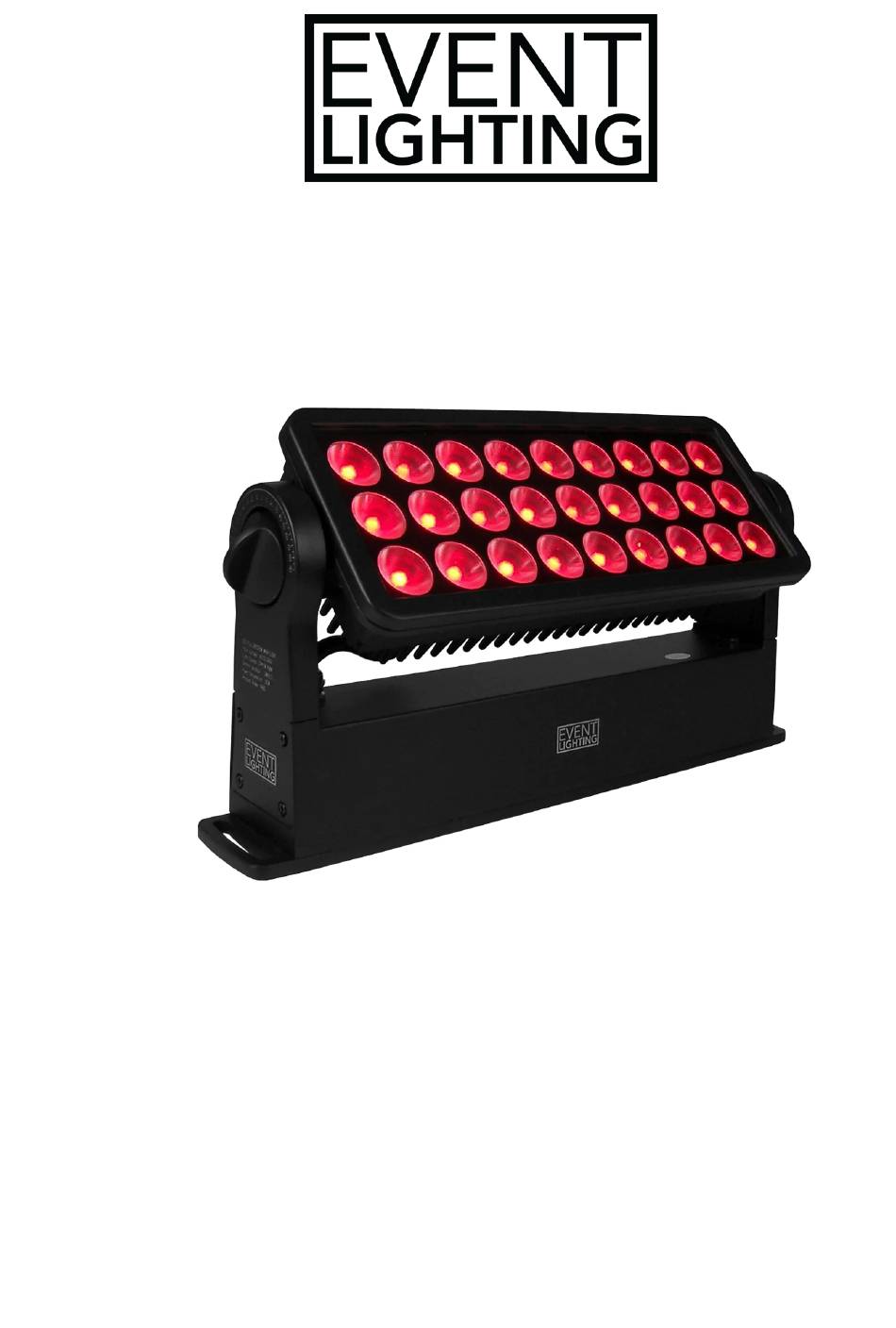

DELUGE27X15
Outdoor RGBW Wash
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: 1 (1 September 2022)
Advertisement
Table of Contents
Related Manuals for Event Lighting DELUGE27X15
Summary of Contents for Event Lighting DELUGE27X15
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 Safety Instructions Warning • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. Caution: This unit's housing may be hot during and after operation. •...
- Page 3 Dimensions Lux Chart www.event-lighting.com.au...
- Page 4 Menu Operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Move down a level. Menu Level 1 Level 2 Description DMX Address 001-512 Set DMX address DMX Channel 4 Channel Mode 4 channel DMX mode...
- Page 5 Green 000-255 Blue 000-255 White 000-255 Auto Program Auto Color Auto Fade Language English Chinese Display Normal Reverse Flip 180° Backlight Always on Off after 30 seconds of inactivity Fixture test Green Blue White Factory Settings Reset to factory settings System Info RDM UID Version...
- Page 6 DMX Chart This fixture is controlled by the universal DMX 512 protocol. The DMX address is the first channel used to receive instructions from the external controller. For independent control, each fixture must be assigned a unique address for each of its control channels. For example, this device has three channel modes: 4/7/8, if it’s set to 7 channel mode, and there are several fixtures need to be independently controlled, we just simply address first fixture at 1, and second fixture at 8, third one at 15, etc.
- Page 7 Display: 4-button 2.4-inch LCD control panel • Cooling: Fanless Housing • Materials: Aluminium • Finishing: Matte black • IP rating: IP65 • Dimensions: 465*81*240 mm • Net Weight: 6.6 kg Warranty Please refer to your local dealer or please contact Event Lighting Pty Ltd. www.event-lighting.com.au...
