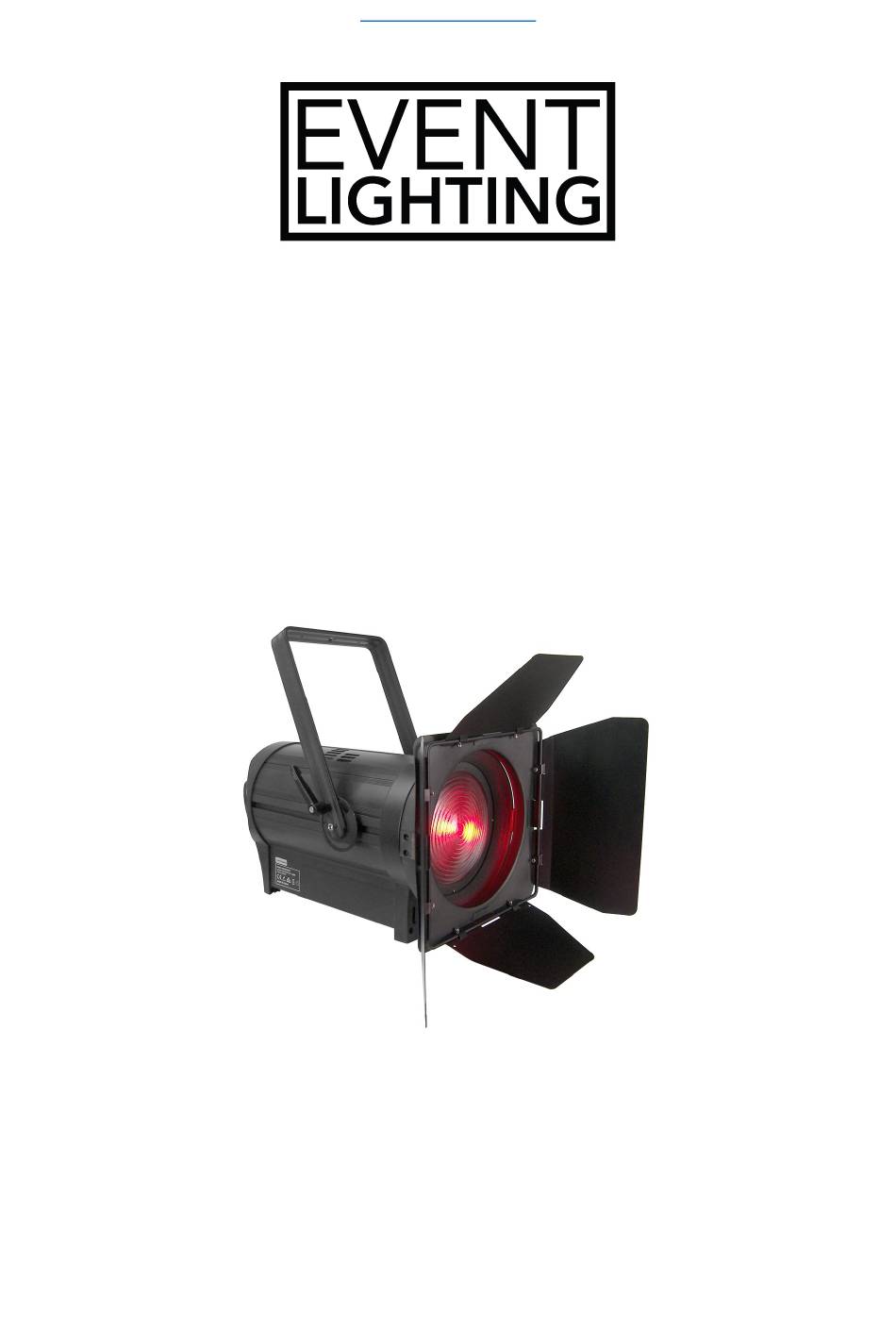

www.event-lighting.com.au
LED Fresnel
OPERA300FCF
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change
without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any
clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0
1
Advertisement
Table of Contents
Related Manuals for Event Lighting OPERA300FCF
Summary of Contents for Event Lighting OPERA300FCF
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS 1. Introduction ..................3 2. Safety instructions................4 3. Description..................5 Products features ................5 Overview ....................5 4. Installation ..................6 5. Operation..................7-8 Control board ................. 7-8 DMX modes.................. 9-10 6. Replacing the fuse................10 7. Technical specification..............11... -
Page 3: Introduction
www.event-lighting.com.au 1. Introduction Thank you for purchasing our product. Before carrying out any operations with the product, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. Please strictly follow it. The product conforms to the international standard DMX512 agreement. -
Page 4: Safety Instructions
www.event-lighting.com.au 2. Safety instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 5: Description
www.event-lighting.com.au 3. Description Product features • Made by Aluminum which makes the lamp solid • Good performance of cooling system with the quiet fan • DMX controlled operation, possible work with any commercial DMX512 controller • Rail-type hanging bracket, bracket position can be adjusted •... -
Page 6: Installation
www.event-lighting.com.au 4. Installation This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. Overhead rigging The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1hour without any harming deformation. -
Page 7: Operation
www.event-lighting.com.au This device has an auto-switching power supply work with input voltage range of 100-240V AC, 50/60Hz. Link up to the maximum 15A, Do not exceed this. 5. Operation Control board Press the Menu until one of the following had been displayed: Menu 1st Menu 2nd Menu... - Page 8 www.event-lighting.com.au ZOOM ZOOM 0 - 255 Zoom LINEAR SQUARE LAW CURVE INV SQUARE S-CURVE Fade off SPEED MEDIUM Medium HIGH High 1000Hz 1200Hz PERSONALITY 1500Hz FREQUENCY 2000Hz 4000Hz 8000Hz FULL Fans max Fan control FAN MODE AUTO temperature SILENT Hold DMX HOLD Blackout VERSION...
-
Page 9: Dmx Modes
www.event-lighting.com.au coming to normal when the temperature gets to normal. DMX Modes DMX512 Channel table Modes Value function 1-CH 3-CH 6-CH 8-CH 10-CH 12-CH 18-CH 10H-CH 000 - 255 Master Dimmer 000 - 255 Master Dimmer fine 000 - 255 000 - 255 Red fine 000 - 255... -
Page 10: Fuse Replacement
www.event-lighting.com.au 026 - 030 4500K 031 - 035 5000K 036 - 040 5600K 041 - 045 6000K 046 - 050 6500K 051 - 055 7000K 056 - 060 8000K 061 - 065 10000K 066 - 070 Red dimmer 071 - 075 Green dimmer 076 - 080 Blue dimmer... -
Page 11: Technical Specification
Control system: DMX512 signal Display Screen: 4-Button OLED Screen IP Rating: IP20 Min. Distance to Illuminated object: Ambient Temp.: -15℃～35℃ Product size: 410x463x214mm Weight: 10kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
