Connect Scanner - Microtek ScanMaker V6USL Installation Manual

1. Unpack scanner
Open your scanner package and check the
components as stated in your packing list. Do not
install any of the software until the hardware has
been installed. Before proceeding any further, check
that you have the items listed on the packing list. If
any item is missing, call Customer Service at 800-
654-4160.
Your Microtek ScanMaker V6

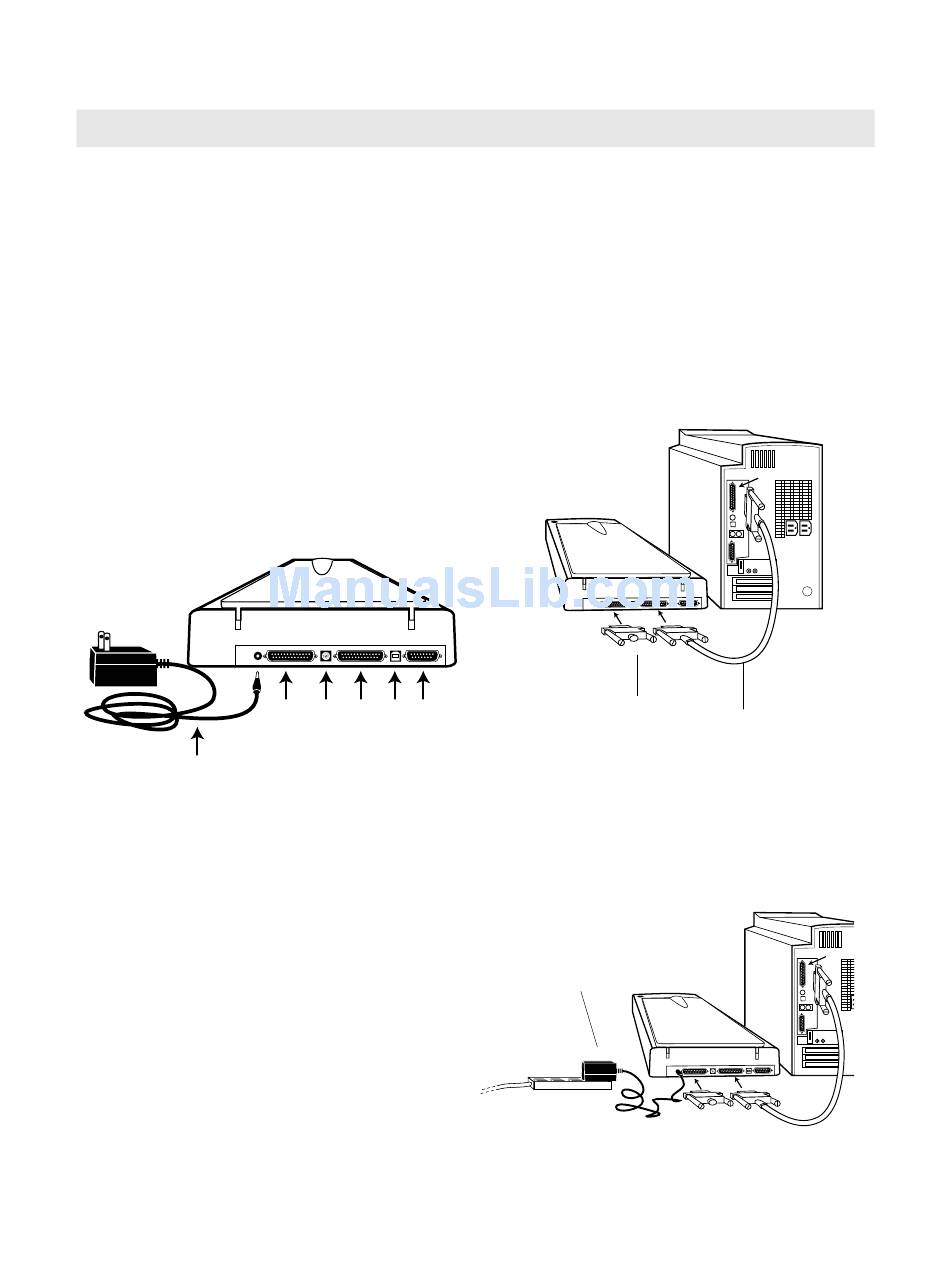

built-in interfaces: SCSI and USB. See the graphic
below to locate the different ports on the back of
the scanner, as well as the SCSI ID dial and the
scanner accessory port.
Power
Adapter
Note: Make sure the SCSI ID number for your
scanner, which is preset to 6, does not conflict with the
SCSI IDs of the other devices on your SCSI chain. If
you need to change the SCSI ID on your scanner, turn
the dial and choose a SCSI ID number from 0 to 6
(do not use 7, 8 or 9).
SCSI Installation on the Macintosh
comes with two
USL
SCSI SCSI SCSI USB Accessory
Port 1 ID Dial Port 2 Port Port

2. Connect scanner

1. Turn off your computer.
2. Get the SCSI cable. Plug one end of the SCSI
cable into the back of the Macintosh. Then plug
the other end of the SCSI cable into one of the
SCSI ports at the back of the scanner.
Next, place the terminator on the other SCSI
port at the back of the scanner.
Terminator
3. Connect the power adapter to your scanner, and
plug the other end into a wall outlet or power
source. This will turn on the scanner. The green
light on the front of the scanner will blink for a
few seconds and then stay on solid.
Power adapter
6
SCSI cable
