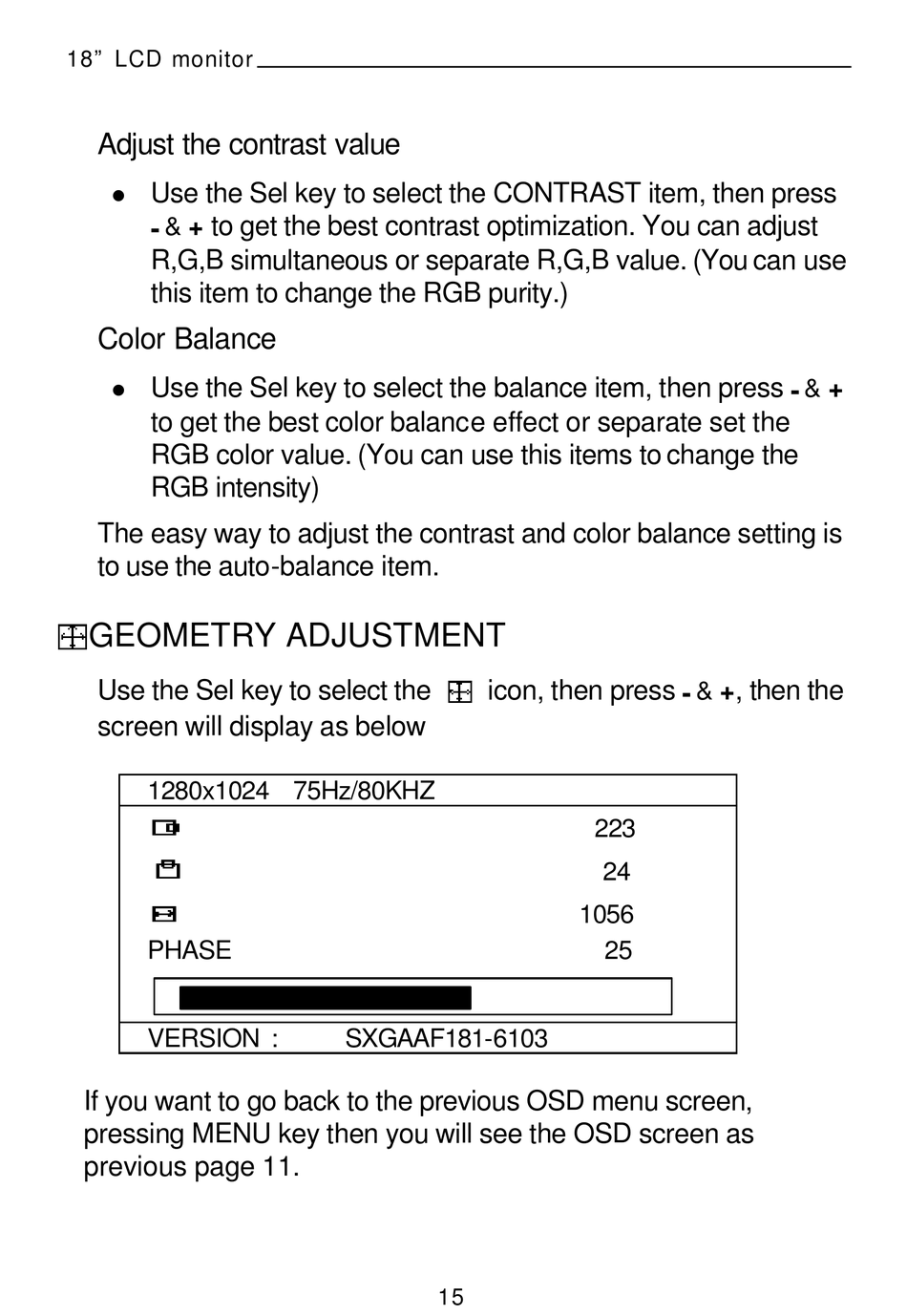

Geometry Adjustment - Microtek C893 User Manual

18" LCD monitor
Adjust the contrast value
Use the Sel key to select the CONTRAST item, then press
l
to get the best contrast optimization. You can adjust
& +
-
R,G,B simultaneous or separate R,G,B value. (You can use
this item to change the RGB purity.)
Color Balance
Use the Sel key to select the balance item, then press -
l
to get the best color balance effect or separate set the
RGB color value. (You can use this items to change the
RGB intensity)
The easy way to adjust the contrast and color balance setting is
to use the auto-balance item.

GEOMETRY ADJUSTMENT

Use the Sel key to select the
screen will display as below
1280x1024 75Hz/80KHZ
PHASE
VERSION :
If you want to go back to the previous OSD menu screen,
pressing MENU key then you will see the OSD screen as
previous page 11.
icon, then press -
SXGAAF181-6103
15
, then the
& +
223
24
1056
25
& +
