VLT Ea4 Parallel Drive Modules
Operating Guide
Electrical Installation
4.
Set switches A53 and A54 to select the signal type (U = voltage, I = current). See
Illustration
20.
Example

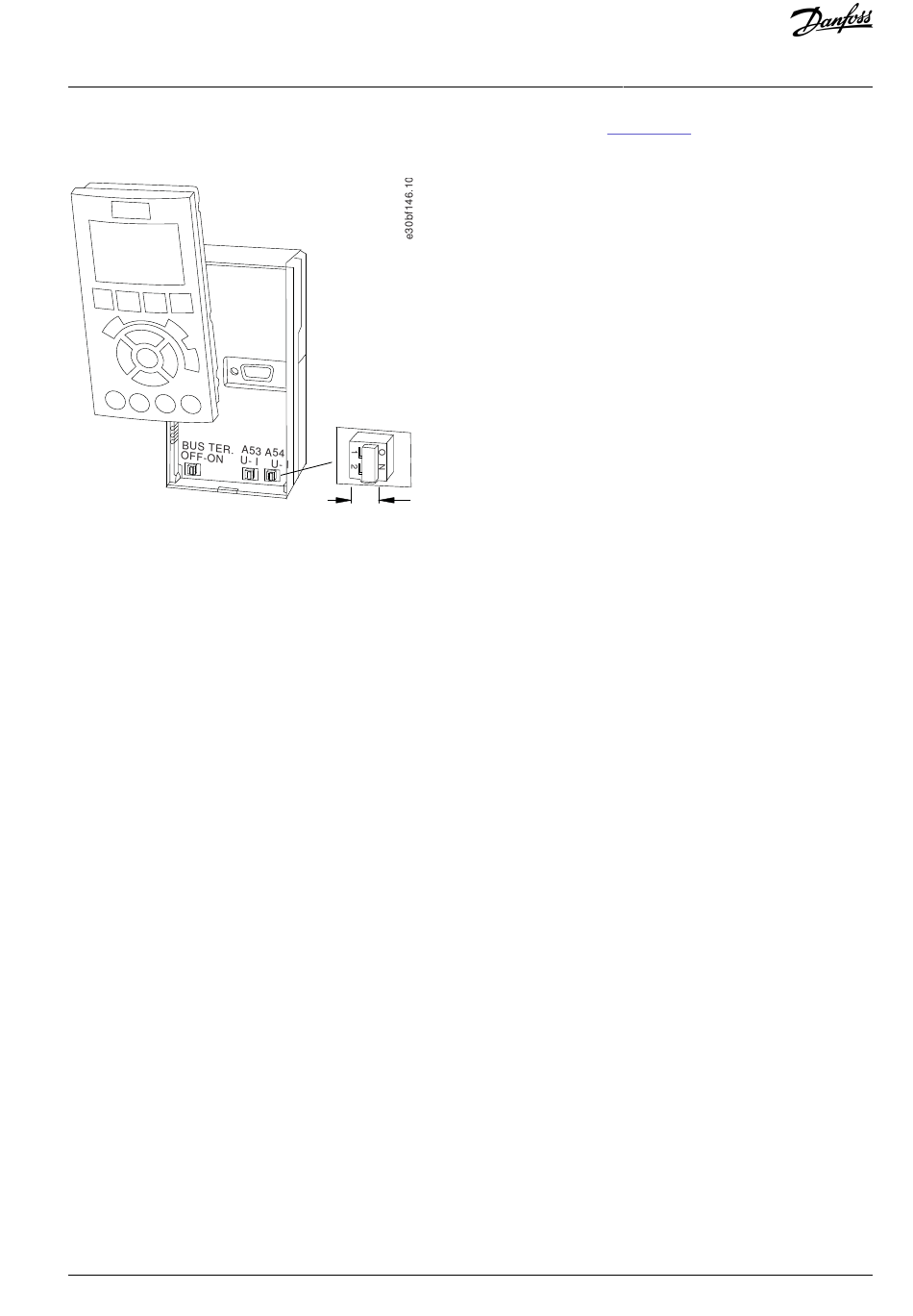

Illustration 20: Location of Switches A53 and A54
Danfoss A/S © 2023.01
AQ434333248451en-000101 / 130R1286 | 35
