VLT Ea4 Parallel Drive Modules
Operating Guide
Terminal Parameter
53 Parameter group 6-1* Analog In-
put 1
54 Parameter group 6-2* Analog In-
put 2
55 –

5.11.2 Relay Terminals

The relay terminals are on the top plate of the drive module. See
terminal of drive module 1 (the drive module on the far left) to the terminal blocks on the control shelf.
RELAY 1 RELAY 2
01 02 03 04 05 06

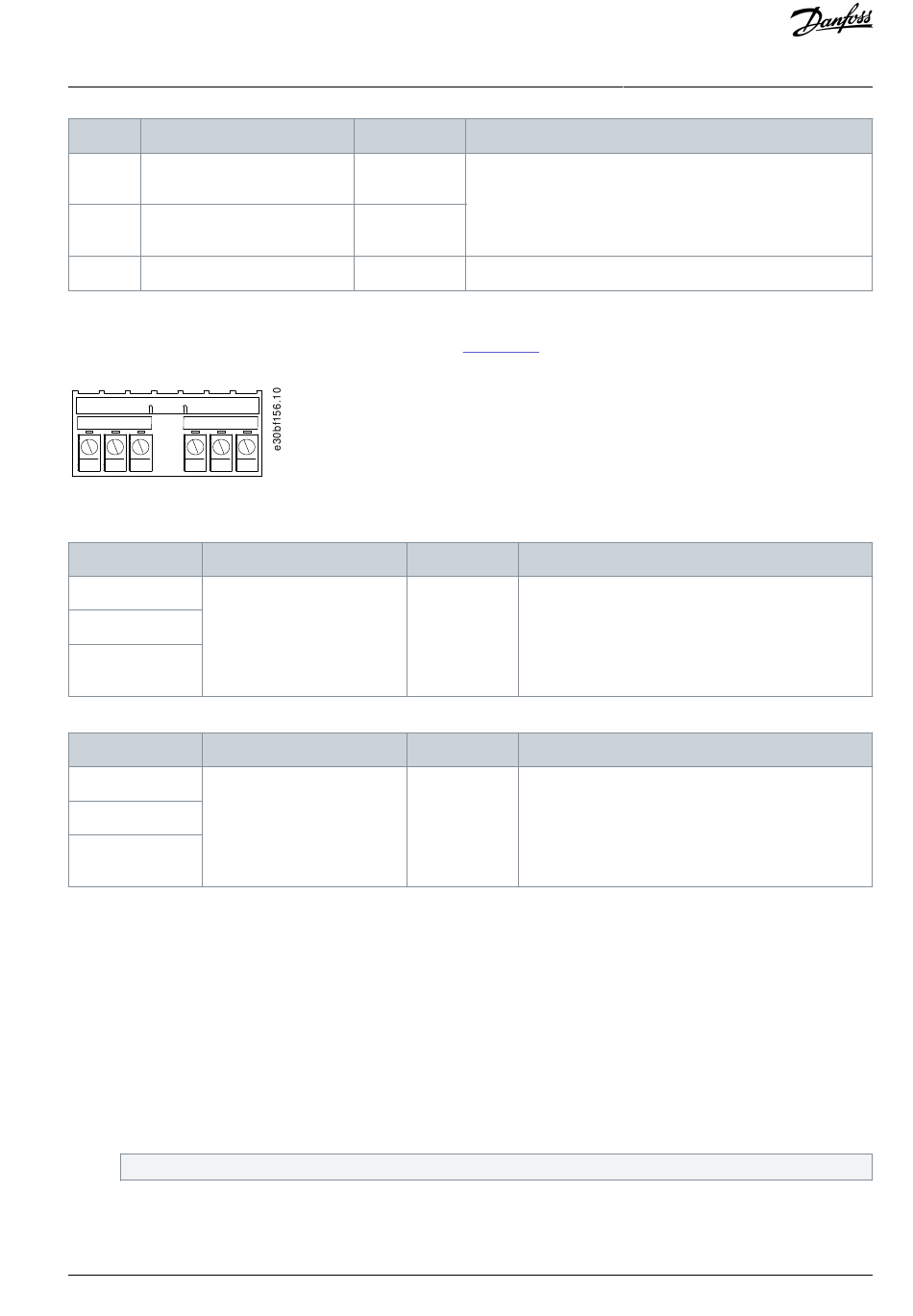

Illustration 15: Relay 1 and Relay 2 Terminals
Table 6: Relay 01 Terminal Descriptions
Terminal
01: common
Parameter 5-40 Function Relay
02: normally open
03: normally
closed
Table 7: Relay 02 Terminal Descriptions
Terminal
04: common
Parameter 5-40 Function Relay
05: normally open
06: normally
closed

5.11.3 Routing Control Cables

Make sure to use the provided wire pathway when routing the control wires from the bottom of the drive system cabinet to the
control terminal.
Procedure
1. Tie down and route all control cables at the bottom of the enclosure.
2.
Isolate control cables from high-power cables in the drive.
3. Connect the shields in a proper way to ensure optimum electrical immunity.
4.
When the drive is connected to a thermistor, ensure that the thermistor control cable is shielded and reinforced/double
insulated. A 24 V DC supply is recommended.
5. Connect the control cables to the relevant options on the control card. For more detail, see the relevant fieldbus instruc-
tions. The fieldbus cable must be tied down and routed along with the other control cables inside the unit.
All control terminals are on the control shelf below the LCP.
Danfoss A/S © 2023.01
Default setting
Reference
Feedback
–
Parameter Default setting
[0] No operation
[0]
Parameter Default setting
[0] No operation
[1]
Description
Analog input. For voltage (V) or current (mA).
Common for analog input.
Illustration 4. Use an extended wiring harness to connect the relay
Description
Form C relay output. For AC or DC voltage and resistive
or inductive loads.
Description
Form C relay output. For AC or DC voltage and resistive
or inductive loads.
AQ434333248451en-000101 / 130R1286 | 31
Electrical Installation
