2 Receiving the Drive

2.1 Verifying the Shipment and the Contents

Items supplied can vary according to product configuration.
• Make sure that the items supplied and the information on the nameplates correspond to the order confirmation.
• Visually check the packaging and the drive modules for damage caused by inappropriate handling during shipment. File any
claim for damage with the carrier. Retain damaged parts for clarification.
Removing the nameplates can result in loss of warranty.
VLT
AutomationDrive
R
www.danfoss.com
1
T/C: FC-302N710T5E00P2BGC7XXSXXXXAXBXCXXXXDX
2
P/N: 134X4109
3
710 kW / 1000 HP, High Overload
4
IN: 3x380-500V 50/60Hz 1227/1129 A
5 OUT: 3x0-Vin 0-590Hz 1260/1160 A
800 kW /1200 HP, Normal Overload
IN: 3x380-500V 50/60Hz
OUT: 3x0-Vin 0-590Hz 1460/1380 A
CHASSIS (OPEN TYPE) / IP00
Tamb. 45˚ C/113˚ F at Full Output Current
Max. Tamb. 55˚ C/131˚ F w/ Output Current Derating
ASSEMBLED IN USA
CAUTION - ATTENTION:
See manual for special condition / prefuses
Voir manuel de conditions speciales / fusibles
6
WARNING - AVERTISSEMENT:
Stored charge, wait 40 min.
Charge residuelle, attendez 40 min. `

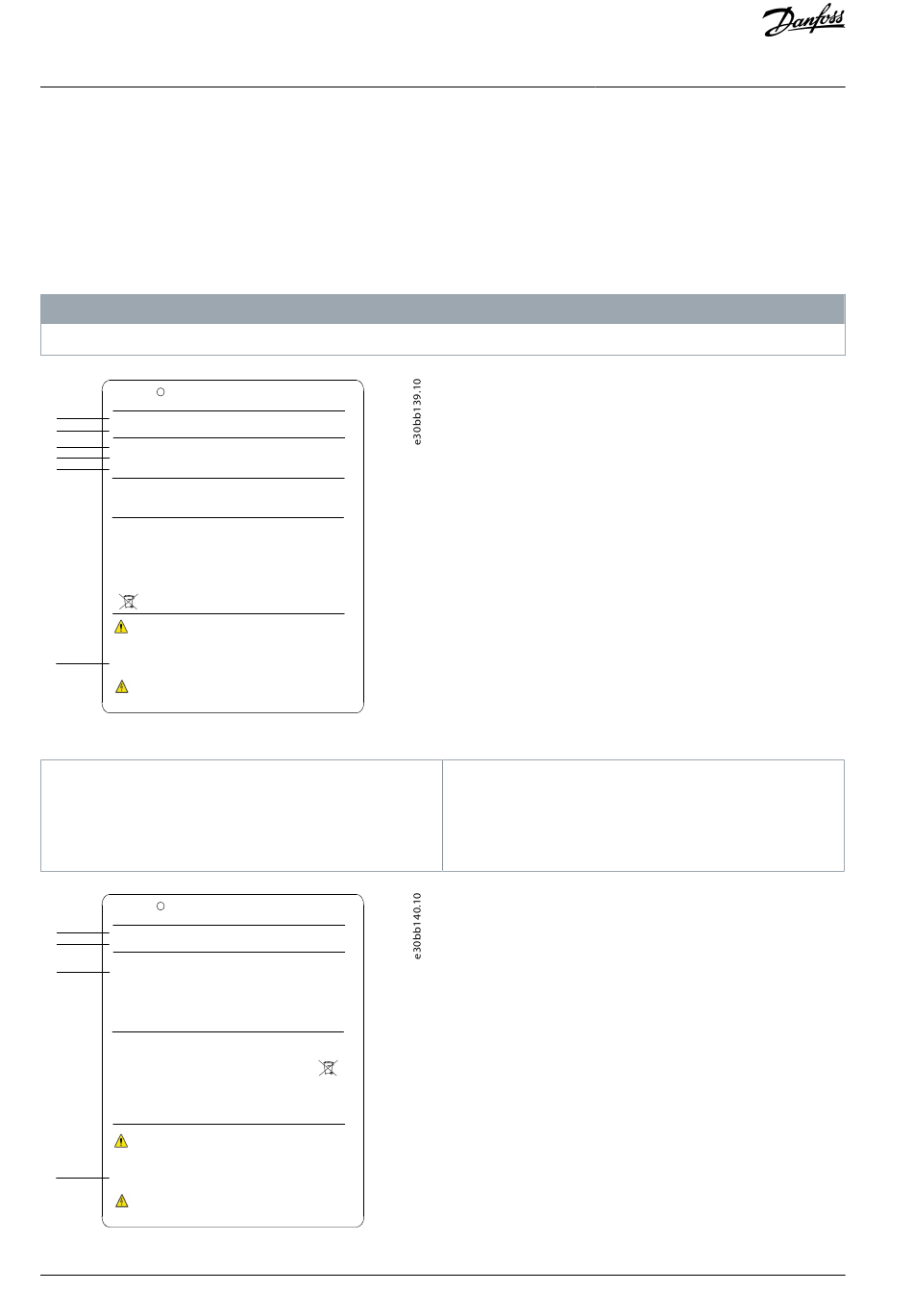

Illustration 1: Example of the Top-level Drive System Nameplate Found on Drive Module Exterior
1 Typecode
2 Part number and serial number
3 Power rating
VLT
AutomationDrive
R
www.danfoss.com
1
T/C: FC-BDMN250T5E00H2SXC7XXSXXXXAXBXCXXXXDX
2
P/N: 178N0025
Intended use - The Individual Base Drive
3
Modules are intended for use in Parallel Drive
Module system only. Specific electrical
ratings are not applicable. Name plate of
Parallel Drive Module system should
be referred for actual drive ratings.
CHASSIS (OPEN TYPE) / IP00
ASSEMBLED IN USA
CAUTION - ATTENTION:
See manual for special condition / prefuses
Voir manuel de conditions speciales / fusibles
4
WARNING - AVERTISSEMENT:
Stored charge, wait 40 min.
Charge residuelle, attendez 40 min. `
Illustration 2: Example of the Drive Module Nameplate in the Interior Beneath the Local Control Panel
10 | Danfoss A/S © 2023.01
N O T I C E
SN: 123456H123
1422/1344 A
`
SN: 123456H123
`
4 Input voltage, frequency, and current
5 Output voltage, frequency, and current
6 Discharge time
AQ434333248451en-000101 / 130R1286
Receiving the Drive
