F-SM-MM-05
INSTALLATION
Installing the Cable
FIBER
1.
Locate or build fiber cable with male, two-stranded TX to RX connectors
installed at both ends.
2.
Connect the fiber cables to the Media Converter as described:
•
Connect the male TX cable connector the female TX port.
•
Connect the male RX cable connector to the female RX port.
3.
Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
•
Connect the male TX cable connector the female RX port.
•
Connect the male RX cable connector to the female TX port.

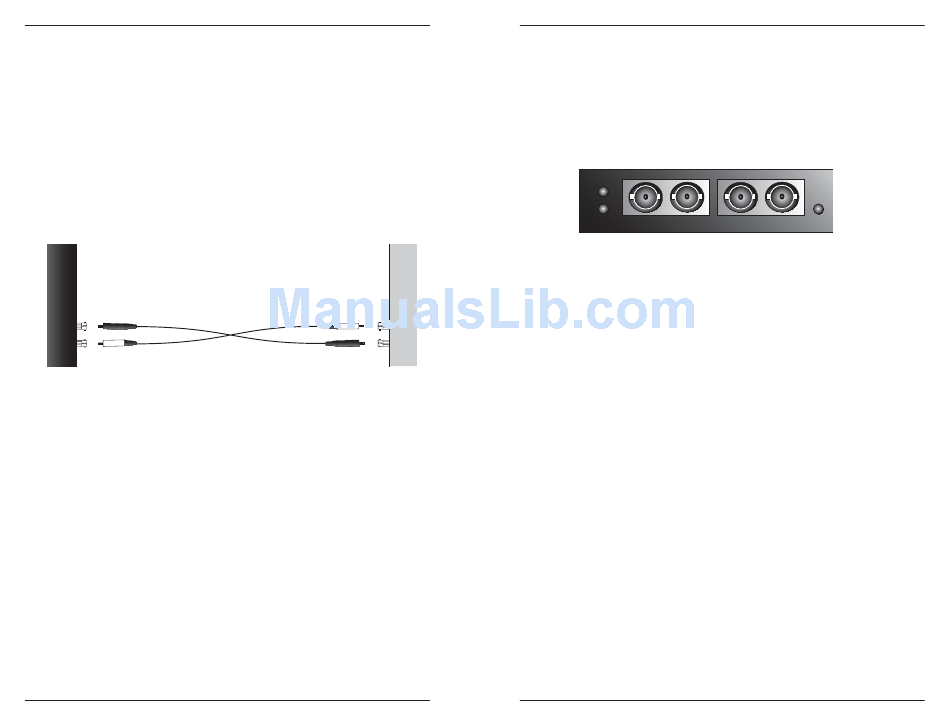

Connect the fiber cable
to the Media Converter
as shown.
RX
TX
Power the Media Converter
AC
1.
Install the power adapter cord to the back of the Media Converter.
2.
Connect the power adapter plug to AC power.
3.
Verify that the Media Converter is powered by observing the illuminated
LED power indicator light.
DC
Consult the User's Guide for the Transition Networks SPS1872-xx DC External
Power Suppy for powering the Media Converter.
2
Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)
Connect the fiber cable
to the other device
(media converter,
hub, etc.) as shown
RX
TX
OPERATION
Using Status LEDs
Use the status LEDs to monitor the Media Converter operation in the network.
Pwr
Steady LED indicates connection to external AC or DC power.
Link (left)
Steady LED indicates multimode fiber link connection.
Link (right)
Steady LED indicates singlemode fiber link connection.
(TX)
(RX)
Pwr
Link
Multimode
techsupport@transition.com -- Select the "Transition Now" Link for a Live Web Chat
(TX)
(RX)
Link
Singlemode
3
