Transition Networks F-SM-MM-05 User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS

Case dimensions
3.9" x 3.0" x 1.0"
Maximum number of
media converters in series:
Two (2)
Environment
Temperature:
Humidity
Altitude
Warranty
Lifetime

Power Supply Requirements

Replace power supply with only the equivalent
input rating (see below) and output rating (regulated 9VDC at 0.5 A).
TN PN Requirement
3517 240 volts, 50 hertz
3516 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3515 240 volts, 50 hertz

Compliance Information

UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1997, 2002 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(99mm x 76mm x 25mm)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
33063.B

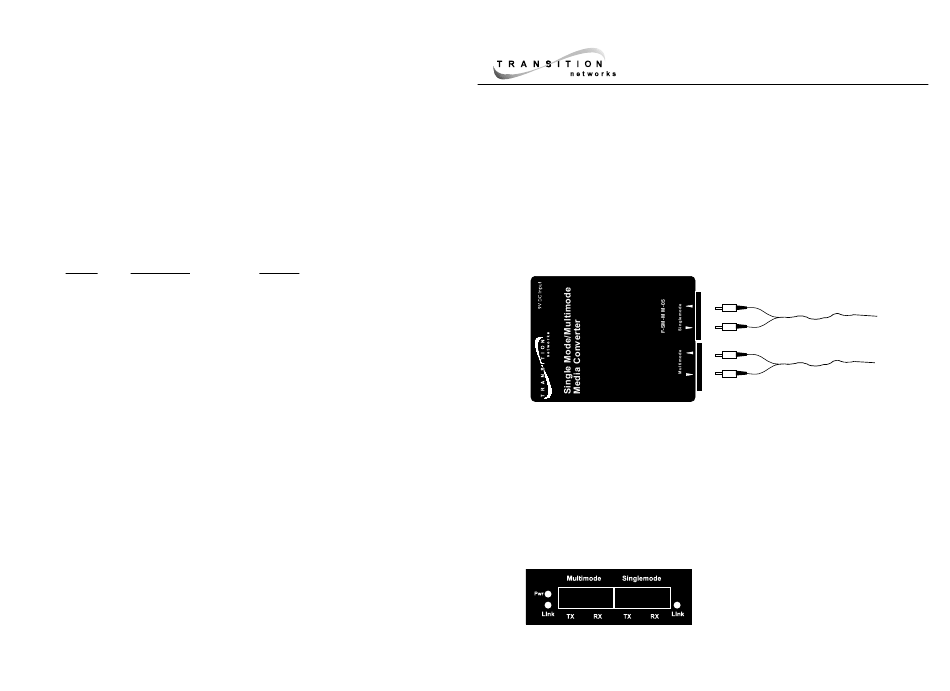

10Mb/s Ethernet™ OR 16Mb/s Token Ring
Single Mode/Multimode Media Converter
F-SM-MM-05
USER'S GUIDE
The protocol-independent TRANSITION Networks media converter, F-SM-MM-05, is
designed for installation EITHER in a 10Mb/s Ethernet environment OR in a 16Mb/s
Token Ring environment.
The F-SM-MM-05 media converter provides an ST fiber RX (receive) and TX (transmit)
connector to 1300nM singlemode fiber-optic cable and an ST fiber RX and TX
connector to 850nM multimode fiber-optic cable. Fiber's low signal loss and high
resistance to radio frequency noise allow extended distances between devices (up to
2 kilometers for multimode, up to 20 kilometers for singlemode).
The media converter functions in half-duplex mode or, when connected to devices
capable of full-duplex connectivity, in full-duplex mode.
Status LEDs on the connector side of the media converter provide the following
information:
Singlemode Fiber
Multimode Fiber
Pwr (Power) Illuminated green LED
indicates connection to external
AC power.
Link Steady green LED indicates that
fiber link is connected properly.
