Transition Networks SAPTF33 series User Manual

Pots to fiber optic stand alone media converter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Enlarged version

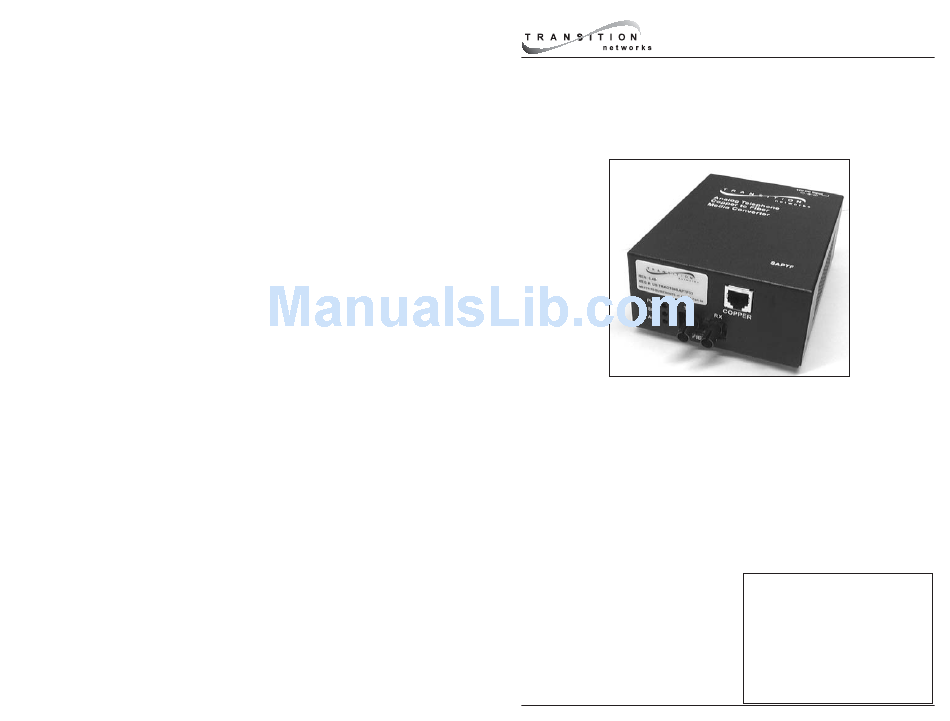

POTS to Fiber Optic
Stand Alone Media Converter
SAPTF33xx-1xx
User's Guide

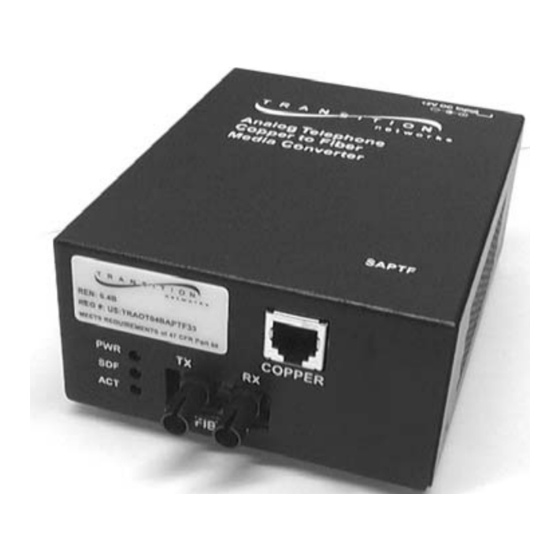

Transition Networks SAPTF33xx-1xx POTS to fiber-optic media converter connects
central-office voice-grade signals to distant POTS (Plain Old Telephone Service)
equipment using standard telephone signaling. It can extend, over fiber, the
distance between two voice path communication devices by up to 40 km using
either single mode or multimode fiber cable.
The SAPTF33xx-1xx provides audio transmission, caller ID, ringing at the distant
end and automatic ring-down. Two units are required to implement an end-to-end
system. An RJ-11 female connector provides the electrical interface between the
media converter and the telephone device.
NOTE: The the chassis version of the
media converter is CAPTF33xx-1xx. For
more information, see the CAPTF33xx-
1xx
user's
guide
on-line
www.transition.com.
Installation . . . . . . . . . . . . . . . . . .5
Operation . . . . . . . . . . . . . . . . . . .9
Cable Specifications . . . . . . . . . .11
Technical Specifications . . . . . . .12
Troubleshooting . . . . . . . . . . . . .13
Consumer Information . . . . . . . .14
Compliance Information . . . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAPTF33 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks SAPTF33 series

Summary of Contents for Transition Networks SAPTF33 series

  • Page 1: Table Of Contents

    Stand Alone Media Converter SAPTF33xx-1xx User’s Guide Transition Networks SAPTF33xx-1xx POTS to fiber-optic media converter connects central-office voice-grade signals to distant POTS (Plain Old Telephone Service) equipment using standard telephone signaling. It can extend, over fiber, the distance between two voice path communication devices by up to 40 km using either single mode or multimode fiber cable.
  • Page 2 SAPTF33xx-1xx Unit A - SAPTF33xx-100 Unit B - SAPTF33xx-110 Unit A (SAPTF33xx-100) connects to a Central Office (CO) telephone line or a Unit B (SAPTF33xx-110), the reciprocal unit to unit A, connects to a telephone PBX (Private Branch Exchange). It mimics a telephone device (Line-Side FXS) and device and mimics a Central Office (Customer-Side FXO).

  • Page 3: Saptf33Xx-1Xx In The Network

    SAPTF33xx-1xx SAPTF33xx-1xx in the Network Installation Standard Configuration CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the jumpers. Failure to observe this caution could One Unit A device (SAPTF33xx-100) and one Unit B device (SAPTF33xx-110) result in damage to, and subsequent failure of, the media converter. are required for the standard configuration.

  • Page 4: Installation

    SAPTF33xx-1xx Installation Installation -- Continued -- Continued Grounding the Media Converter Installing the Cable -- Standard Configuration The SAPTF33xx-1xx single-slot chassis comes equipped with grounding lugs NOTE: Unit B MUST be configured for Standard Configuration (see page 4). located on the back panel. They require a grounding conductor wire terminated with a two-hole, compression-type, grounding connector.

  • Page 5: Operation

    Connect the male RX cable connector to the female RX port. LED power indicator light. Unit B Unit B Consult the user’s guide for the Transition Networks SPS1872-xx DC external power supply for powering the media converter. Status LEDs Use the status LEDs to monitor the SAPTF33xx-1xx media converter operation Connect the fiber cables to the second Unit B (SAPTF33xx-110) as in the network.

  • Page 6: At: Cable Specifications

    SAPTF33xx-1xx Cable Specifications Operation - Continued The physical characteristics must meet or exceed FCC part 68 specifications. Loop-Start Operation Copper Cable -- Category 1 Loop-Start Service -- commonly known as “Plain Old Telephone Service” Either shielded (STP) or unshielded (UTP) twisted-pair is acceptable. (POTS) -- is the primary analog signaling method used between telephone Gauge: 24 to 22 AWG...

  • Page 7: Rj-11C Connector Specifications

    RX and TX ports, respectively, on the second media Technical Specification converter. • Contact Technical Support: US/Canada: 1-800-260-1312, For use with Transition Networks Model SAPTF33xx-1xx or equivalent International: 00-1-952-941-7600. Standards FCC Part 68, TBR21 Dimensions 3.6" x 4.5" x 1.8" (91 mm x 115 mm x 45 mm) •...

This manual is also suitable for:

Saptf3311-100Saptf3313-100Saptf3314-100Saptf3315-100Saptf3329-100Saptf3329-101 ... Show all
