2 Safety notes

2.1 Correct use
Safety in operation is only guaranteed if the "Flypass
set" is used correctly.
The "Flypass set" is installed in heating and cooling
systems with closed water circuit (e.g. central heating
systems, fan coil units, chilled ceilings, fan convectors
etc.).
Any use of the "Flypass set" outside the above
applications will be considered as non-compliant and
misuse. Claims of any kind against the manufacturer
and/or his authorised representatives due to damages
caused by incorrect use cannot be accepted.
The observance of the installation and operating
instructions is part of the compliance terms
2.2 P ossible dangers at the installation location
and during transport
The case of an external fire has not been taken into
consideration when constructing the "Flypass set".
!
WARNING
Heavy product!
Risk of injury! Wear suitable protective clothing (e.g.
safety shoes) during installation and use safety devices.
External components like handwheels or pressure
test points must not be misused for the absorption
of external forces, e.g. as carrying handle or connection
point for lever tools etc.
Hot or cold surfaces!
Risk of injury! Do not touch without safety gloves.
The valve may get very hot or cold during operation.
Sharp edges!
Risk of injury! Only touch with safety gloves. Threads,
bore holes and edges are sharp.
Small components!
Risk of ingestion! Store and install the "Flypass set"
out of reach of children.
Allergies!
Health hazard! Do not touch the "Flypass set" and
avoid any contact if allergies against the used materials
are known.
3 Transport, storage and
packaging
3.1 Transport inspection
Upon receipt check delivery for any damages caused
during transit and for completeness.
Any damage must be reported immediately upon
receipt.
3.2 Storage
The "Flypass set" must only be stored under the
following conditions:
– Do not store in open air, keep dry and free from dust.
– Do not expose to aggressive fluids or heat sources.
– Protect from direct sunlight and mechanical agitation.
– Storage temperature: –20 °C up to +60 °C
Max. relative humidity of air: 95 %
3.3 Packaging
Packaging material is to be disposed of in an
environmentally friendly manner.
4 Technical data
4.1 Performance data

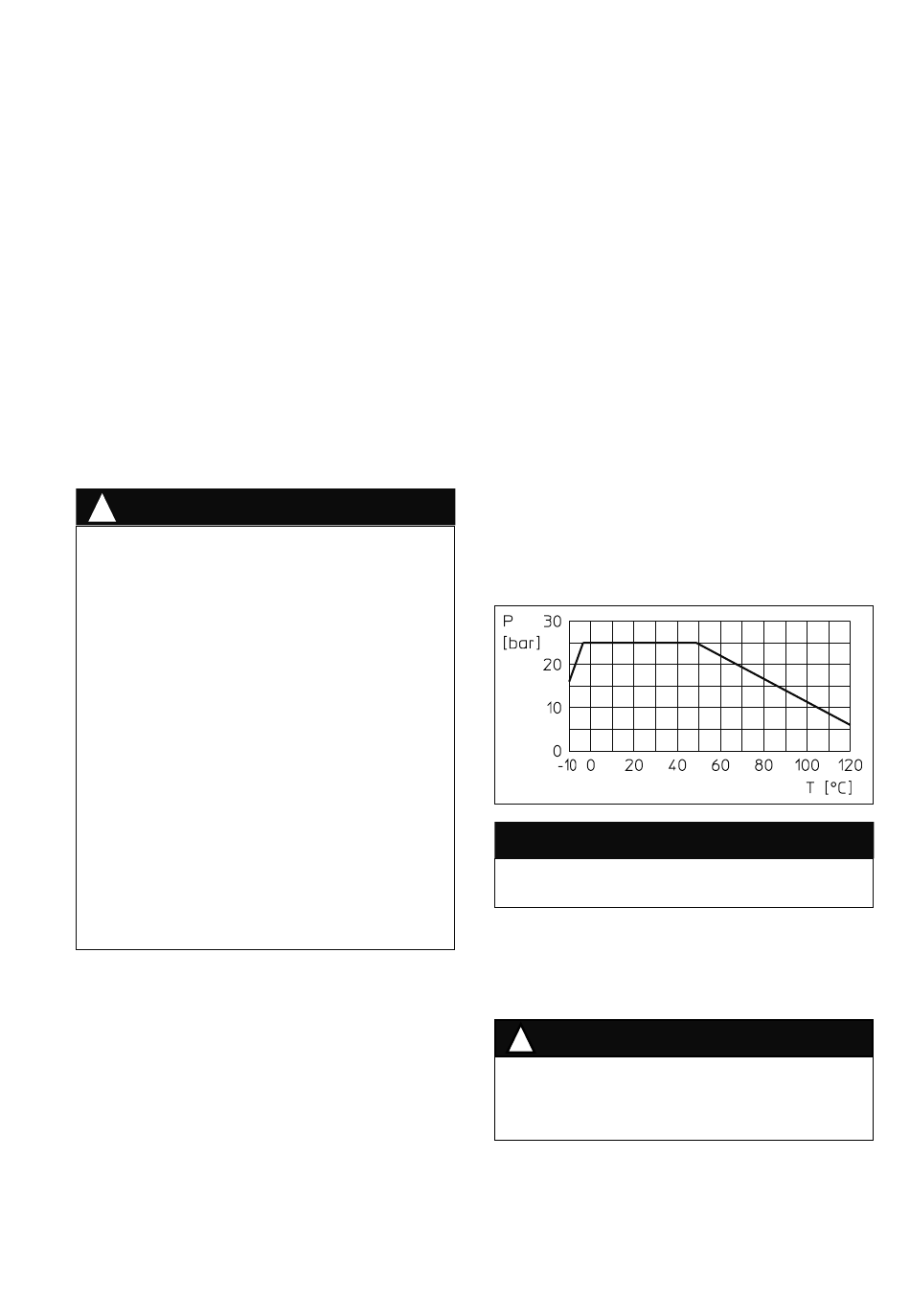

Pressure-temperature-chart
NOTICE
Prevent formation of ice! Formation of ice may
cause damage to the pipework and components.
Fluids: Non aggressive, harmless fluids (e.g. water
and suitable water and glycol mixtures according to
VDI 2035/ÖNORM 5195). Not suitable for steam, oily
and aggressive fluids.
!
DANGER
Suitable measures (e.g. safety valves) have to be
taken to ensure that the maximum operating pres-
sures and the maximum and minimum operating
temperatures are not exceeded or undercut.
