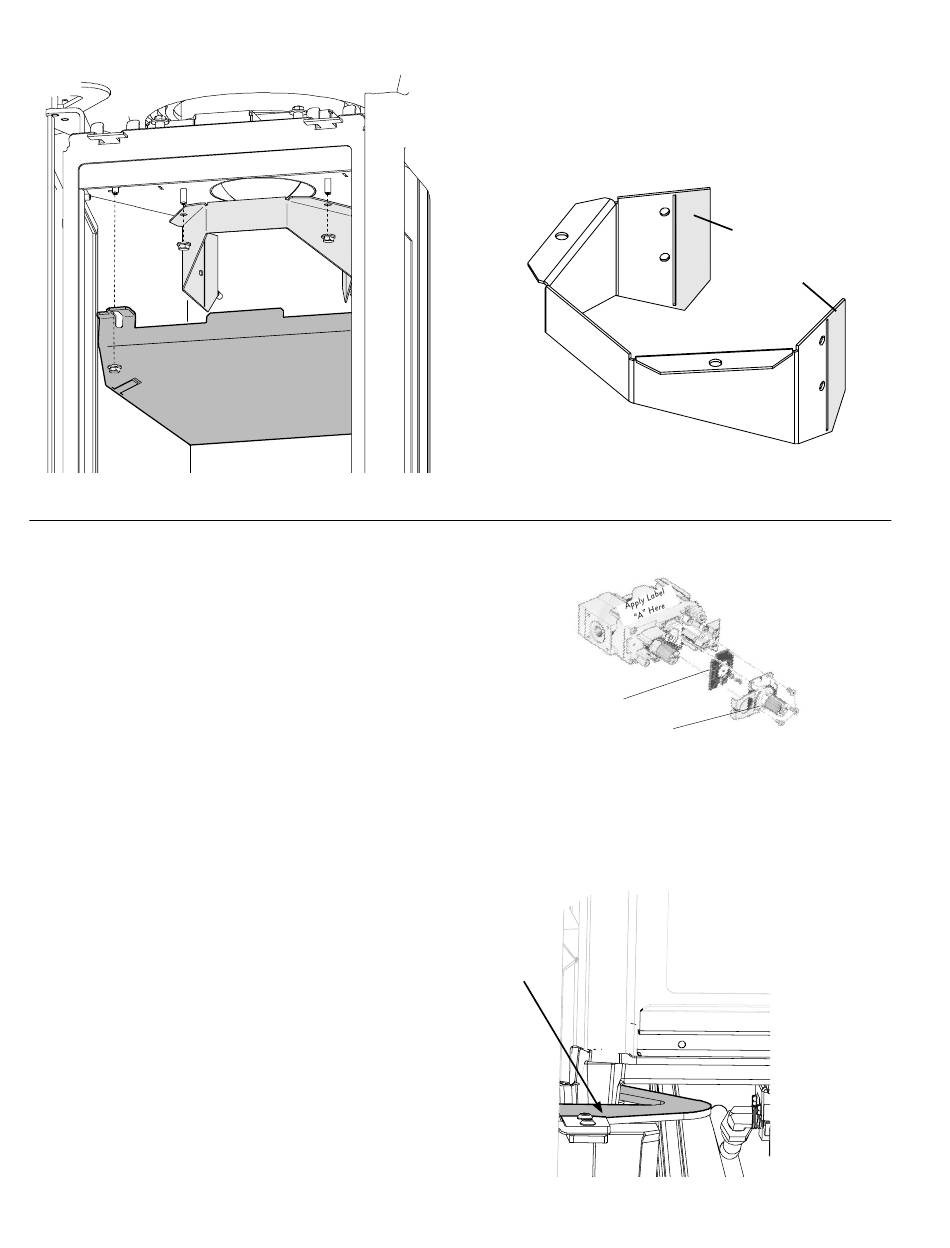

Exhaust Baffle
Figure 7.4. Upper Baffle, LP conversion.
12. Apply the identification labels to the stove where they can
be seen by a service person.
• Label A: apply to the Lower Door Hinge. Fig. 7.6.
• Label B: apply to the designated field on the stove rating
plate stored under the gas valve in the Control Compartment.
• Small Conversion Label: apply to valve.
13. Reassemble the stove and apply gas to the system.
14. Leak Check: Check for leaks using a soapy water solution or
digital gas detector.
CHECK FOR GAS LEAKS.
15. Confirm correct gas pressure. Use a manometer to check
pressures as specified under Section 9, Gas Pressure (page 19).
16
Upper Baffle
NEVER USE OPEN FLAME TO
Figure 7.4a.
Break off the Upper Baffle wings, LP conversion.
Remove black
rubber gasket
Variable regulator tower
Figure 7.5.
Regulator tower removal and replacement
Apply Label
"A" to lower
door hinge.
Figure 7.6.
Conversion label "A" location.
Remove
Upper Baffle
wings
