Copper Cable; Technical Specifications - Transition Networks C/E-100BTX-FX-04(LH) User Manual

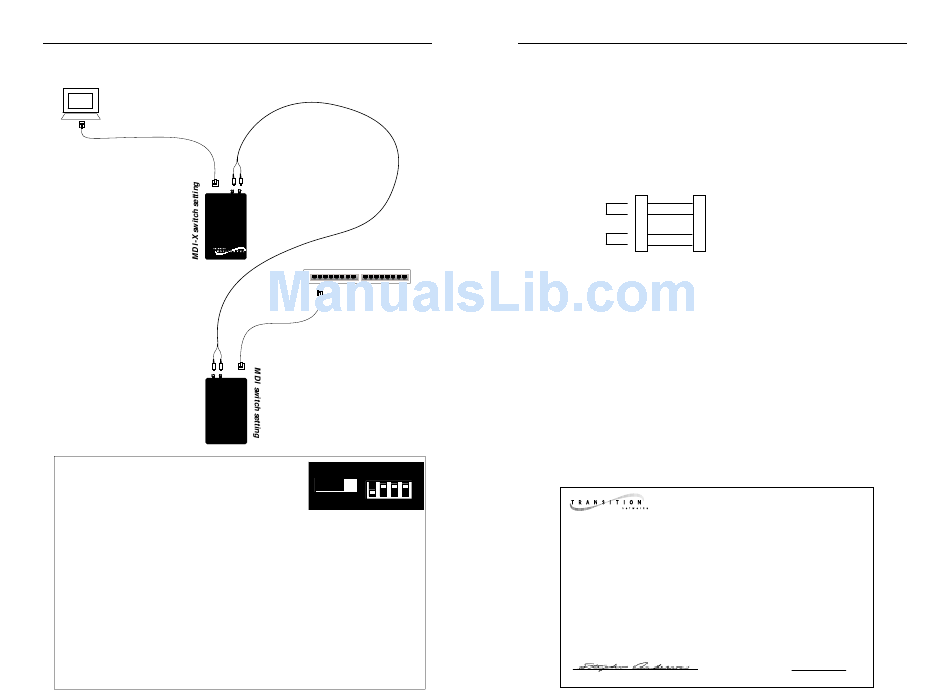

C/E-100BTX-FX-04 IN THE NETWORK
100 meters
UTP/STP
Do NOT connect media
converters between hubs.
Install no more than two (2)
media converters in series.
Switches at the side of the media converter are used
to configure the media converter for the network.
MDI/MDI-X SWITCH
Allows straight-through twisted-pair cable to be used
for crossover 100BASE-TX connections.
4-POSITION SWITCH
1(UP) Enables Auto-negotiation function to detect and adapt to line
speed/operation mode of attached device. (DOWN) Disables Auto-
negotiation function.
2(UP) Allows an attached full-duplex station to transmit and receive
simultaneously. (DOWN) Allows an attached half-duplex station to transmit
and receive sequentially.
3(UP) Enables BOTH Link Pass Through AND Remote Fault Detect
functions. (See page 4) (DOWN) Disables BOTH Link Pass Through AND
Remote Fault Detect functions
4 Relevant only if Switch 3 is UP. (UP) Enables Remote Fault Detect function
at Switch 3. (DOWN) Disables Remote Fault Detect function at Switch 3.
2 kilometers - multimode
20 kilometers - singlemode
40 kilometers - singlemode (LH)
Fiber
100 meters
1 2 3 4
MDI
MDI-X

Copper Cable

Category 5 shielded twisted-pair (STP) or unshielded twisted-pair (UTP) copper
wire is required. DO NOT USE FLAT OR SILVER SATIN WIRE.
CATEGORY 5:
Gauge
Attenuation
Maximum Cable Distance:
Straight Through Cable
1 1
Twisted
Pair #1
2 2
Twisted 3 3
Pair #2
6 6

TECHNICAL SPECIFICATIONS

Standards IEEE 802.3u
Case Dimensions 4.75" x 3.0" x 1.0"
Shipping Weight 3 pounds
Delay 400nsec round trip
Environment Temperature:
Storage Temperature: -20 to 85°C
Humidity
Altitude
Warranty Lifetime
DECLARATION OF CONFORMITY
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: C/E-100BTX-FX-04 Series Media Converters
Part Number(s): C/E-100BTX-FX-04, C/E-100BTX-FX-04(SC), C/E-100BTX-FX-04(MT),
C/E-100BTX-FX-04(SM), C/E-100BTX-FX-04(SMLC), C/E-100BTX-FX-04(LH),
C/E-100BTX-FX-04(XL), C/E-100BTX-FX-04(LW)
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the C/E-100BTX-FX-04 to which this declaration refers
is in conformity with the following standards.
EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;
EN 60950 A4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering
24 to 22 AWG
22.0 dB /100m @ 100 MHz
100 meters
The two active pairs in a 100BASE-TX
network are pins 1 & 2 and pins 3 & 6.
Use only dedicated wire pairs (such as
blue/white & white/blue, orange/white
& white/orange) for the active pins.
(119mm x 76mm x 25mm)
(1.4 kilograms)
0-50°C (32° to 122° F )
10-90%, non condensing
0-10,000 feet
_August 1, 1999_____
Date
