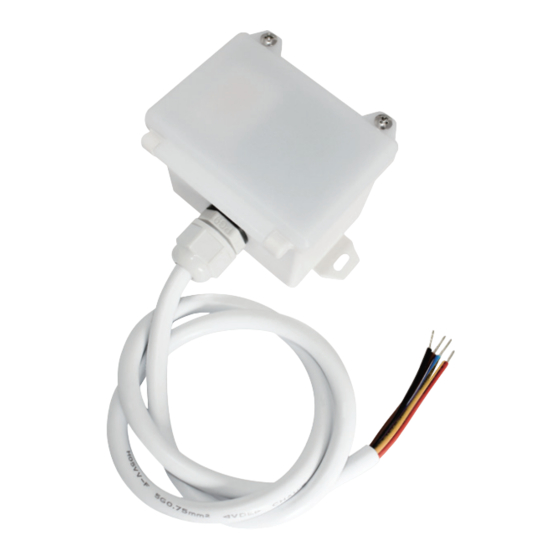

IP65 High Bay HF Motion Sensor
HMW38/RF
1-10V Dimming with RF Wireless Transmission
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
HC034RF (IP20)
400VA (capacitive); 1200W (resistive)
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Mechanical Structures and Installations
For more details, please refer to user manual.
A. Ceiling mount
Subject to change without notice.
HF
HMW38/RF
120~277VAC 50/60Hz
<1.5W
400VA@120V;800VA@220-277V
800W@120V;1600W@220-277V
20s
EN55015, EN61000
EN60669-1, EN60669-2-1
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, RCM
LED indicator
Daylight sensor
Sensor module
Installation rack
Sensor & RF Data
Model No.
Sensor principle
Operation frequency
Transmission power
Installation Height : 20m (forklift)
Detection range
Detection Range (Ø) :20m
Detection angle
RF frequency
RF transmission distance
Environment
Operation temperature
IP rating
RED
Rotary switch
Infrared receiver
Cable entry
Edition: 26 Feb. 2020
HMW38/RF
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
15m (person)
360
O
868MHz (FSK mode)
30m indoor, 50m outdoor
Ta: -20
O
C ~ +50
O
C
IP65
IP65
4.1
66.6
81.5
Ver. A0
Page 1/7
