Hytronik HMW34 Installation And Instruction Manual

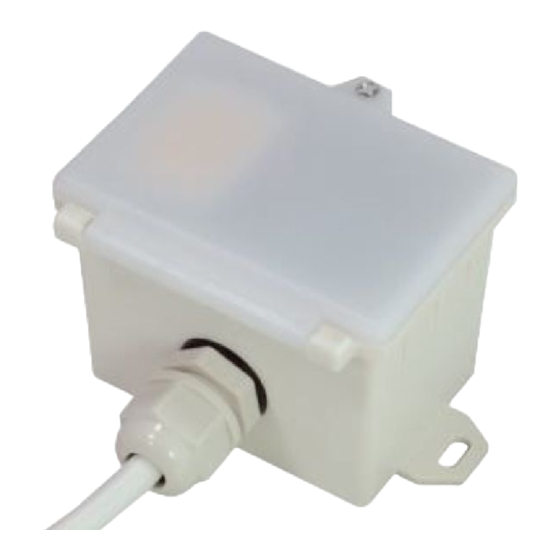

HIGH BAY MICROWAVE DALI SENSOR HMW34
1. Technical Specifications
Product type High bay microwave DALI sensor (Daylight harvest)
Operating voltage 220~240VAC 50/60Hz
Switched power Maximum 20pcs DALI devices Maximum 40mA
Power consumption < 0.5W
o
Detection angle 360
Installation Height : 20m (forklift) 15m (person)
Detection area (Max.)*
Detection Range (Ø) :20m
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 50 ~ 500Lux , Disable
Warmming-up time 20s
o
Operating temperature -20 C ~ +50
IP rating IP65

3. Rotary Switch Settings

A rotary switch is built inside the sensor for
scene selection / fast programming. Total
16 channels available:
Detection Hold
Channel
range time
0 100% 5s
1 100% 1min
2 100% 5min
3 100% 5min
4 100% 5min
5 100% 5min
6 100% 10min
7 100% 10min
8 100% 10min
9 100% 10min
A 100% 20min
B 100% 20min
C 100% 30min
D 100% 30min
E 100% 30min
F 100% 5s
Note: settings can also be changed by remote control HRC-11. The last action controls.

4. Functions

4.1 Daylight Harvest (Daylight Regulating)

Daylight sensor measures the available natural light of the surrounding, calculates how much electrical
light is needed to reach the total lux expected. The demand is given to the LED driver by DALI signal, so as
to deliver the needed amount of electric light.
Light level
Energy Saving Zone
0
Installation and Instruction Manual
o
C
Rotary switch preset (Please
see the location in 2. Installation)
Stand-by Stand-by Daylight
time dimming level threshold
10s 10% Disable
5min 10% 50Lux
10min 10% 50Lux
+∞ 10% 75Lux
+∞ 10% 100Lux
+∞ 30% 200Lux
30min 10% 50Lux
+∞ 10% 75Lux
+∞ 10% 100Lux
+∞ 30% 200Lux
1h 10% 100Lux
+∞ 30% 200Lux
+∞ 10% 100Lux
+∞ 30% 200Lux
+∞ 50% 400Lux
10s 10% 100Lux
Hold time
Normal Electric Light
Daylight controlled light
Stand-by time
Natural light
24
Time (hrs)

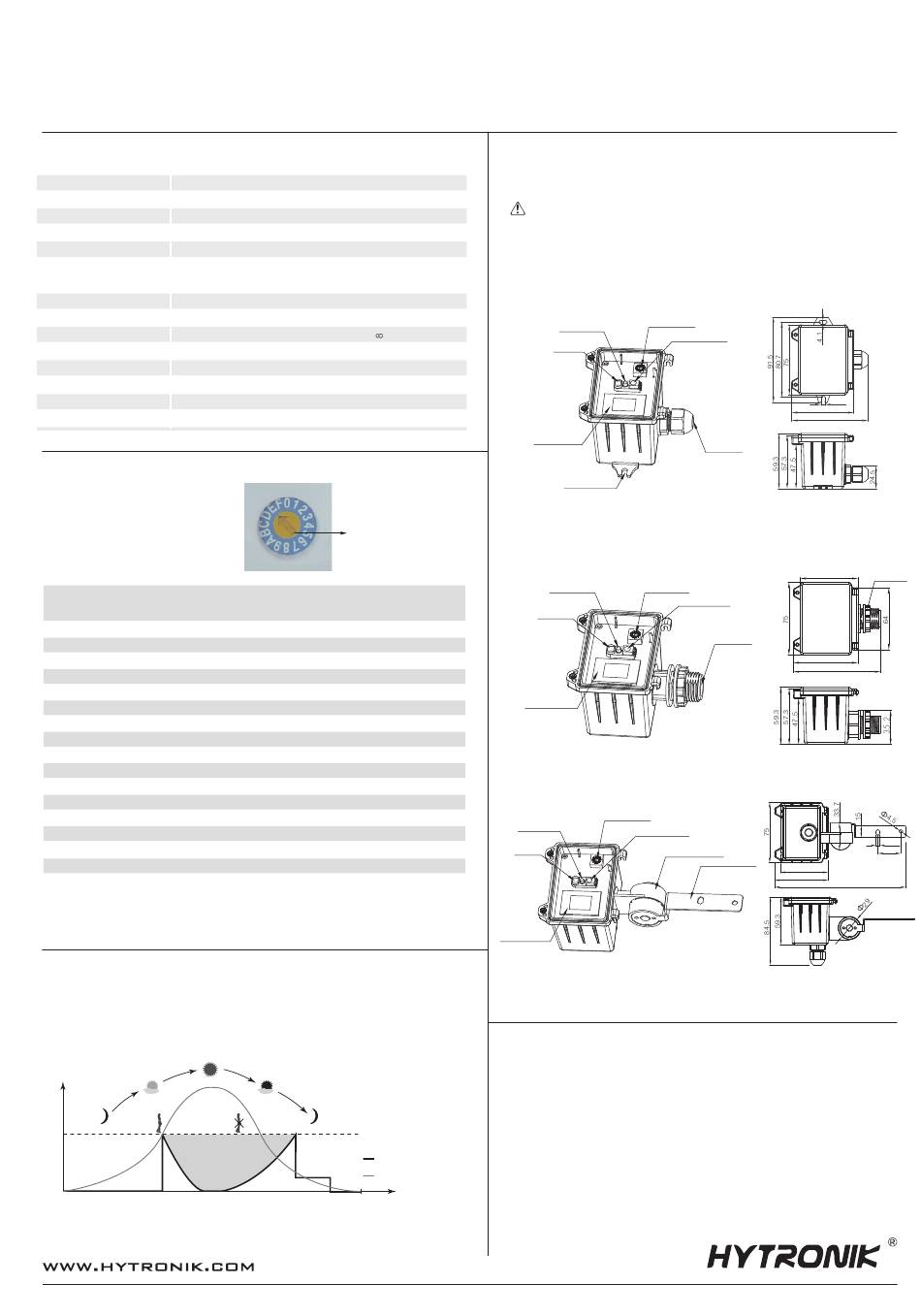

2. Installation

Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect power supply before installing.
A. Ceiling mount
Rotary switch
LED indicator
Infrared receiver
Photocell
Sensor module
Installation rack
B. Screw to the Luminaire by conduit
Rotary switch
LED indicator
Photocell
Sensor module
C. Attach to the shade by clamp
Rotary switch
LED indicator
Infrared receiver
Photocell Angle adjustment
Sensor module
Note:We recommend the mounting distance between sensor to sensor
should be more than 2m to prevent sensors from false-triggering.

4.2 Lux Off Function

The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is not required (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.

4.3 Load Indication

The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100%
or POWER 80% is pressed.
4.1
66.6
81.5
Cable entry
59.6
Infrared receiver
Cable entry
66.6
89.9
Luminaire clamp
59.6
66.6
163.2
HMW34-20181126-A1
0.825"
4.5
28.5
