Hytronik HMW35 Installation And Instruction Manual

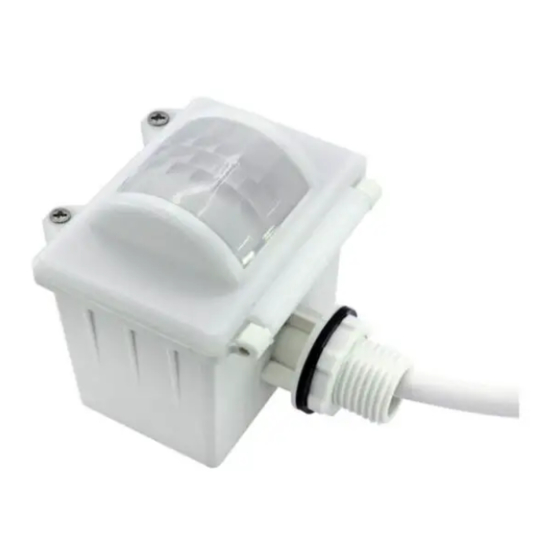

HIGH BAY MICROWAVE DALI SENSOR HMW35
1. Technical Specifications
Product type High bay microwave DALI sensor (tri-level control)
Operating voltage 220~240VAC 50/60Hz
Switched power Maximum 20pcs DALI devices, Maximum 40mA
Power consumption < 0.5W
o
Detection angle 360
Detection area (Max.)* Installation Height : 20m (forklift) 15m (person)
Detection Range (Ø) :20m
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 2 ~ 500Lux, Disable
Warming up time 20s
o
Operating temperature -20 C ~ +50
IP rating IP65

3. Rotary Switch Settings

A rotary switch is built inside the sensor for
scene selection / fast programming. Total
16 channels available:
Detection Hold
Channel
range time
0 100% 5s
1 100% 1min
2 100% 5min
3 100% 5min
4 100% 5min
5 100% 5min
6 100% 5min
7 100% 10min
8 100% 10min
9 100% 10min
A 100% 10min
B 75% 10min
C 50% 10min
D 100% 30min
E 100% 30min
F 100% 5s
Note: settings can also be changed by remote control HRC-11. The last action controls.

4. Functions

4.1 Tri-level Control (Corridor Function)

Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas require a
light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time: motion
hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.

4.2 Lux Off Function

The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is unneeded (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.
Installation and Instruction Manual
o
C
Rotary switch preset (Please
see the location in 2. Installation)
Stand-by Stand-by Daylight
time dimming level threshold
10s 10% Disable
5min 10% 2Lux
10min 10% 10Lux
30min 10% 30Lux
0s Disable 10Lux
+∞ 10% 30Lux
+∞ 30% Disable
10min 10% 2Lux
30min 10% 10Lux
+∞ 10% 30Lux
+∞ 30% Disable
+∞ 10% 30Lux
+∞ 10% 10Lux
+∞ 10% 50Lux
+∞ 30% Disable
10s 10% 2Lux

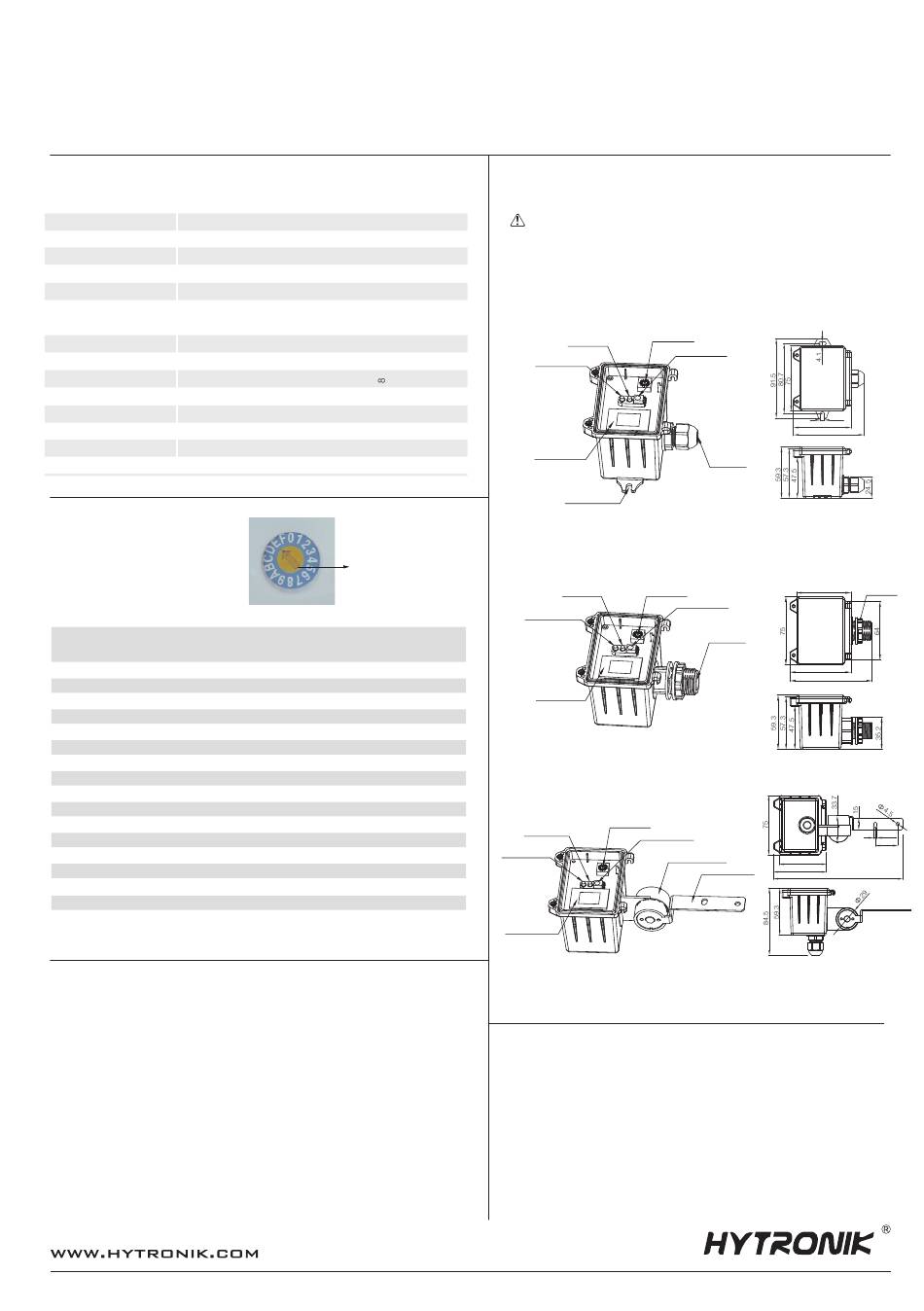

2. Installation

Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect supply before installing.
A. Ceiling mount
Rotary switch
LED indicator
Daylight sensor
Sensor module
Installation rack
B. Screw to the Luminaire by conduit
LED indicator Rotary switch
Daylight sensor
Sensor module
C. Attach to the shade by clamp
Rotary switch
LED indicator
Infrared receiver
Daylight sensor
Angle adjustment
Sensor module
Note:We recommend the mounting distance between sensor to sensor
should be more than 2m to prevent sensors from false-triggering.

4.3 Load Indication

The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100%
or POWER 80% is pressed.
Infrared receiver
4.1
66.6
81.5
Cable entry
59.6
Infrared receiver
Cable entry
66.6
89.9
59.6
Luminaire clamp
66.6
163.2
HMW35-20180529-A2
0.825"
4.5
28.5
