Hytronik HC028V/RF Instruction Manual

INSTRUCTION MANUAL FOR RF COMMUNICATION MICROWAVE MOTION SENSOR
Product type:
Operation voltage:
Rated load:
HF detection range:
Time setting:
Stand-by period:
Stand-by dimming level:
Daylight threshold:
Installation height:
Working temperature:
HF system:
Coding system:
RF frequency:
RF transmission distance:

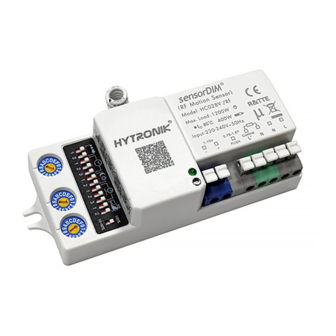

This is a combination of motion sensor and RF radio wave wireless transmission. The motion detected by 1 sensor (the
master unit) can pass onto other pre-defined individuals (the slave units) through RF transmission. Thanks to fixed address
code technology, it's easy to set up point-to-point or point-to multipoint transmission.
Note: the RF signal would be affected by big metal plate, frames, thick obstacle or special frequent electromagnetic waves
radiation.
1.1 Ensure that the electricity supply is switched off before installing or servicing this product.

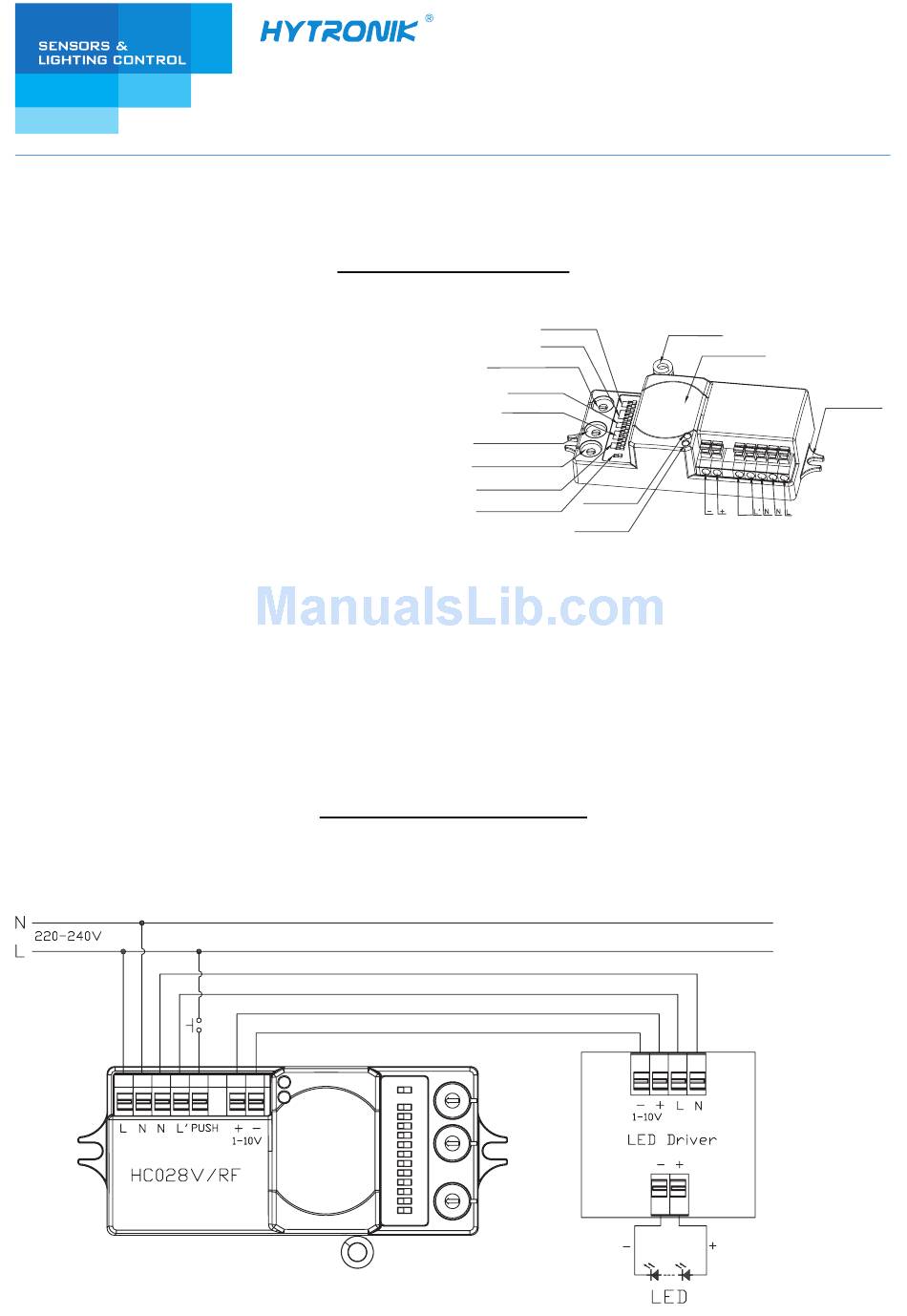

1.2 Wiring diagram
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525 F: 00852-30116936
E: info@hytronik.com
MODEL NO.: HC028V/RF

Technical Specifications

RF microwave motion sensor
220-240VAC 50/60Hz
400W (capacitive load)
Max. 12m in diameter, adjustable
5s ~ 30min.
0s, 10s ~ 1h, +∞
10% ~ 50%
2 ~ 50Lux, disable
Max. 6m
-20℃ ~ +60℃
5.8GHz CW radar
Fixed address coding with 16 channels
FSK 868MHz (315MHz / 433MHz / 915Mhz upon request)
30 meters indoor, 100 meters in open area

Section 1 Installation and Wiring

CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
Detection area
Hold-time
Rotary coding switch(TX)
Daylight sensor
Stand-by period
Rotary coding switch(RX1)
Rotary coding switch(RX2)
Stand-by dimming level
LED indication
Brightness on RF signal
Daylight sensor
F:86-752-2777877
W:www.hytronik.com
RF antenna
Antenna module
Installation hole
Push
1-10V
