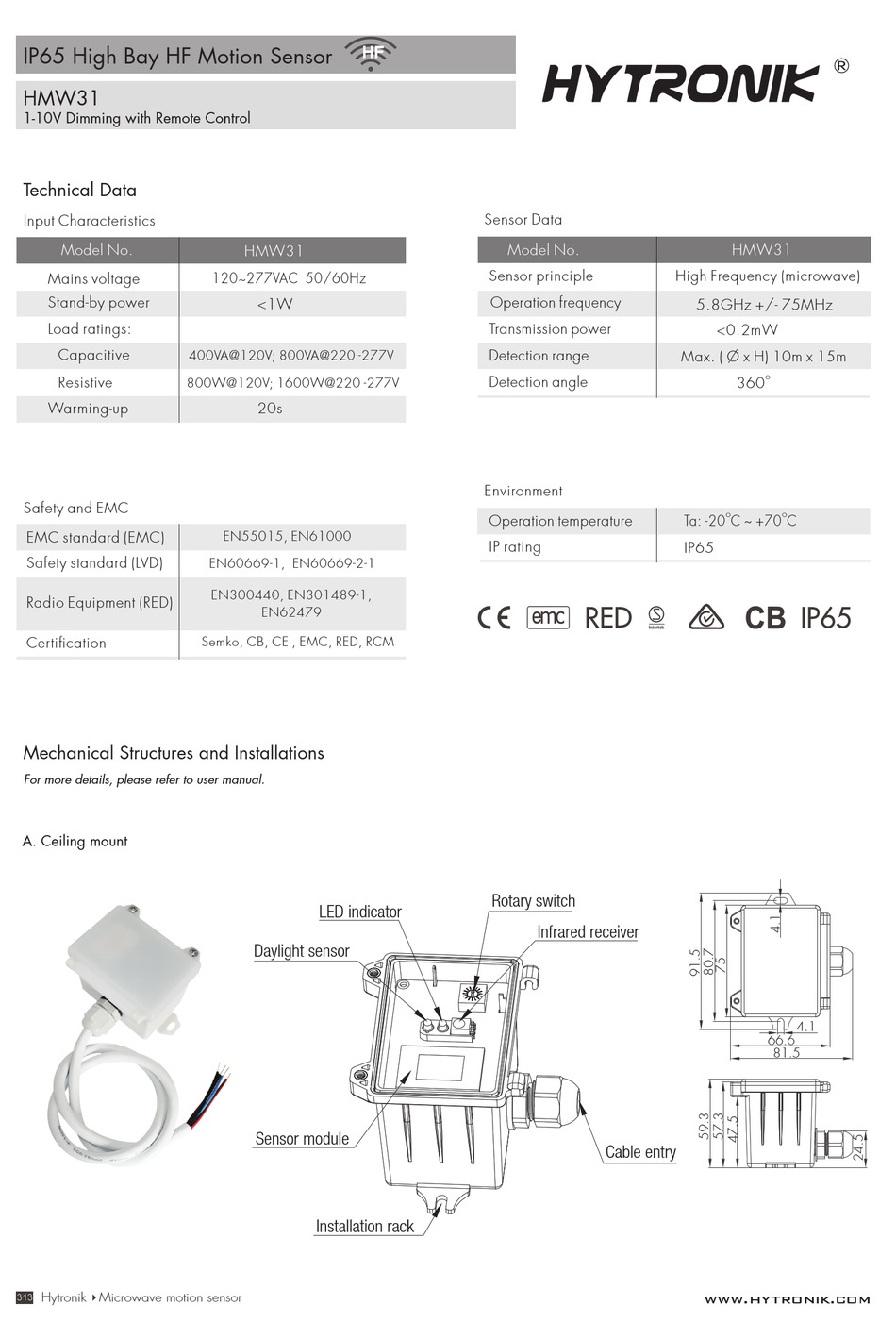

IP65 High Bay HF Motion Sensor
HMW31
1-10V Dimming with Remote Control
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certification
Mechanical Structures and Installations
For more details, please refer to user manual.
A. Ceiling mount
Hytronik Microwave motion sensor
313
HMW31
120~277VAC 50/60Hz
<1W
400VA@120V; 800VA@220 -277V
800W@120V; 1600W@220 -277V
20s
EN55015, EN61000
EN60669-1, EN60669-2-1
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, RCM
LED indicator
Daylight sensor
Sensor module
Installation rack
HF
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection angle
Environment
Operation temperature
IP rating
Rotary switch
High Frequency (microwave)
5.8GHz +/- 75MHz
Max. ( O x H) 10m x 15m
Ta: -20
IP65
RED
Infrared receiver
Cable entry
www.hytronik.com
HMW31
<0.2mW
O
360
O
O
C ~ +70
C
IP65
4.1
66.6
81.5
