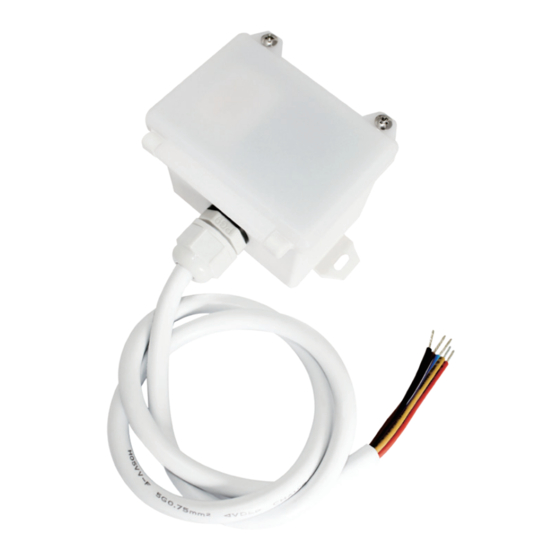

IP65 High Bay HF Motion Sensor
HMW30
On/off Control with Remote Control
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Mechanical Structures and Installations
For more details, please refer to user manual.
A. Ceiling mount
www.hytronik.com
HF
HMW30
220~240VAC 50/60Hz
<1W
800W
1000W
20s
EN55015, EN61000
EN60669-1, EN60669-2-1
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, RCM
LED indicator
Photocell
Sensor module
Installation rack
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection range
Detection angle
Environment
Operation temperature
IP rating
RED
Rotary switch
Infrared receiver
Cable entry
HMW30
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Installation Height : 20m (forklift)
15m (person)
Detection Range (Ø) :20m
360
O
Ta: -20
O
C ~ +50
O
C
IP65
IP65
4.1
66.6
81.5
