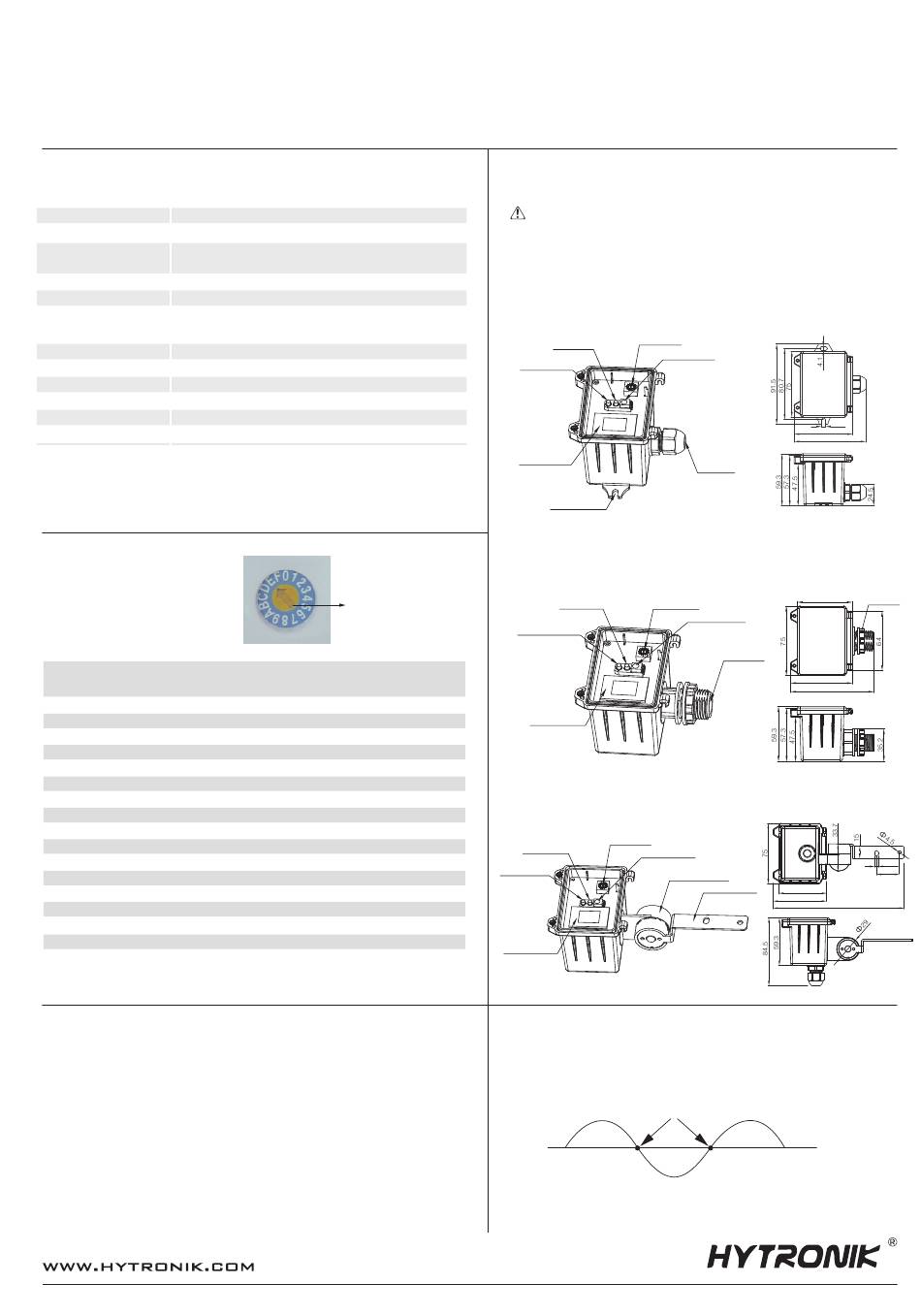

Hytronik HMW30 Installation And Instruction Manual

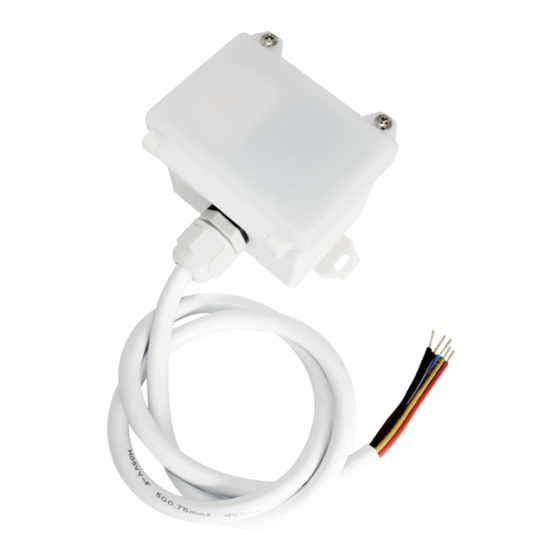

HIGH BAY MICROWAVE MOTION SENSOR HMW30
1. Technical Specifications
Product type On/off control microwave motion sensor
Operating voltage 220~240VAC 50/60Hz
Capacitive: 800VA
Rated load
Resistive: 1000W
Power consumption < 0.5W
o
Detection angle 360
Installation Height : 20m (forklift) 15m (person)
Detection area (Max.)*
Detection Range (Ø) :20m
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Daylight threshold 2 ~ 500Lux, Disable
Warmming up time 20s
o
Operating temperature -20 C ~ +50
IP rating IP65
Note:We recommend the mounting distance between sensor to sensor
should be more than 2m to prevent sensors from false-triggering.

3. Rotary Switch Settings

A rotary switch is built inside the sensor for
scene selection / fast programming. Total of
16 channels available:
Detection Hold
Channel
range time
0 100% 5s
1 100% 1min
2 100% 5min
3 100% 5min
4 100% 5min
5 100% 5min
6 100% 5min
7 100% 10min
8 100% 10min
9 100% 10min
A 100% 10min
B 75% 10min
C 50% 10min
D 100% 30min
E 100% 30min
F 100% 5s
Note: settings can also be changed by remote control HRC-11. The last action controls.

4. Functions

4.1 On/off Control
This sensor is a motion switch, which turns on the light upon detection of motion, and turns off after a
pre-selected hold-time when there is no movement. A daylight sensor is also built in to prevent the light
from switching on when there is sufficient natural light.
Installation and Instruction Manual
o
C
Rotary switch preset (Please
see the location in 2. Installation)
Stand-by Stand-by Daylight
time dimming level threshold
10s 10% Disable
5min 10% 2Lux
10min 10% 10Lux
30min 10% 30Lux
0s Disable 10Lux
+∞ 10% 30Lux
+∞ 30% Disable
10min 10% 2Lux
30min 10% 10Lux
+∞ 10% 30Lux
+∞ 30% Disable
+∞ 10% 30Lux
+∞ 10% 10Lux
+∞ 10% 50Lux
+∞ 30% Disable
10s 10% 2Lux

2. Installation

Warnings:
1. Installation of the sensor involves connecting it to the mains supply. This work must be
carried out by a specialist in accordance with electrotechnical regulations.
2. Disconnect power supply before installing.
A. Ceiling mount
Rotary switch
LED indicator
Infrared receiver
Daylight sensor
Sensor module
Installation rack
B. Screw to the Luminaire by conduit
Rotary switch
LED indicator
Daylight sensor
Sensor module
C. Attach to the shade by clamp
Rotary switch
LED indicator
Infrared receiver
Daylight sensor
Angle adjustment
Sensor module
4.2 Zero-cross Relay Operation
Designed in the software, sensor switches on/off the load right at the zero-cross point, to ensure
that the in-rush current is minimised, enabling the maximum lifetime of the relay.
zero-cross point
4.1
66.6
81.5
Cable entry
59.6
Infrared receiver
Cable entry
66.6
89.9
Luminaire clamp
59.6
66.6
163.2
Alternating current
HMW30-20180529-A2
