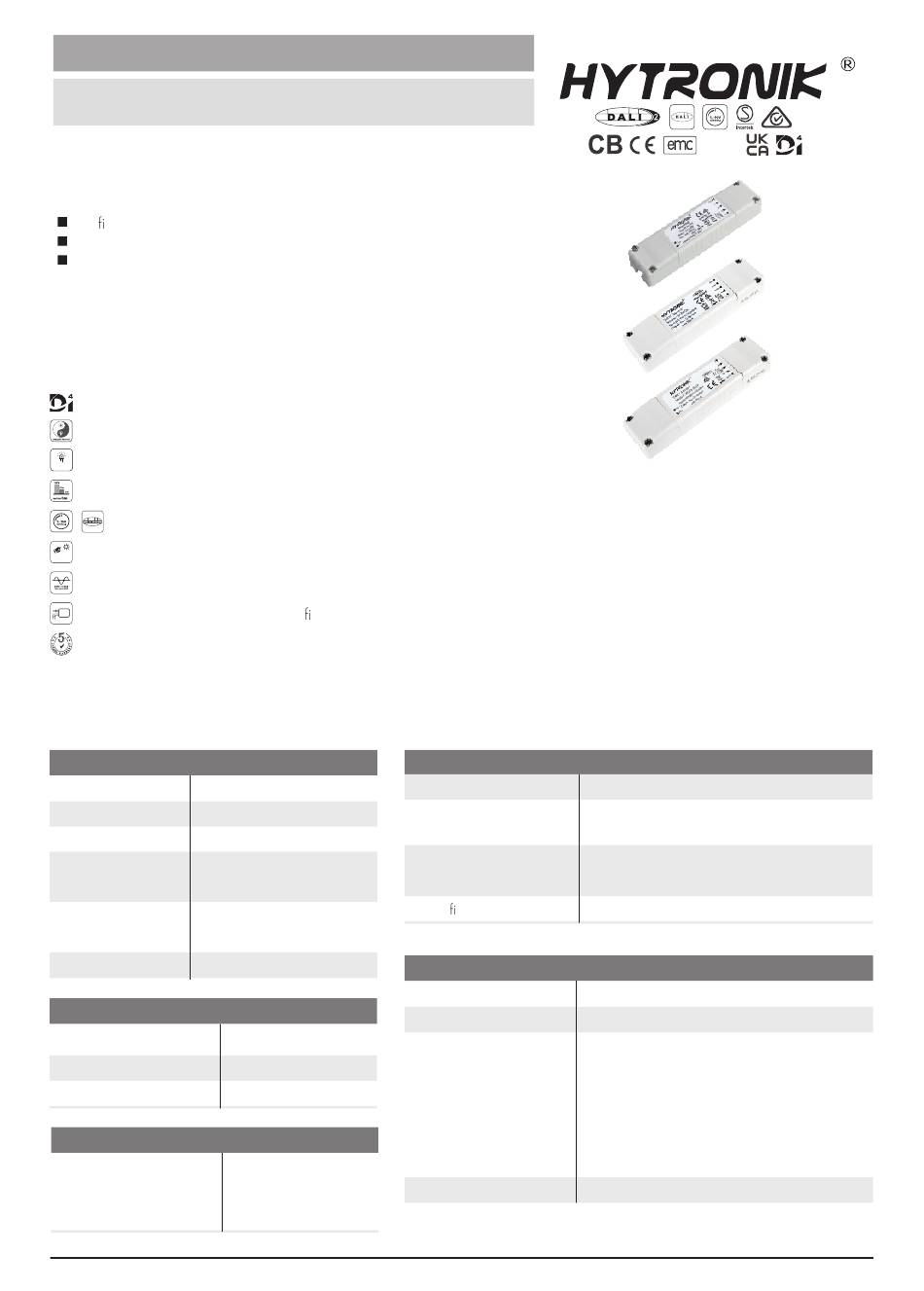

Hytronik HC038V Manual

Tri-level Control & Daylight Harvest Sensor
HC038V HCD038

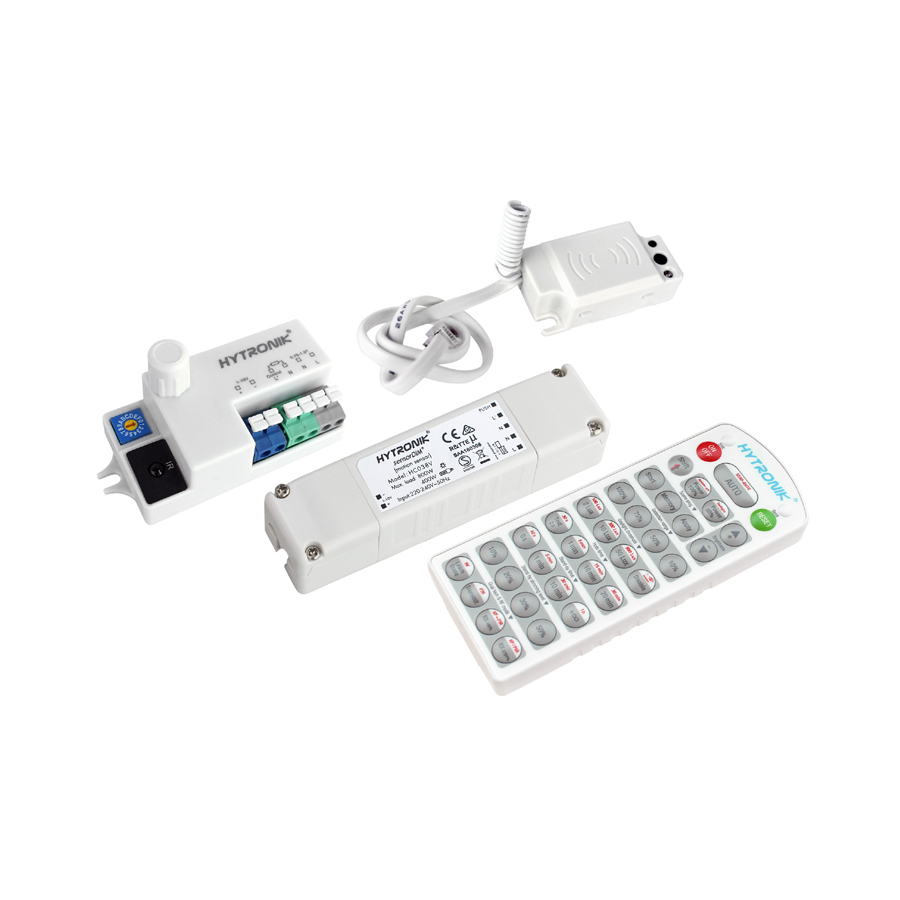

Detached Linear Version with Remote Control
Applications
Occupancy detector with tri-level dimming control suitable for indoor use:
Of ce / Commercial Lighting
Classroom
Meeting Room
Use for new luminaire designs and installations
Features
DALI-2 and D4i supported (HCD038/P)
Daylight harvest function to regulate light output for maintaining required lux level
Active Lux Switching, daylight threshold prior to motion detection
Active Lux
Switching
Tri-level dimming control based upon occupancy (also known as corridor function)
TM
Optional 1-10V or DALI dimming control method
One-touch daylight learning via remote control
Ambient daylight
threshold
Zero crossing detection circuit reduces in-rush current and prolongs relay life (HC038V)
Loop-in and loop-out terminal for ef cient installation (HC038V)
Loop in
Loop out
5-year warranty
Technical Data
Input & Output Characteristics
Operating voltage 220~240VAC 50/60Hz
Stand-by power
Load ratings:
HC038V
HCD038
30mA (max. 15 devices)
HCD038/P
Warming-up
Environment
Operation temperature
Case temperature (Max.)
IP rating
DALI-2 Standards
HCD038/P+HIR17
Subject to change without notice.
HCD038/P
<0.5W
400VA (capacitive)
800W (resistive)
20s
Ta: -20 °C ~ +55 °C
Tc: +75 °C
IP20
IEC62386 101
IEC62386 103
IEC62386 303
IEC62386 304
Safety & EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
PIR Sensor Propertie (HIR17 & HIR17/R)
Sensor principle
Operation voltage
Detection range
*
Detection angle
Edition: 30 Mar. 2022
RED
EN55015, EN61000, EN61547
EN60669-1/-2-1,
AS/NZS60669-1/-2-1, IEC62386
EN300440, EN301489-1/-3/-17
EN62479, EN300328
Semko, CB, CE , EMC, RED, RCM,UKCA
PIR detection
5VDC
5VDC
HIR17
Max installation height：3m (single person)
Max detection range (Ø)：12m
HIR17/R
Max installation height：8m (single person)
Max installation height：12m (forklift)
Max detection range (Ø)：14m
360°
Ver. A0
HC038V
HCD038
HCD038/P
Page 1/11
