Installation and Instruction Manual
HF

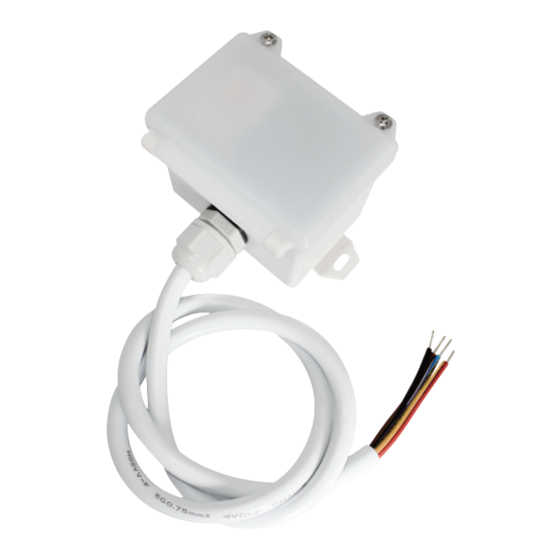

HIGH BAY RF WIRELESS MICROWAVE MOTION SENSOR HMW38/RF
1. Technical Specifications
Product type RF wireless microwave motion sensor (tri-level control)
Operating voltage 120~277VAC 50/60Hz
Rated load Capacitive: 400W@120V; 800W@220-277V
Resistive: 800W@120V; 1600W@220-277V
Power consumption < 1.5W
o
Detection angle 360
Detection area (DxH) 10 x 12m (Maximum)
Mounting height 12m (Maximum)
Detection range 10% / 50% / 75% / 100%
Hold time 2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time 0s / 10s / 1min / 5min / 10min / 30min / 1h / +
Stand-by dimming level 10% / 20% / 30% / 50%
Daylight threshold 2 ~ 500Lux, Disable
RF transmission distance 30 meters in the open area
RF frequency 868MHz (FSK mode)
Warming up time 20s
o
Operating temperature -20 C ~ +50
IP rating IP65
3. Rotary Switch for RF grouping
Rotary switch for RF grouping
(Please see the location in 2. Installation)
15 channels are available for fast grouping via rotary switch. By simply selecting the same channel on each
unit, the grouping is automatically completed.
Noted: channel "0" is not for fast grouping, and sensors can only be grouped by remote control.
4. Functions
4.1 Tri-level Control (Corridor Function)
Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas it requires
a light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time: motion
hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.
4.2 Lux Off Function
The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is not required (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.
4.3 Load Indication
The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100%
or POWER 80% is pressed.
o
C

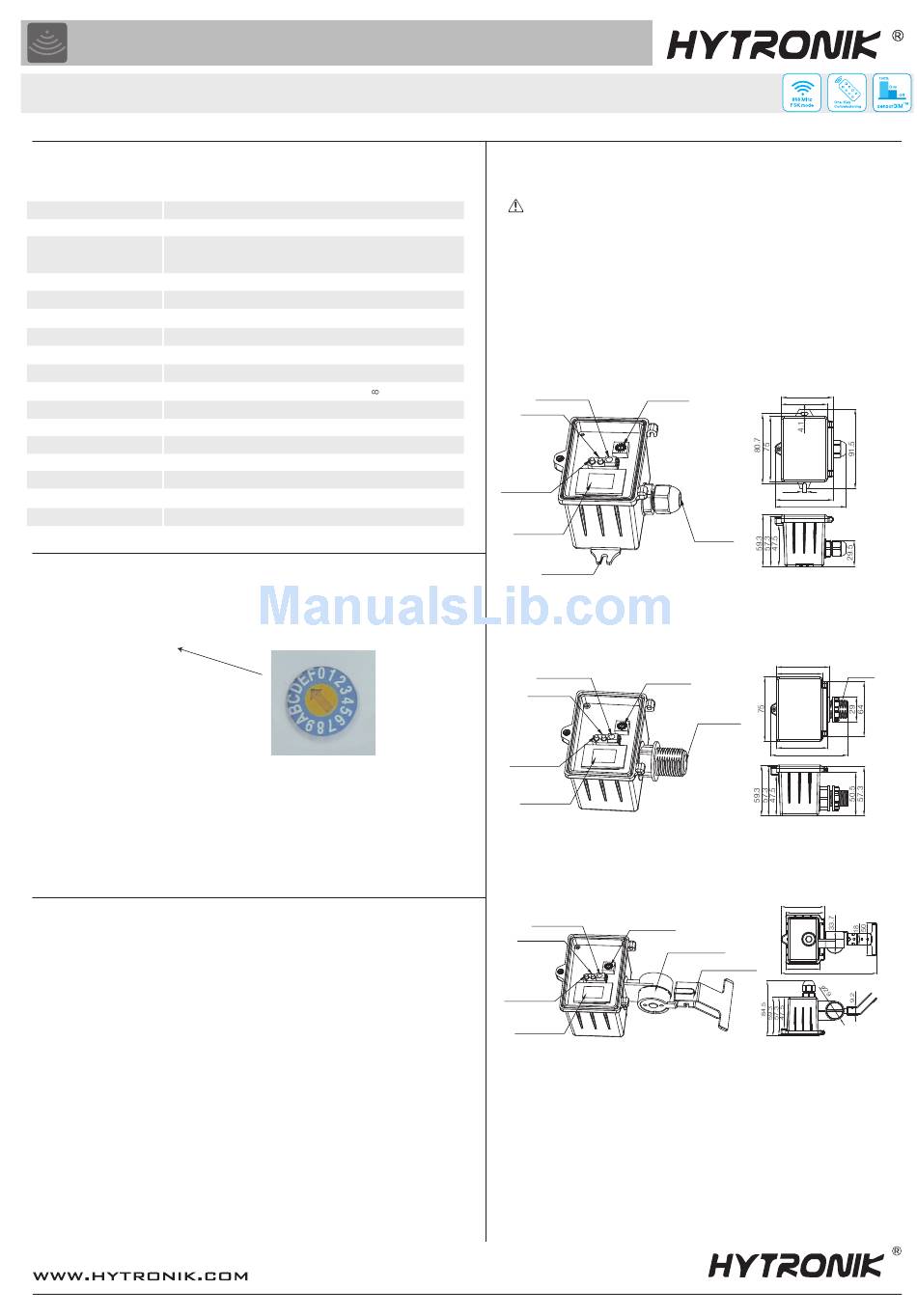

2. Installation
Warnings:
1. Installation must be carried out by a qualified engineer in accordance with
local regulations.
2. Disconnect power supply before installing.
3. Install to a solid surface - vibrations may cause mis-triggering.
4. Ensure environmental conditions are suitable for electronic equipment
A. Ceiling mount
Rotary switch
Infrared receiver
LED indicator
Daylight sensor
Sensor module
Installation rack
B. Screw to the Luminaire by conduit
Infrared receiver
Rotary switch
LED indicator
Daylight sensor
Sensor module
C. Attach to the shade by clamp
Infrared receiver
Rotary switch
LED indicator
Angle adjustment
Daylight sensor
Sensor module
59.6
53
4.1
66.6
81.5
Cable entry
61.4
53
0.825"
Cable entry
59.6
89.9
66.6
59.6
Luminaire clamp
53
146.6
HMW38/RF-20180227-A2
