3.5 INSTALLATION CONFIGURATION

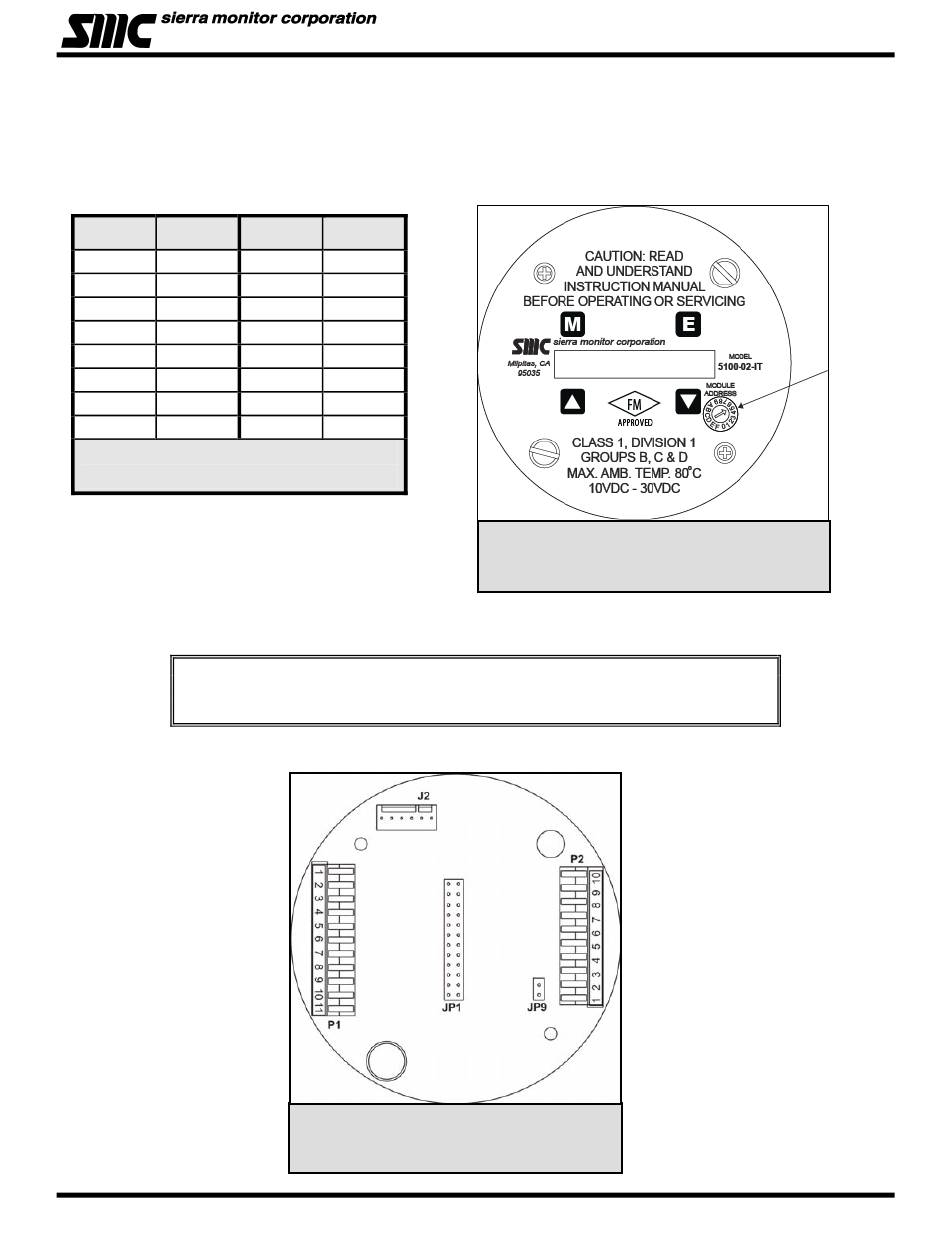

Table 3-3 and Figures 3-1 through 3-4 provide location and installation details.
P A
OSITION DDRESS
1 Sensor 1
2 Sensor 2
3 Sensor 3
4 Sensor 4
5 Sensor 5
6 Sensor 6
7 Sensor 7
8 Sensor 8
Table 3-2
Sensor Module Rotary Switch Positions
For Sentry applications only sensor addresses 1-8 are allowed. If using Modbus output
sensor addresses 1-15 are available. Position 0 allows the Modbus or Sentry address to be
P A
OSITION DDRESS
9 Sensor 09
A Sensor 10
B Sensor 11
C Sensor 12
D Sensor 13
E Sensor 14
F Sensor 15
0 Select
set by software menu, in the range 16-254.
Figure 3-2
Connector Locations
Model 5100-02-IT Combustible Gas Sensor Module
Figure 3-1
Module Address Rotary Switch
N
OTE
