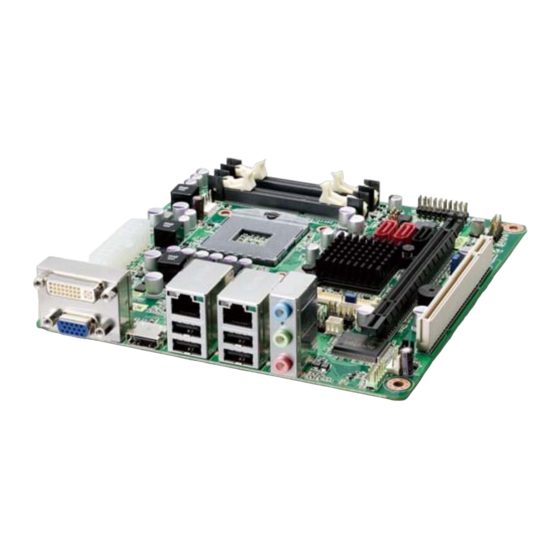

MI-220
Quick Reference Guide
DIMMA1
F_PANEL1
USB56
SPI_CN1
DIMMB1
SATA3
CPU_FAN1
SATA1/2
JLVDS1
ATXPWR1
JCLRTC2
COM2
COM4
JBKL1
JLPC1
COM1
COM3
JCASE1
KBMS1
DIO1
SYS_FAN1
JPSON1
AAFP1

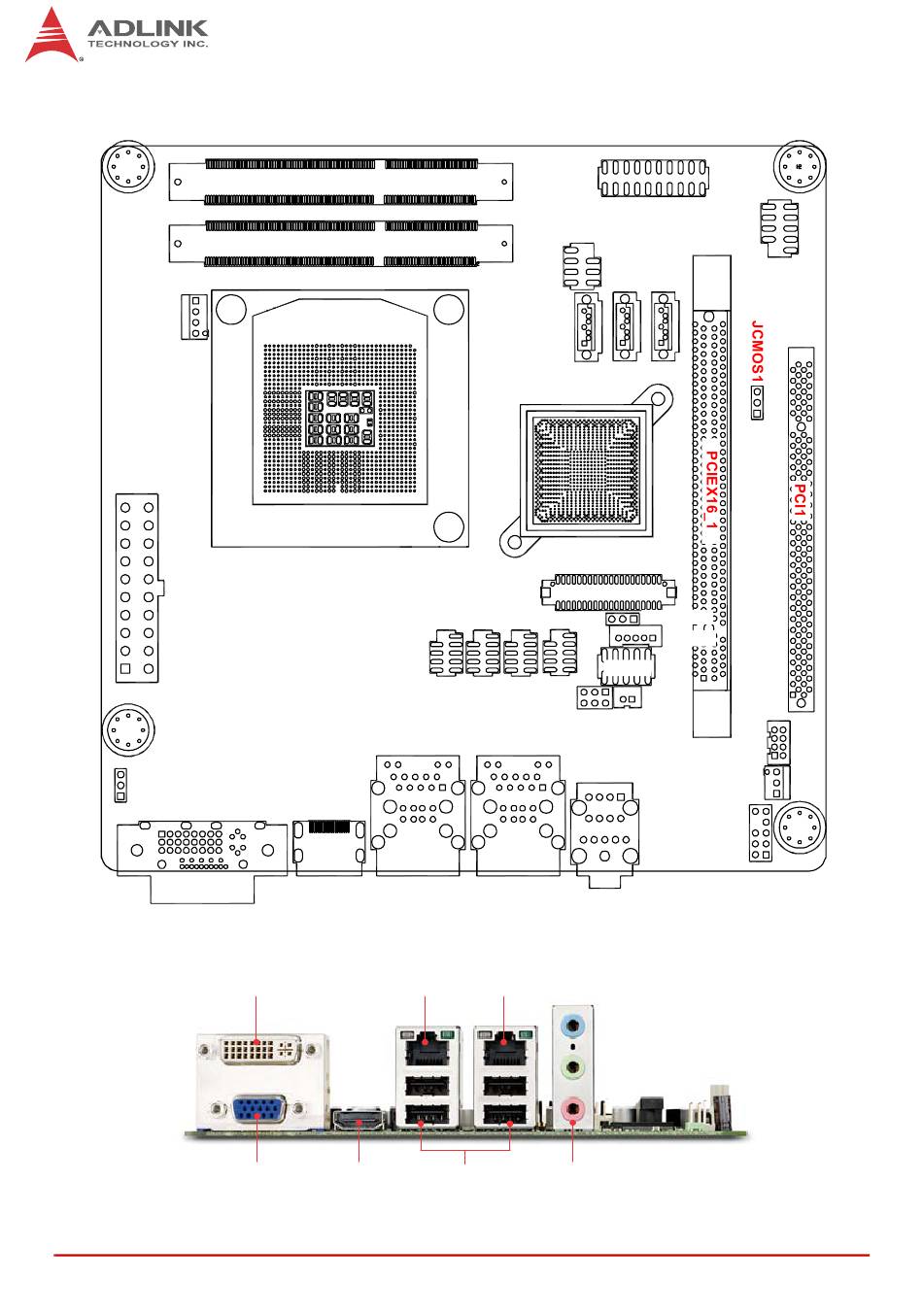

Figure 1: MI-220 Board Layout
DVI
LAN1
LAN2
VGA
HDMI
USB
Audio
Figure 2: MI-220 Rear I/O Layout
Rev. 1.02, December 12, 2011
P/N: 50-1Z088-1020
Advertisement
Related Manuals for ADLINK Technology MI-220
Summary of Contents for ADLINK Technology MI-220
- Page 1 SATA3 CPU_FAN1 SATA1/2 JLVDS1 ATXPWR1 JCLRTC2 COM2 COM4 JBKL1 JLPC1 COM1 COM3 JCASE1 KBMS1 DIO1 SYS_FAN1 JPSON1 AAFP1 Figure 1: MI-220 Board Layout LAN1 LAN2 HDMI Audio Figure 2: MI-220 Rear I/O Layout Rev. 1.02, December 12, 2011 P/N: 50-1Z088-1020...
- Page 2 Chassis Intrusion connector SPI_CN1 SPI pin header JCLRT_C2 LCD Backlight Voltage jumper USB45 USB4/5 pin header JCMOS1 Clear CMOS jumper Table 1: MI-220 Board Layout Legend Front Panel Audio Pin Header (AAFP1) Pin # Signal Pin # Signal MIC2_L MIC2_R 3.3V...
- Page 3 PLED Power LED signal Power LED Power LED pull-up Ground RESET Button RESETBT RESET signal Ground Power On Button POWERBT Power-on signal HDDLED Hard Disk LED signal Hard Disk LED P3V3 Hard Disk LED pull-up MI-220 - Quick Reference Guide...
- Page 4 PS/2 Keyboard/Mouse Pin Header (KBMS1) Pin # Signal Function KDAT Keyboard data KCLK Keyboard clock MDAT Mouse data MCLK Mouse data P5V_KM +5 V Ground USB 2.0 Connector (USB45) Pin # Signal Pin # Signal USB4- USB5- USB4+ USB5+ MI-220 - Quick Reference Guide...
