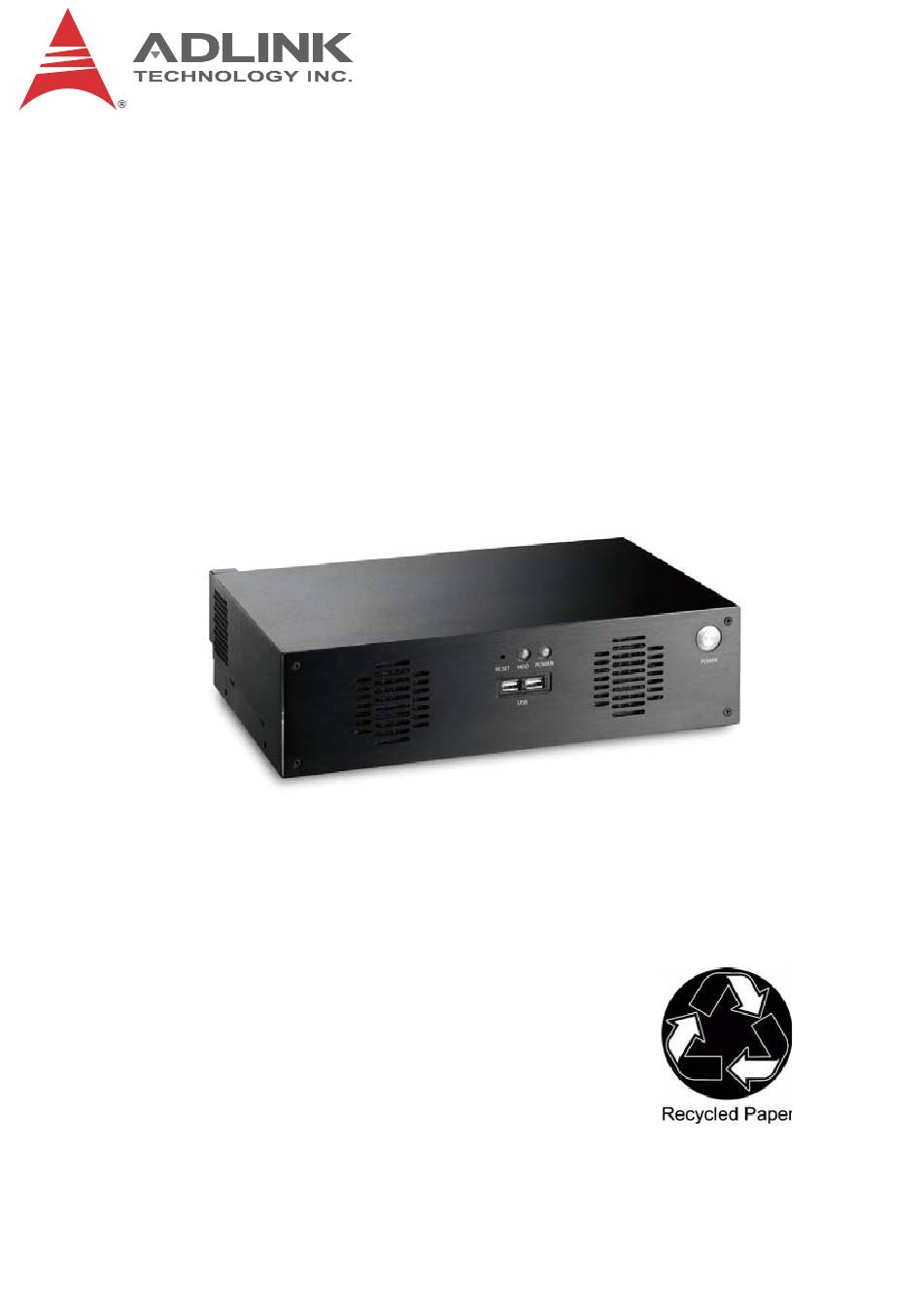

- Page 1 MIX-220 Embedded Computer System with MI-220 Mini-ITX Motherboard User’s Manual Manual Rev.: 2.00 Revision Date: June 4, 2012 Part No: 50-1Z126-1000 Advance Technologies; Automate the World.
- Page 2 Revision History Revision Release Date Description of Change(s) 2.00 2012/06/04 Initial release Revision History...
-
Page 3: Preface
MIX-220 Preface Copyright 2012 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 4 Using this Manual Audience and Scope The MIX-220 User’s Manual is intended for hardware technicians and systems operators with knowledge of installing, configuring and operating embedded single board computers. Manual Organization This manual is organized as follows: Preface: Presents copyright notifications, disclaimers, trade- marks, and associated information on the proper usage of this document and its associated product(s).
- Page 5 MIX-220 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
- Page 6 This page intentionally left blank. Preface...
-
Page 7: Table Of Contents
MIX-220 Table of Contents Revision History..............ii Preface ..................iii List of Figures ................ ix List of Tables................xi 1 Introduction ................ 1 Overview................1 Features................2 Specifications............... 3 Mechanical Drawing ............5 2 Getting Started ..............7 Packing List ................. 7 Chassis Layout .............. - Page 8 Important Safety Instructions..........33 Getting Service ..............35 viii...
-
Page 9: List Of Figures
MIX-220 List of Figures Figure 1-1: MIX-220 Dimensions (without wall mount brackets)..5 Figure 1-2: MIX-220 Dimensions (with wall mount brackets)..... 6 Figure 2-1: MIX-220 Front/Rear Panel..........8 Figure 2-2: MIX-220 Drive Bay and Fan Access........ 9 List of Figures... - Page 10 This page intentionally left blank. List of Figures...
-
Page 11: List Of Tables
MIX-220 List of Tables Table 1-1: MIX-220 General Specifications ........4 List of Tables... - Page 12 This page intentionally left blank. List of Tables...
-
Page 13: Introduction
(1x RS-232/422/485, 3x RS-232), and an externally accessible anti-shock drive bay for two 2.5” SATA 6Gb/s drives. The MIX-220 provides a PCIe x16 slot and PCI slot with card holder for add-on cards up to 190mm in length, and a PCI Express Mini Card slot for SSD or Wi-Fi module. -
Page 14: Features
1.2 Features Embedded computer system (330 mm x 212 mm x 88 mm) Supports Intel® Core™ i7/i5/i3 and Celeron® processors, rPGA988B package in Socket G2 Integrated Intel® HD Graphics with VGA, DVI-D, HDMI out- puts (features dependent on CPU model) 2x GbE (Intel®... -
Page 15: Specifications
MIX-220 1.3 Specifications System • Intel® Core™ i7-2710QE, 2.1GHz, 6M L2 Cache, 32nm, 45W TDP • Intel® Core™ i5-2510E, 2.5GHz, 3M L2 Cache, 32nm, 35W TDP • Intel® Core™ i3-2330E, 2.2GHz, 3M L2 Cache, 32nm, 35W TDP • Intel® Celeron® B810, 1.6GHz, 2M L2 Cache, 32nm,... - Page 16 • 330 mm x 212 mm x 88 mm (W x D x H) Operating Temp. • 0°C to 50°C Storage Temp. • -20ºC to 75ºC Rel. Humidity • 10% to 90%, non-condensing Certifications • CE, FCC Class A Table 1-1: MIX-220 General Specifications Introduction...
-
Page 17: Mechanical Drawing
MIX-220 1.4 Mechanical Drawing Rear View Le View Top View Right View Front View Dimensions in mm Figure 1-1: MIX-220 Dimensions (without wall mount brackets) Introduction... -
Page 18: Figure 1-2: Mix-220 Dimensions (With Wall Mount Brackets)
Rear View Le View Top View Right View Front View Dimensions in mm Figure 1-2: MIX-220 Dimensions (with wall mount brackets) Introduction... -
Page 19: Getting Started
MIX-220 Getting Started The following chapter describes how to set up the MIX-220. 2.1 Packing List Unpack the contents of the shipping carton. Please check that your package contains the items below. If you discover damaged or missing items, please contact your vendor. -
Page 20: Chassis Layout
LAN) to the system. Refer to Figure 2-1 below for connector locations. On/Off Reset HDD/Power LEDs Switch Front Panel COM1/2 COM3/4 PCIe slot PCI slot AC in USB/LAN Rear Panel HDMI Figure 2-1: MIX-220 Front/Rear Panel Getting Started... -
Page 21: Figure 2-2: Mix-220 Drive Bay And Fan Access
See “SATA Drive Installation” on page 16 and “Fan Removal and Replacement” on page 25 for more information. Drive Bay Cooling Fans Figure 2-2: MIX-220 Drive Bay and Fan Access Getting Started... - Page 22 Removing the Chassis Cover 1. Remove the two screws indicated below. 2. Slide the cover back to release the front edge. Getting Started...
- Page 23 MIX-220 3. Lift off the cover to access the inside of the chassis. Getting Started...
-
Page 24: Installing The Cpu
2.3 Installing the CPU The MI-220 motherboard supports rPGA988B package Intel® Core™ and Celeron® processors in Socket G2. When installing, carefully hold the CPU by its edges and do not force the CPU into the socket to avoid bending the pins. WARNING: To install the CPU: 1. - Page 25 MIX-220 2. Align the gold triangle at the upper-right corner of the CPU with the triangular mark at the upper-right corner of the socket. Gently place the CPU into the socket. It should drop into the socket without having to apply any downward force.
-
Page 26: Installing The Cpu Cooler
2.4 Installing the CPU Cooler 2.1 Installing the CPU Cooler An approved CPU cooler must be installed before using the sys- An approved CPU cooler must be installed before using the sys- tem. Failure to install a CPU cooler may damage the mother- tem. -
Page 27: System Memory
MIX-220 2.5 System Memory The MI-220 supports up to 8GB of DDR3 1066/1333MHz in two 204-pin SO-DIMM sockets. Memory Module Installation The DDR3 memory modules are notched to facilitate correct installation in the DIMM sockets. Disconnect all power supply to the board before installing a memory module to prevent damaging the board and mem- ory module. -
Page 28: Sata Drive Installation
2.6 SATA Drive Installation 1. Remove the four screws securing the drive bracket to the chassis. 2. Lift the drive bracket out of the chassis. Getting Started... - Page 29 MIX-220 3. Remove the four screws securing the two sets of SATA signal and power cables to the drive bracket. 4. Turn the drive bracket over and locate the mounting screws and shock absorbers in the accessory kit (four each per drive).
- Page 30 5. Carefully insert four shock absorbers for each drive you wish to install. 6. Place the 2.5” SATA drive in the drive bracket with the top side up as shown. Check that the connectors on the drive align with the opening in the bracket. Secure the drive to the bracket with the mounting screws provided.
- Page 31 MIX-220 8. Connect the SATA signal and power cable(s) to the drive(s) and secure both cables to the bracket with the four screws removed in step 3. Be sure to secure both sets of SATA cables to the drive bracket to prevent them from interfering with cooling fan operation.
-
Page 32: Installing Pcie/Pci Cards
2.7 Installing PCIe/PCI Cards Remove the chassis cover as described on page 10. The MIX-220 provides one PCIe x16 expansion slot (upper) and one PCI expan- sion slot (lower). The maximum allowed card length is 190 mm. PCIe x16 Getting Started... -
Page 33: Wall Mount Brackets
2.8 Wall Mount Brackets Two wall mount brackets and mounting screws are provided for the MIX-220. Before installing the brackets, remove the four rub- ber feet from the bottom of the chassis as indicated below. The bracket mounting locations are shown in Figure 1-2: MIX-220 Dimensions (with wall mount brackets) on page 6. -
Page 34: Powering Up
2.9 Powering Up Connect the AC power cord to the AC connector on the rear panel of the chassis. Plug the AC power cord into a suitable wall outlet. Power on any peripheral devices, such as a display monitor. Press the On/Off power switch on the front of the chassis to power on the system. -
Page 35: Driver Installation
MIX-220 2.10 Driver Installation The MI-220 drivers for Windows XP 32-bit are located in the fol- lowing directories on the Driver CD, or can be downloaded from the ADLINK website (http://www.adlinktech.com): Chipset X:\Driver\Step 1_CHIP\ Display X:\Driver\Step 2_VGA\winxp32 X:\Driver\Step 3_LAN\XP_32 Audio... - Page 36 6. Install the Intel Rapid Storage Technology Utility by extracting and running the program iata_cd_10.6.0.1022.exe in X:\Driver\Step 5_RAID\Intel_Rapid_Storage_Technology_ 10.6.0.1022.zip. Intel Rapid Storage Technology Utility file may not be included on the Driver CD. Please download it from the ADLINK website if necessary. NOTE: NOTE: Install the Management Engine driver by running the program...
-
Page 37: Hardware Information
MIX-220 Hardware Information 3.1 Fan Removal and Replacement 1. Remove the two screws securing the fan module to the chassis. 2. Lift the fan module out of the chassis as shown. Cut and remove the cable tie to release the wiring. - Page 38 3. Remove the fan module from the chassis. Replace the fan and/or air filter as required. 4. Use a new cable tie to shorten the wiring and secure it towards the center of the chassis as shown to prevent the wiring from interfering with normal fan operation. Center of the Chassis Failure to properly secure the wiring may result in improper...
- Page 39 MIX-220 5. Insert the fan module into the chassis. Make sure the module fits into the slots inside the chassis. 6. Place the connector into the gap beside the fan to allow it to fit into the chassis. 7. Slide the module into the chassis and secure it with the two screws removed in step 1.
-
Page 40: I/O Connector Pin Definitions
3.2 I/O Connector Pin Definitions For detailed information about onboard motherboard connectors and pin definitions, refer to the MI-220 User’s Manual. VGA Connector. Signal Name Pin # Pin # Signal Name Green Blue VCC pull-up VCC pull-up DDC2B DATA HSYNC VSYNC DDC2B CLK HDMI Connector... - Page 41 MIX-220 DVI-D Connector Pin # Signal Pin # Signal TMDS Data2- Hot Plug Detect TMDS Data2+ TMDS Data0- TMDS Data2/4 Shield TMDS Data0+ TMDS Data4- TMDS Data0/5 Shield TMDS Data4+ TMDS Data5- DDC Clock TMDS Data5+ DDC Data TMDS Clock Shield...
- Page 42 LAN Port (RJ-45) This port allows gigabit connection to a Local Area Network (LAN) using a network hub. The LAN port comes with two LEDs to indi- cate link, activity and speed. Refer to the tables below for the LAN port pin and LED definitions.
- Page 43 MIX-220 COM1 Connector (DB-9) Pin # RS-232 RS-422 RS-485 DCD-L TXD- TXD- TXD+ TXD+ RXD+ — DTR-L RXD- — DSR-L — — RTS-L — — CTS-L — — RI-L — — See the MI-220 User’s Manual BIOS chapter for COM1 Serial Port Mode settings.
- Page 44 This page intentionally left blank. Hardware Information...
- Page 45 XMC-E540 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. Read the specifications section of this manual for detailed information on the operating environment of this equipment.
- Page 46 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Equipment must be serviced by authorized technicians when:...
- Page 47 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax:...
- Page 48 84 Genting Lane #07-02A, Cityneon Design Centre, Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: 1st Floor, #50-56 (Between 16th/17th Cross) Margosa Plaza, Margosa Main Road, Malleswaram, Bangalore-560055, India Tel: +91-80-65605817, +91-80-42246107 Fax: +91-80-23464606 Email: india@adlinktech.com...
