Section 5: Connection/Wiring/Diagrams; Wiring Diagram: 7Sr1702/3 Relay - Siemens 7SR17 Rho Manual

Motor protection relay
Hide thumbs

Advertisement

Chapter 5) 7SR17 Installation Guide

Section 5: Connection/Wiring/Diagrams

5.1
W
D
: 7SR1702/3 R
IRING
IAGRAM
ELAY

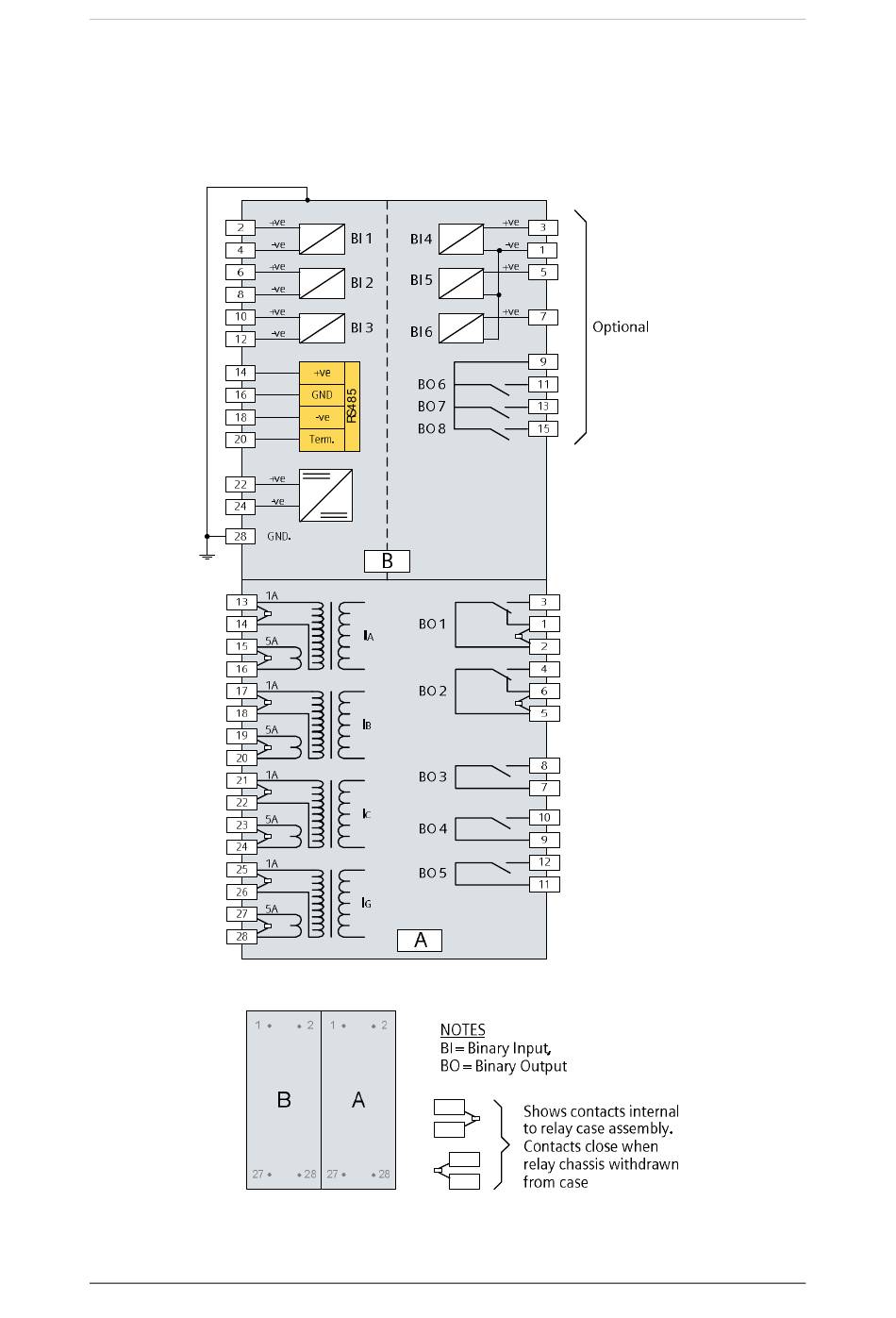

Figure 5.1-1 Connections Diagram for 7SR1702/3 Relay
Page 12 of 18
©2014 Siemens Protection Devices Limited
