New Image CYCLONE X3 Assembly And User's Manual page 7

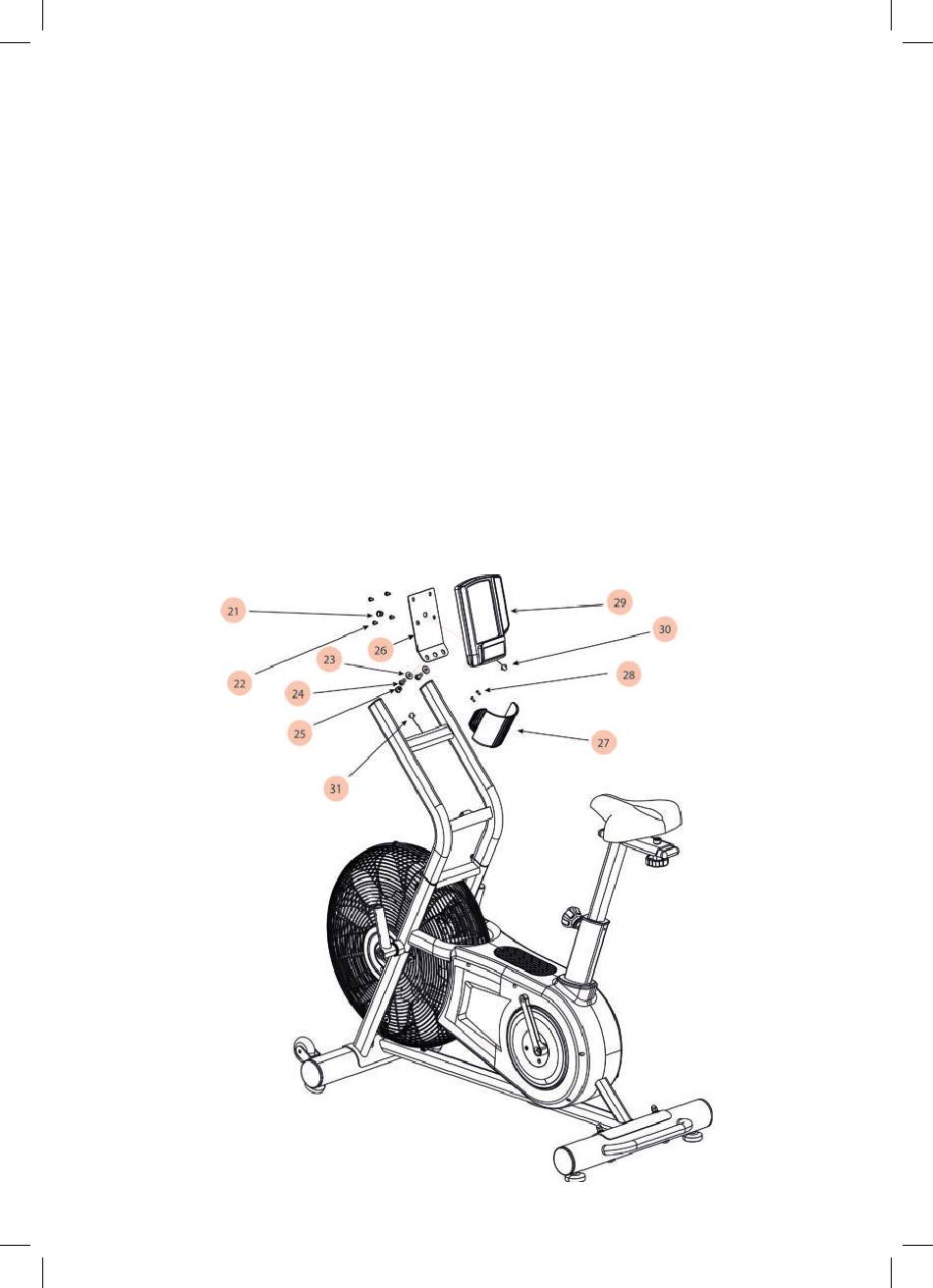

Step 4
Unlock both bolts from the angled upper frame (28) using the spanner provided.
Attach the bottle holder (27) to the angled upper frame using the bolts just removed.
Tighten and ensure this is secure.
Next, insert the grommet through specified hole in the computer holder and insert
connector wire (31) through going front to back. Then place the computer holder (26)
on the rear side of the upper angled frame and fix into place using screws (24) and
washers (23).
Remove the other grommet (21) and 4 screws (22) from the rear side of the computer.
Insert the other connector wire (30) through the grommet (21). Align the holes of the
computer holder and computer monitor and re-insert each screw (22) and grommet
(21) through the holes and secure using the screwdriver tool supplied.
The monitor should now be secured to the main product.
Please note: Some fixing components may be pre-screwed into main components
during transit. Remove as required.
