- Page 1 . ASSE MBLY A ND US E R G UID E DOWNLOAD THE NEW IMAGE FITNESS APP TODAY To help you get started visit:...
- Page 2 WARNINGS BEFORE starting any tness or strength program, consult with your physician or health o cial. This will ensure that you engage in the proper strength or tness program for your age and physical condi- tion. Before using the Slim Cycle™ answer these questions: •...
- Page 3 WARNINGS • NEVER use the stationary bike if it is not properly/completely assembled or is damaged in any way. • NEVER use Slim Cycle™ when sick or fatigued. • NEVER exceed the weight limit for this bike. The weight limit for this bike is 300 pounds.
- Page 4 WARNINGS • Please ensure that the Slim Cycle™ is wiped down after each use to keep it sanitary. • If any problems arise a ecting the performance of the Slim Cycle™, please contact the manufacturer immediately. Always ensure that parts which undergo wear are checked regularly. •...
-
Page 5: Before You Start

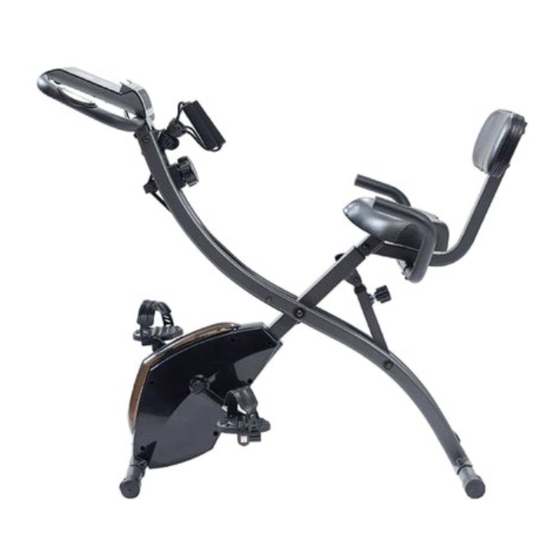

INTRODUCTION SLIM CYCLE ™ Congratulations on purchasing the Slim Cycle™, one of the highest performance stationary bikes on the tness market. The Slim Cycle™ will o er you an excellent whole body workout through the inclu- sion of upper-body movements on the bike. Accelerating, pushing up from the saddle, and recovering are all natural and dynamic total body movements for outdoor cyclists. -
Page 6: Parts List
PARTS LIST 12. 13. Also includes 2 AA batteries (not shown) 1. Main frame 12. Washers and screws · 2 washers for seat handles 2. Seat post · 2 screws for seat handles 3. Rear foot · 4 screws for backrest (Other 4. - Page 7 ASSEMBLY INSTRUCTIONS Loosen circular knob on Take both nuts and main frame and pull washers o of rear foot. tallest outward to adjust recline tallest angle to 1 (tallest setting). tallest Place the nuts and washers Install rear foot into rear to the side for now.
- Page 8 ASSEMBLY INSTRUCTIONS Tighten nut onto screw Take both nuts and with included wrench. washers o of front foot Repeat on other side. with rollers. Place the nuts and washers IInstall front foot onto to the side for now. front main frame leg. The rollers help to move the bike when it is tilted forward and should not touch the oor when the bike is in a regular stand- ing position.
- Page 9 ASSEMBLY INSTRUCTIONS Tighten nut onto screw Take nuts and washers o with included wrench. of the seat cushion. Repeat on other side. Place the nuts and washers Fit seat post onto seat to the side for now. cushion screws. Place the washers over the Finger tighten each nut screws from seat cushion.
- Page 10 ASSEMBLY INSTRUCTIONS Tighten nut onto screw Loosen triangular knob with included wrench. and remove from the Repeat on other two nuts. main frame. Insert seat post into main Secure knob back into frame. place at desired height. Remove screw, nut, and Place the screw, nut, and washer from the backrest washer to the side for now.
- Page 11 ASSEMBLY INSTRUCTIONS Align backrest support Insert screw through hole with hole in the seat post. in backrest support. Place washer onto the Place nut on screw and screw. nger tighten. If di cult to tighten, nut may be upside-down. Tighten the nut with the Place washers onto screws included wrench.
- Page 12 ASSEMBLY INSTRUCTIONS Align the seat handles Place screws into holes with holes on the bottom and nger tighten. of the backrest support. Tighten down screws with Align backrest against included large hex backrest support. Insert key/screwdriver tool. screws and nger tighten (see parts diagram).
- Page 13 ASSEMBLY INSTRUCTIONS Remove screws from Place screws to the side handle bar. for now. Feed handle bar posts into Place screws into holes the slots on the top of the and nger tighten. main frame. Tighten down screws with Remove screws from the included small hex key tool.
- Page 14 ASSEMBLY INSTRUCTIONS Starting with the largest Place control panel onto connector, feed each of the the handle bar bracket. three wires through the hole in the center of handle bar bracket. Insert screws and nger Tighten screws with tighten. included large hex key/screwdriver tool.
- Page 15 ASSEMBLY INSTRUCTIONS READ THIS SECTION CAREFULLY Connect the right pedal to the right Hold the right pedal with one hand crank arm. Both parts are marked R. and screw the pedal bolt onto the crank arm with the other hand in a standard clockwise motion.
- Page 16 CONTROL PANEL BATTERY INSTALLATION Requires 2 AA batteries (included). Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (NiCd, Ni-Mh, etc) batteries. 1. Open battery compart- 2. Note the diagram inside ment door on the back of the compartment that Slim Slim...
-
Page 17: Control Panel
CONTROL PANEL BUTTONS: [RESET] clears data from selected mode. • To reset all stored information from previous workout, press SCAN DIST for 3 seconds. • Does not clear total exercise TIME miles (ODO). SPEED PULSE [MODE] selects mode. • To reset all stored information from previous workout, press for 3 seconds. - Page 18 ADJUSTING RECLINE ANGLE Twist circular knob on main frame to the left to loosen the bolt (do not fully remove). While stepping on the rear foot, lift up on the bike while pulling the knob to adjust angle. Level 1 Level 1 Level 2 Level 3...
-
Page 19: Adjusting Seat Height
ADJUSTING SEAT HEIGHT Level 1: Seat is lowered as far as the seat post will go. Unscrew and remove triangular knob. Pull up on seat to move levels. Screw knob back into place at desired level. - Page 20 ADJUSTING PEDAL TENSION Turn the tension control knob to adjust pedal tension from 1 to 8. ADJUSTING RESISTANCE BANDS SHORTEN BANDS LENGTHEN BANDS INCREASES RESISTANCE DECREASES RESISTANCE Push the band up into the Push the band on one side of band locking compartment.
- Page 21 USING SLIM CYCLE™ SLIM CYCLE SLIM CYCLE Lean back against backrest and grab handles attached under seat. Keeping your back straight, pedal at desired pace. Lean forward and grab onto handlebars where the heart rate monitor grips are located. Keeping your back straight, pedal at desired pace.
- Page 22 USING SLIM CYCLE™ SLIM CYCLE SLIM CYCLE Lean back against backrest and grab both resistance band handles. Keeping your back straight and elbows close to torso, pull the right handle towards right shoul- der. Repeat with left arm. Lean back against backrest and grab both resistance band handles.
- Page 23 USING SLIM CYCLE™ SLIM CYCLE Keeping your back straight and arms locked out straight, grab the resistance band handles and pull to shoulder height. Lower slowly and repeat.
