New Image CYCLONE X3 Assembly And User's Manual page 6

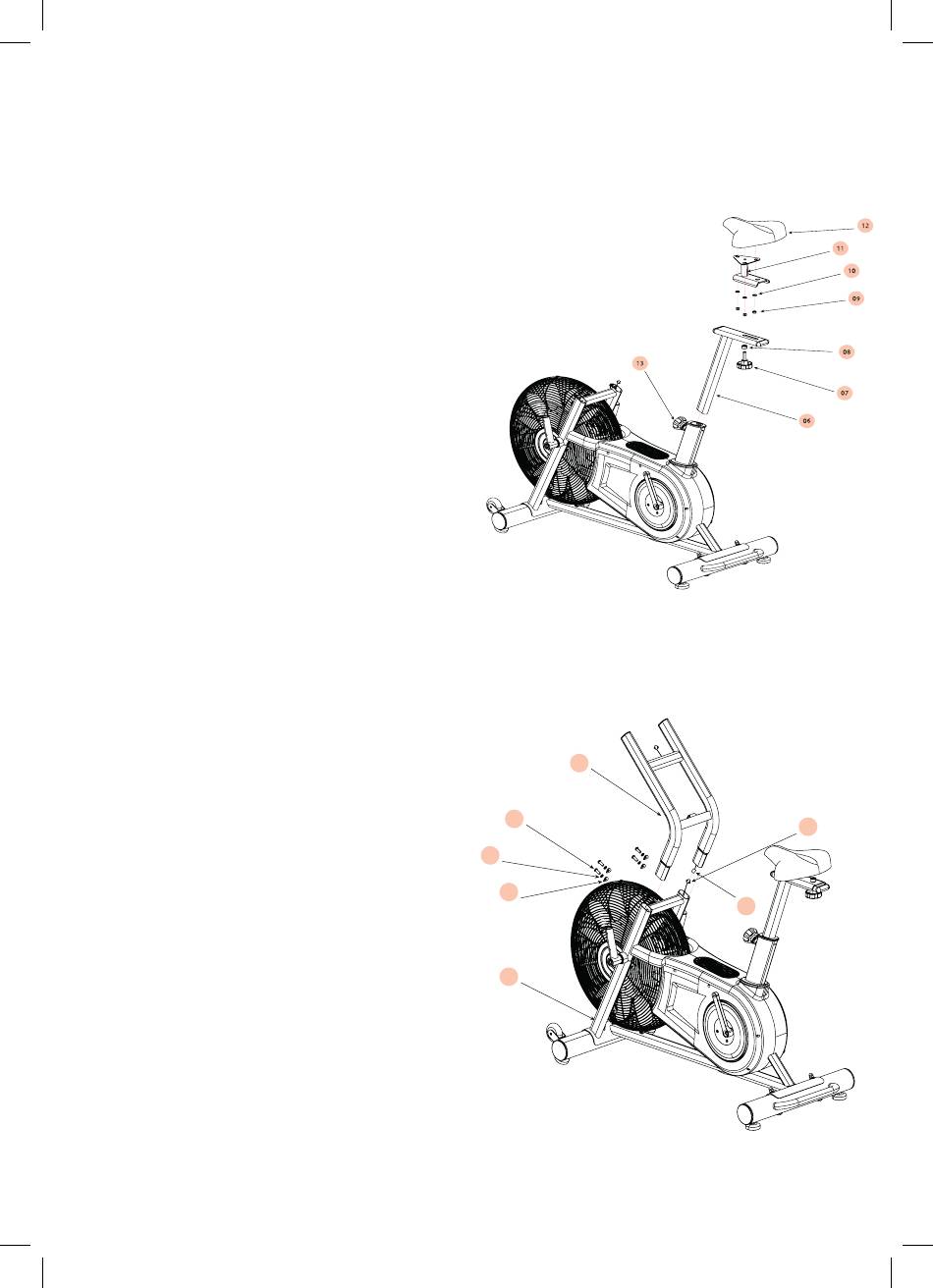

Step 2
Insert the upright saddle tube (06) into the
corresponding hole on the main frame and
use the spring locking knob (13), turning
clockwise to tighten into place. To adjust
saddle tube height, pull outward on the
handle to release the spring and select
height.
Next, remove nuts (09) & washers (10)
from the saddle (12) using the supplied
spanner. Align the saddle fixing plate (11)
with the saddle and place over threaded
bolts on the underside of the saddle. Re-
attach washers and nuts with the provided
spanner and tighten into position.
Once each of the above is secured, take
the assembled saddle and align over
the top of saddle tube to align hole and
slotted groove.Using the fixed knob (07),
insert into the top section of the upright
saddle tube from the underside. Secure in
place using the provided spanner.
Step 3
Remove bolts and washers (14, 15 & 16)
from lower frame (20) and store safely.
Connect the wire on the main frame (19)
to the lower wire on the angled upper
frame (18).
Once connected securely, insert the
angled upper frame (17) into the main
frame and fix into place using the bolts
and washers (14,15,16) using the supplied
allen key.
17
14
15
16
20
19
18
