New Image CYCLONE X3 Assembly And User's Manual

Total body air assault bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

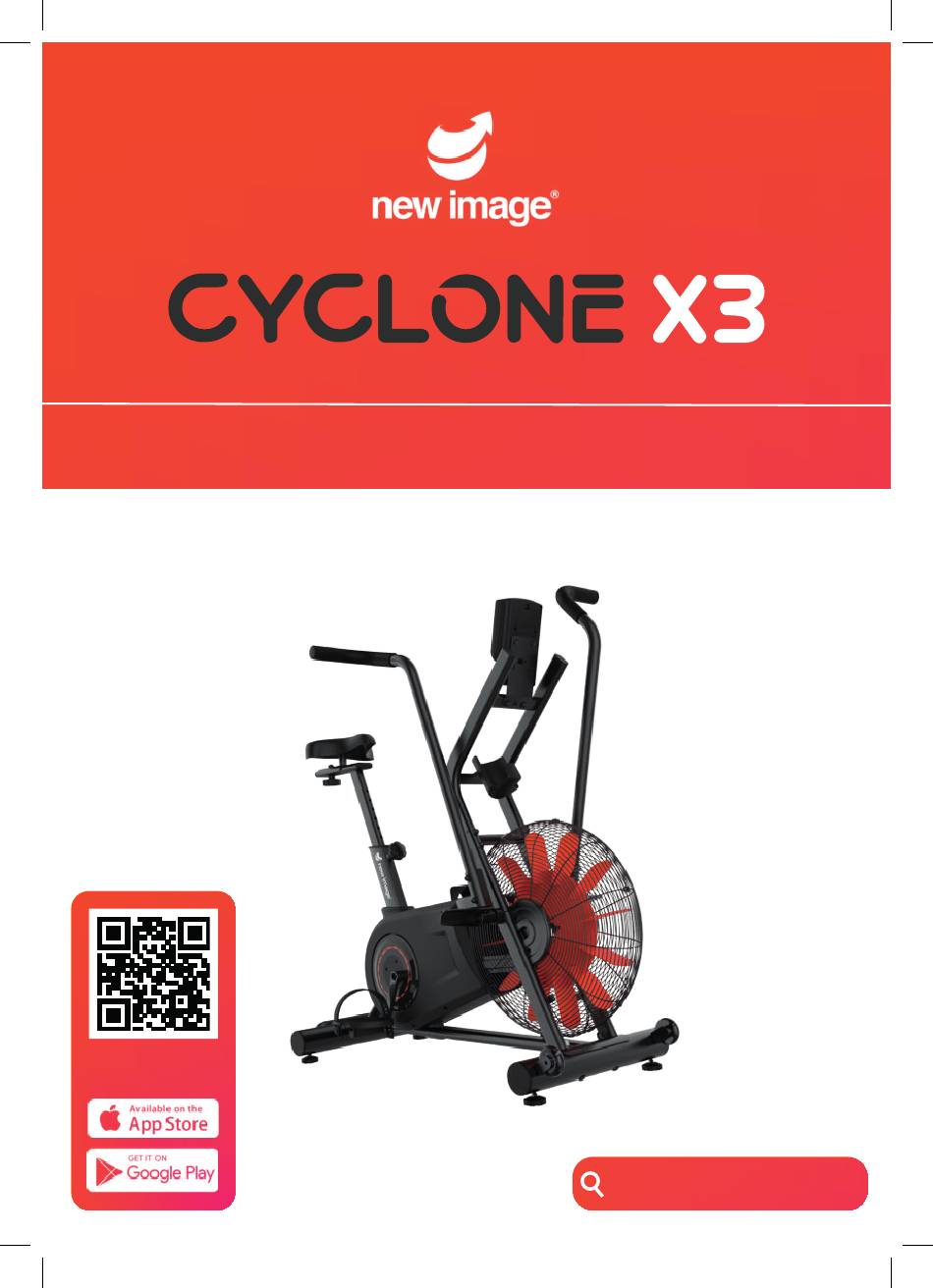

TOTA L B O DY A I R A S S A U LT B I K E
AS SE MBLY AND U SER GU IDE
DOWNLOAD THE
NEW IMAGE FITNESS
APP TODAY
To help you get started visit:
newimagefitness.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYCLONE X3 and is the answer not in the manual?

Questions and answers

Damo
April 9, 2025

On page 6, what is Number 8?

0
1 comments:
Mr. Anderson
April 10, 2025

Number 8 on page 6 of the New Image CYCLONE X3 manual is the "Bottle holder".

This answer is automatically generated

0

Related Manuals for New Image CYCLONE X3

Summary of Contents for New Image CYCLONE X3

  • Page 1 TOTA L B O DY A I R A S S A U LT B I K E AS SE MBLY AND U SER GU IDE DOWNLOAD THE NEW IMAGE FITNESS APP TODAY To help you get started visit: newimagefitness.co.uk...
  • Page 2 We know getting started is sometimes the hardest part so we design all our products to be simple, fun to use and effective. We hope you enjoy your new Cyclone X3 and would love to hear your experiences. Check out our social channels and take a look at YouTube for videos, tips and workouts.
  • Page 4 Congratulations on purchasing your new Cyclone X3! by New Image is a highly The resistance provided by the fan instantly The Cyclone X3 ® effective cardio workout for all experience adapts to your intensity level so you set your levels. Whether you’re an absolute beginner own pace to suit your goals.
  • Page 5 WHAT’S IN THE BOX: Fixings & tools Adjustable Spring Seat post knob x1 M8 Curved washer x4 M12 Flat Washer M8 Carriage Bolt x4 Lock x1 M8 Nut x4 Allen Key x1 Multi Wrench x1 M8 Spring washer x4 Note: Some additional fixing components come preassembled with the product. QUICK-START GUIDE: Step 1 Attach front and rear stabilty legs (01) using the supplied fixing components M8 Nuts,...
  • Page 6 Step 2 Insert the upright saddle tube (06) into the corresponding hole on the main frame and use the spring locking knob (13), turning clockwise to tighten into place. To adjust saddle tube height, pull outward on the handle to release the spring and select height.
  • Page 7 Step 4 Unlock both bolts from the angled upper frame (28) using the spanner provided. Attach the bottle holder (27) to the angled upper frame using the bolts just removed. Tighten and ensure this is secure. Next, insert the grommet through specified hole in the computer holder and insert connector wire (31) through going front to back.
  • Page 8 Step 5 Remove bolts (34), spring washers, (35) and arc washers (36) from the swinging bar on the main unit (33). Set components aside. Insert the left swining handle (32) on to the swinging bar (33) ensuring the holes are aligned with the top handle facing outwards.
  • Page 9 Moving the machine To move the machine, lift up the handlebar of rear stability leg until the wheels on the front stability leg touch the ground as shown in the diagram below. With the wheels on the ground, you can transport the bike to the desired location with ease. 1.

  • Page 10: Adjusting The Seat Position

    Adjusting the seat position Rotate the lower knob counter-clockwise to adjust the height according to the holes on the saddle tube. Rotate the upper knob (under the saddle) counter-clockwise to adjust the distance from front to back. The arrows on the knob indiciate the correct direction of turning.
  • Page 11 Display Functions DESCRIPTION Display the rotation per minute with range from 0~ 199. Display current training speed. Maximum speed is 99.9 KM/H or ML/H. SPEED Count up without a preset target, Time will count up from 00:00 to maximum TIME 1:59:59 with each increment is 1 minute.
  • Page 12 Operating Instructions When powering on the LCD Display will show all icons in full for 2 seconds (Figure 1), then will display the wheel diameter for 1 second in the distance section (Figure 2). Finally, it will enter to the Age setting mode in the bottom right window.

  • Page 13: Pre-Set Functions

    To Select Manual, Interval, Target Distance, Target Calories, Target Time programs: Manual mode: 1 In Standby mode, press START to start a workout quickly, the buzzer will sound for 1 second. TOTAL TIME/ TIME/ DISTANCE/CALORIES/ WATTS/ SPEED/ RPM will start to count up (Figure 17). 2 No signal input for 30sec, buzzer sounds 1 short beep, and the display will enter to sleep mode.
  • Page 14 3 Cycle time counts down from 20 to 0 and WORK flashes once per second. Meantime windows displays rotation animation and count down from 4 minutes. Then TOTAL TIME, DISTANCE, CALORIES, WATTS, SPEED & RPM start calculating, counting displays ‘01/08’(Figure 21). 4 Cycle time counts down from 10 to 0 and WORK flashes once per second along with 10 beeps (Figure 22), meanwhile READY will flash in last 3sec (Figure 23).
  • Page 15 4 Cycle time counts down from 20 to 0 and REST flashes once per second along with beeps (Figure 26), meanwhile READY will flash in the last 3sec(Figure 27). 5 The above 3 & 4 continue cycle counting and add 1 per each cycle, until displays 08/08 WORK, then will go to the end page.
  • Page 16 4 Cycle time counts down from 3 to 0 then console start, meanwhile buzzer beeps once per second and READY flashes once per second, counting displays ‘00/ XX’(Figure 31). 5 Cycle time counts down from the pre-set total time and WORK flashes once per second.
  • Page 17 Target time mode: 1 In Standby mode, press Target Time key and a TIME and target symbol will light up, along with a long sound for 1sec. 2 TIME value is flashing, press UP and DOWN to adjust value (Figure 35) and press ENTER to confirm meanwhile buzzer beeps 1sec and a TIME and target symbol will light up.

  • Page 18: Options Setting

    3 Pre-set DISTANCE value counts down, TIME, CALORIES, WATTS, SPEEED, RPM starts to count up. (Figure 38) 4 Press START button once enter pause mode. Buzzer will sound for 0.5sec per second within 30sec. All values are displaying on the display and flash in every 2sec.

  • Page 19: Reset Mode

    RESET MODE 1 In any mode, press STOP for 2sec, system will do TOTAL RESET. 2 LCD flash in every 2 seconds, buzzer sound for 2 seconds. 3 Reverse to Standby page, all setting will resume to pre-set value. SLEEPING MODE In Standby mode, if no key is pressed or no RPM’s recorded for 30sec, the console will go into sleep mode.

  • Page 20: Safety Information

    SAFETY INFORMATION • Please read this user guide before first using your Assault Bike. It is important to keep these instructions for future reference. • Assemble and operate the equipment on a level surface. • Ensure the equipment is stable before use. •...

  • Page 21: Maintenance And Storage

    • We recommend placing a mat beneath the equipment to protect both the equipment and flooring. New Image mat can be purchased at newimagefitness.co.uk • The safety level of the equipment can only be maintained if it is regularly examined for wear and tear.
  • Page 23 NEW IMAGE APP Access to all your workout videos...
  • Page 24 DOWNLOAD THE NEW IMAGE FITNESS APP TODAY! To access all your workout videos wherever & whenever you want! Distributed by: High Street TV, PO Box 7903, CORBY, NN17 9HY Version 1 03/22 CR3557...
