iBoard
READ INSTRUCTIONS CAREFULLY BEFORE
START ING INSTALLATION. REMOVE CONTENTS
FROM BOX AND VERIFY ALL PARTS ARE PRE-
SENT. ASSISTANCE IS RECOMMENDED.
*BODY FRAME MOUNT
*DRILLING IS REQUIRED/ CUTTING IS REQUIRED

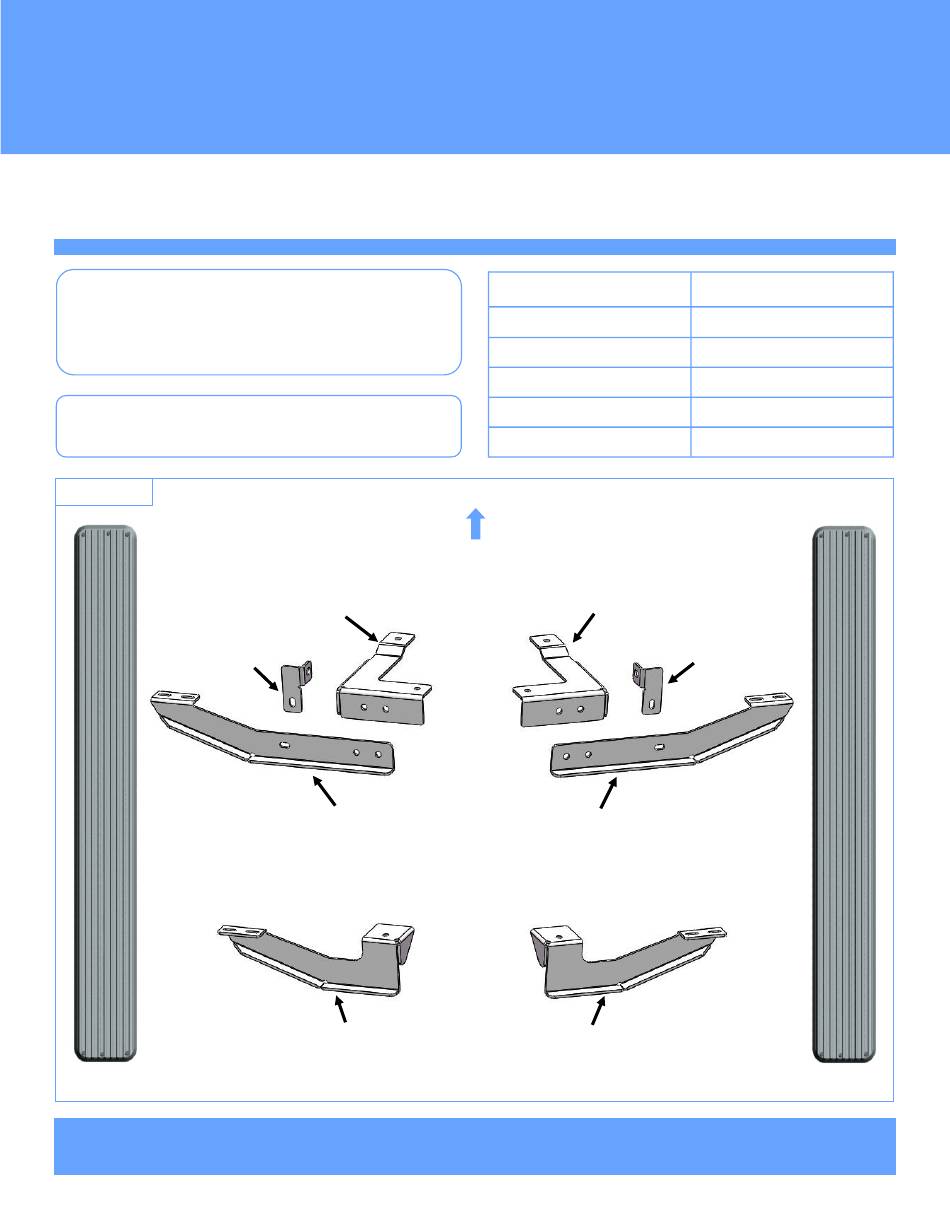

PART LIST
Driver Front Mounting
Driver Front Support
Bracket (DFS)
iBoard
by APS
Bracket (DFM)
Driver Front Bar
Bracket (DFB)
Driver Rear Mounting
Bracket (DRB)
Customer Support: info@iboardauto.com
®
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mounting
Bracket (PFM)
Passenger Front Support
Passenger Front Bar
Bracket (PFB)
Passenger Rear Mounting
Bracket (PRB)
1
PART#: IB-192A-B
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Bracket (PFS)
Rev. 20210301
Advertisement
Table of Contents
Related Manuals for APS iBoard IB-192A-B
Summary of Contents for APS iBoard IB-192A-B
- Page 1 ® ® iBoard by APS PART#: IB-192A-B Fastener Size Tightening Torque (ft-lbs) READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRE- SENT. ASSISTANCE IS RECOMMENDED. 16-18 10mm 31-32 12mm 56-58 *BODY FRAME MOUNT...
- Page 2 iBoard ® M10X1.5- M10 Large Flat M10 Lock Washer M10 Hex Nut Washer 35mm Hex Bolt M10X35 Bolt Plate M10X40 Bolt Plate M6X1-20mm M6 Large Flat M6X1 Nylon M8X1.25- M8 Large Flat M8 Lock Washer M8 Hex Nut Square Head Bolt Washer Lock Nut 35mm Hex Bolt...
- Page 3 iBoard ® STEP 2 STEP 3 Select the Driver Front Mounting Bracket (DFM) and the Driver Next, select the Driver Front Support Bracket (DFS), (Fig 6). Front Bar Bracket (DFB). Bolt the Bar Bracket to the back of the Attach the Support Bracket to the front side of the Driver Front Mounting Bracket with the included (2) M10X1.5-35mm Hex Bar Bracket with (1) M10X1.5-35mm Hex Bolt, (2) M10 Large Bolts, (4) M10 Large Flat Washers, (2) M10 Lock Washers and...
- Page 4 iBoard ® Rear M10X35 Bolt Plate (Fig 9) Slip M6X1-20mm Square Head Bolts Into The Bottom Channels (2) M6X1-20mm Square Head Bolts (2) M6 Large Flat Washers (2) M6X1 Nylon Lock Nuts (Fig 7) Insert (1) M10x35 Bolt Plate Into The Slot Rear (1) M10 Lock Washer (1) M10 Hex Nut...
- Page 5 iBoard ® STEP 8 (1) M8X1.25-35mm Hex Bolt (2) M8 Large Flat Washers Front (1) M8 Lock Washer (1) M8 Hex Nut Use the hole in the Support Bracket as a guide to mark the drill- ing location on the back of the pinch weld, (Fig 11). Once you have marked the location, temporarily remove the Sidebar, the front Mounting Bracket and Support Bracket.
