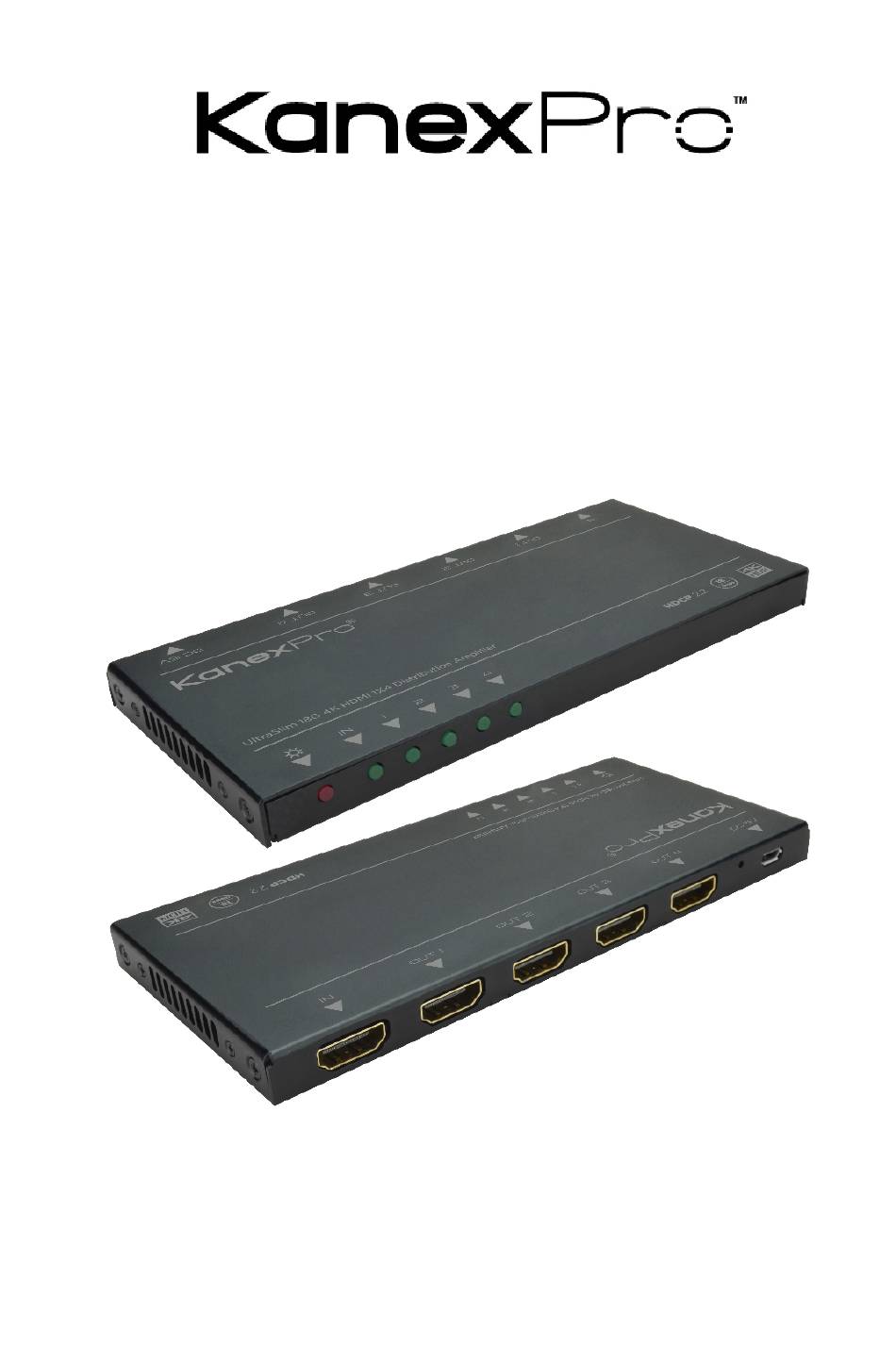

SP-1X4SL18G

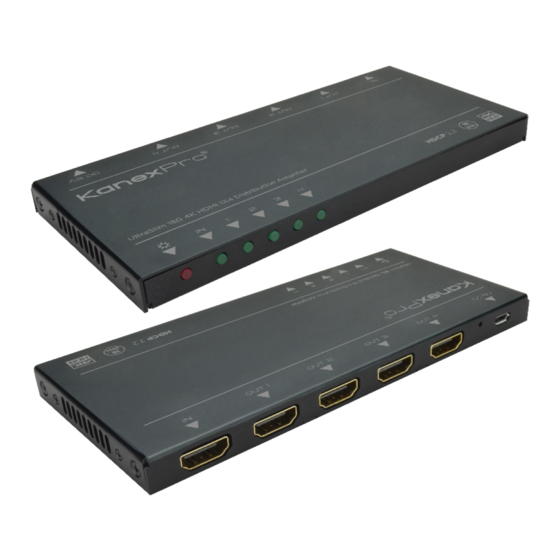

4K HDMI Splitter 1x4
All Rights Reserved
Version: SP-1X4SL18G_2016V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-1X4SL18G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KanexPro SP-1X4SL18G

  • Page 1 SP-1X4SL18G 4K HDMI Splitter 1x4 All Rights Reserved Version: SP-1X4SL18G_2016V1.0...
  • Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. SP-1X4SL18G www.kanexpro.com...
  • Page 3 Unplug the power cord when left unused for a long period of time. l Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. SP-1X4SL18G www.kanexpro.com...
  • Page 4: Table Of Contents

    4K HDMI Splitter 1x4 Contents 1. Introduction ........................1 1.1 Introduction to SP-1X4SL18G ................1 1.2 Features ......................1 1.3 Packing List ......................1 2. Panel Description ......................2 3. System Connection ..................... 4 3.1 Usage Precautions ..................... 4 3.2 System Diagram ....................4 3.3 Connection Procedures ..................
  • Page 5: Introduction

    1. Introduction 1.1 Introduction to SP-1X4SL18G SP-1X4SL18G is a HDMI splitter featuring the capability to repeat HDMI or DVI source to 4 displays synchronously. Compliance with HDMI 2.0& HDCP2.2, SP-1X4SL18G provides comprehensive resolution capacities up to 4K& 1080p 3D. It’s capable to automatically recognize the resolution and HDCP compliant status of the input signal.
  • Page 6: Panel Description

    Pictures shown in this manual are for reference only, different model and specifications are subject to real product. b) Output HDCP compliant status depends on input signal. When the input signal is with HDCP, then output signal is with HDCP and vice versa. SP-1X4SL18G www.kanexpro.com...
  • Page 7 SP-1X4SL18Gis capable to switch input signal format according to the displays. For example, when the input signal is HDMI and the display can only support DVI signal, SP-1X4SL18G will switch the signal into DVI format. e) EDID Management: automatically manage output signal (e.g. output resolution) to fit all displays.
  • Page 8: System Connection

    SP-1X4SL18G with HDMI cables. Step3. Plug a DC 5V power adapter to the power port of SP-1X4SL18G. Note: All the ports support hot-plug. It’s important to know that hot plugging a display may result in splash screen at all connected output devices.
  • Page 9: Edid Management

    4K HDMI Splitter 1x4 3.4 EDID Management SP-1X4SL18G comprises 1 HDMI input port & 4 HDMI output ports, and it possess built-in EDID management function. When all output ports are connected with displays, the source device will gain the EDID data from the display connected output 1 port. At this point, if you disconnect the output 1 display and want the source device to gain the EDID from the output 2, the SP-1X4SL18G need to be restarted.
  • Page 10: Specification

    In-built EDID management Support Dolby D (True HD)/ DTS (HD-Master Audio)/ HDMI Embedded Audio General Reference Temperature 0~ 55℃ 10% ~ 90% Humidity 输入:100V~240V AC Power Power 6.5W (Max) Consumption 输出: DC5V 2A Dimension 152mmx 11mmx 70mm Weight 140g (W*H*D) SP-1X4SL18G www.kanexpro.com...
  • Page 11: Supported Input Video Formats

    1920 x 1080I@30Hz 3840 x 2160@25Hz 3840 x 2160@30Hz 3840 x 2160@60Hz 1080P 3D@60Hz Note: SP-1X4SL18G supports 4k& 3D HDMI signals, please adopt quality HDMI cables compliant with HDMI1.4 for better transmission when connecting 4K or 3D sources. SP-1X4SL18G www.kanexpro.com...
  • Page 12: Panel Drawing

    4K HDMI Splitter 1x4 5. Panel Drawing 152 mm SP-1X4SL18G www.kanexpro.com...
  • Page 13: Troubleshooting & Maintenance

    No HDMI signal output in The connecting cables may Check whether the cables SP-1X4SL18G while local not be connected correctly are connected correctly HDMI input is in normal or it may be broken. and in working condition.
  • Page 14: After-Sales Service

    4K HDMI Splitter 1x4 7. After-sales Service If there appear some problems when running SP-1X4SL18G, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail).
  • Page 16 Brea, California KanexPro.com MPN: SP-1X4SL18G HDMI®and HDBaseT™ are trademarks or registered trademarks of HDMI Licensing LLC & HDBaseT Alliance respectively in the United States and other countries. KanexPro is a trademark of Apogee Inc., registered trademarks in the US.
