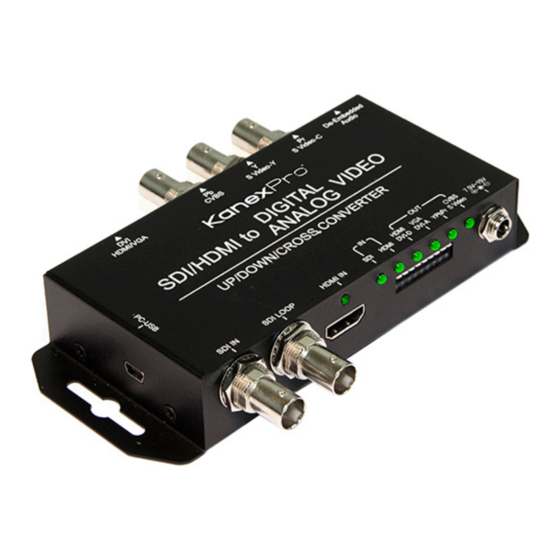

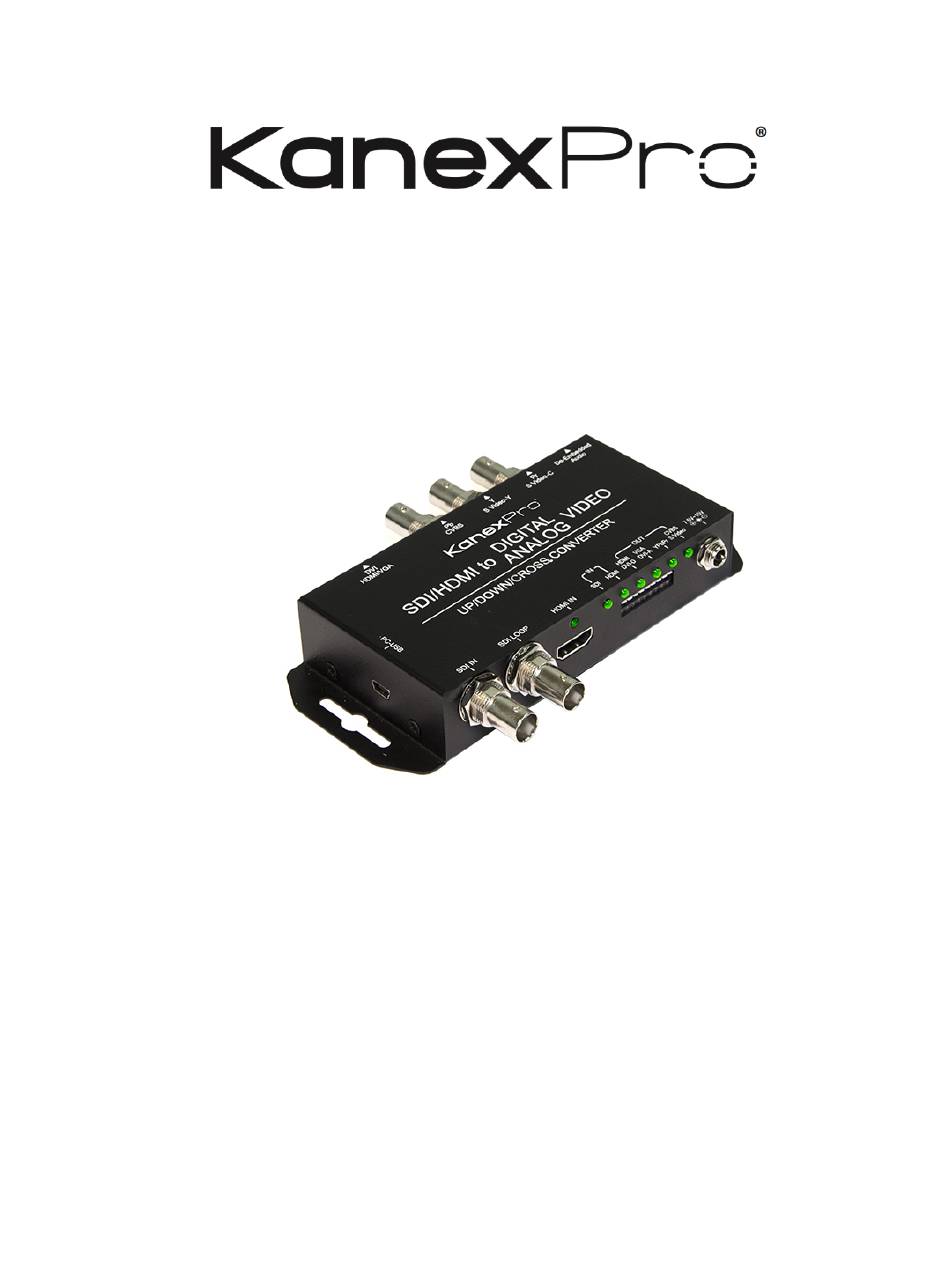

- Page 1 SDI-SDI2MULTIPRO Convert 3G/HD/SD-SDI & HDMI to DVI-D, VGA, Component, S-video or Composite User manual Rev1.0...
-
Page 2: Table Of Contents
KANEXPRO SDI-SDI2MULTIPRO Content Introduction ................3 Feature ................... 3 Front Panel ................4 Rear Panel ................5 Side Panel ................5 DipSwitch/LED Control ..............6 Installation ................12 Package Contents ..............12 Specifications ................13 Firmware Upload ............... 14 Appendix Table A ..............16 Update List ................ -
Page 3: Introduction
SDI-SDI2MULTIPRO Introduction The KanexPro 3G-SDI to Multi video is a cross converter and switcher designed to convert SDI and HDMI video and audio to multiple outputs such as DVI, VGA, Component, S-video or Composite video. It packs a powerful up and down video scaler supporting a bank of resolutions up to 1080p60/59.94Hz and 1080p/29.97Hz... -
Page 4: Front Panel
KANEXPRO SDI-SDI2MULTIPRO Front Panel Component Function SDI Input Port From your SDI Device plug into this port SDI Pass Thru From your SDI Display Device plug into this ports HDMI Input Port From your HDMI Device plug into this port Input Port/ Output Port The LEDs are indicating Input Ports and Output Source LED Dipswitch Control the Box (Input Port/Audio/Output Format) P a g e... -
Page 5: Rear Panel
KANEXPRO SDI-SDI2MULTIPRO Power Jack The Power adapter plug into here Rear Panel Component Function Phone Jack From you Audio Device plug into this port Component/CVBS/S-Video From your YPbPr/CVBS/S-Video Device plug into this port Output Port DVI-D/DVI-A Input Port From your DVI-D/DIV-A Device plug into this port Side Panel Component Function USB Port Upgrade firmware/Control Box from PC P a g e... -
Page 6: Dipswitch/Led Control
KANEXPRO SDI-SDI2MULTIPRO DipSwitch/LED Control Component Function Control Mode Control Box from Dipswitch or USB Input Source Select Input Source Output Source Select Output Source Output Format Select Output Format Frame Rate Select 1000 or 1001 Frame rate Control Mode: Control Box from Dipswitch or USB. Control Mode... - Page 7 KANEXPRO SDI-SDI2MULTIPRO Input Source: Select Input Source from SDI or HDMI Input Source Dipswitch Indicates SDI HDMI SDI INPUT P a g e...
- Page 8 KANEXPRO SDI-SDI2MULTIPRO HDMI INPUT Output Source: Select Output Source(DVI-D/DVI-A/YPbPr/CVBS/SVIDEO) Output Source Dipswitch Indicates DVI-D(HDMI) DVI-A(VGA) YPbPr CVBS+SVideo P a g e...
- Page 9 KANEXPRO SDI-SDI2MULTIPRO Output Format: Resolution Dipswitch Indicates Resolution 1920x1080p60 1280x720p50 720x480p60 1920x1080p50 720x576p50 1920x1080p30 1920x1080p25 720x480i59 1920x1080p24 720x576i50 1920x1080i60 PC 640x480p60 1920x1080i50 1280x720p60 Pss Thru Frame Rate: Select Frame Rate 1000 or 1001 Output Source Dipswitch Indicates 1000 1001 P a g e...
- Page 10 KANEXPRO SDI-SDI2MULTIPRO LED Indicate: 2 3 4 5 Component Function SDI Input The LED indicate SDI Signal Status HDMI Input The LED indicate HDMI Signal status DVI-D(HDMI) Output The LED indicate DVI-D(HDMI) Signal DVI-A(VGA) Output The LED indicate DVI-A(VGA) Signal YPbPr...
- Page 11 KANEXPRO SDI-SDI2MULTIPRO 2. DVI-A + L/R Audio: DVI-A + L/R Audio DVI-D DVI-A YPbPr CVBS/S-Video ○ ● ○ ○ YPbPr + L/R Audio: YPbPr + L/R Audio DVI-D DVI-A YPbPr CVBS/S-Video ○ ○ ● ○ 11 | P a g e...
-
Page 12: Installation
Composite(CVBS) + L/R Audio DVI-D DVI-A YPbPr CVBS/S-Video ○ ○ ○ ● Installation SDI-SDI2MULTIPRO installation consists of the following: Disconnect 12v DC adaptor to converter. Connect Video Source to the Input Connector. Connect Display Equipment to the output’s connector Connect the 12v DC adaptor to the converter. Package Contents The SDI-SDI2MULTIPRO package contains the following items: User Manual x 1 12v DC Adapter x 1 SDI-SDI2MULTIPRO Converter x 1 12 | P a g e... -
Page 13: Specifications
KANEXPRO SDI-SDI2MULTIPRO Specifications DESCRIPTION SDI-SDI2MULTIPRO SDI Format SD-SDI, HD-SDI & 3G-SDI SDI Transition Rate 2.970Gb/s, 1.485Gb/s and 270Mb/s Audio Support 8 - Channel RG6/RG59(75Ω) Coaxial Cable Type 3G: 100m of RG6/ 86m of RG59 HD: 170m of RG6/ 120m of RG59 SD: 400m of RG6/ 280m of RG59 Cable Equalization *1 RG6: CANARE L-5CFB Cable / RG59: Belden 9275 Cable *2 Cable Length Performance: Depending on SDI Signal and... -
Page 14: Firmware Upload
KANEXPRO SDI-SDI2MULTIPRO Firmware Upload Firmware is upgradable in the field using the integrated USB port How to upgrade Firmware: Step 1. Open Upload Firmware Program tools.exe and connect box to PC by USB Cable. Step 2. Plug and un-plug “DC adapter” to power on/off the converter box (the connection check status will be changed to “Connect”) - Page 15 KANEXPRO SDI-SDI2MULTIPRO Step 3. Plug and un-plug “DC adapter” again (the connection check status will be changed to “Connected”) and Please click the Open File button to select the firmware bin file. Step 4. Please click “Start’ Button to proceed with new firmware programming.
-
Page 16: Appendix Table A
KANEXPRO SDI-SDI2MULTIPRO Appendix Table A Support Input Format: 720x480i59 720x576i50 720x480 p60/59 720x576 p50 1280x720p60/59 1280x720p50 1920x1080i60/59 1920x1080i50 1920x1080p24/23 1920x1080p25 1920x1080p30/29 1920x1080p60/59 1920x1080p50 640x350p85 640x400p85 720x400p85 640x480p60 640x480p72 640x480p75 640x480p85 800x600p56 800x600p60 800x600p72 800x600p75 800x600p85 848x480p60 1024x768p50 1024x768p59 1024x768p60 1024x768p70... -
Page 17: Update List
Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. - Page 18 D. NO LIABILITY FOR DAMAGES To the maximum extent permitted by applicable law, in no event shall KanexPro be liable for any damages whatsoever (including without limitation, special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss) arising out of the use of or inability to use this product, even if KanexPro has been advised of the possibility of such damages.
