Fits: 2009-2018 RAM 1500 (Excl. Rebel & Warlock Trims / Incl. 2019-
Current Ram 1500 Classic)
THE BULL BAR MAY INTERFERE WITH PARKING SENSORS, P
ROXIMITY SENSORS AND CRUISE CONTROL SENSORS.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR
TIGHTENING BODY MOUNT NUTS & BOLTS VARIES FROM 7 TO 8.5
FOOT POUND FOR M6 ,18 TO 20 FOOT POUND FOR M8, 35-40 FOOT
POUND FOR M10 AND 60 TO 70 FFOOT FOOT POUND FOR M12.
Qty
1 Bull Bar
2 Tube Brackets (Bull Bar) passenger or driver side
1 Driver/Left Upper Frame Brackets (models w/o tow hooks only)
1 Passenger/Right Upper Frame Brackets (models w/o tow hooks only)
1 Driver/Left Mounting Bracket
1 Passenger/Right Mounting Bracket
1 Driver/Left Support Bracket
1 Passenger/Right Support Bracket
2 Light Brackets
12-1.5mm x 30mm Special Fine Thread Hex Bolt (for models w/o
2
tow hooks only)
4 12-1.75mm x 35mm Hex Bolts
14 12mm x 32mm OD x 3mm Flat Washers
10 12mm Lock Washers
8 12-1.75mm Hex Nuts
Passenger/Right
Upper Frame
Bracket (no tow
hook only)
Passenger/Right
Mounting Bracket
PROCEDURE:
Page 1 of 8

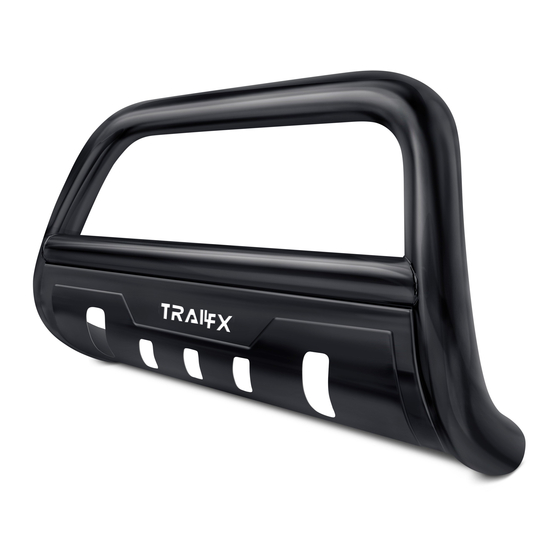

3.5" Oval Bull Bar
Part No. B1503S/B
PARTS LIST:
Part Description
Passenger Side
Support Bracket
(see note below)
Driver Side Support Bracket
pictured in "no-tow hook"
direction. Reverse direction for
tow hook equipped vehicles
Tube Brackets
Cutting
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Qty
Part Description
2 10-1.5mm x 35mm Hex Bolts
2 10mm Lock Washers
4 10mm x 27mm OD x 3mm Flat Washers
2 10-1.5mm Hex Nuts
4 8-1.25mm x 35mm Hex Bolts
4 8mm Lock Washers
4 8mm x 22mm OD x 2mm Flat Washers
4 6-1.0mm x 20mm Button Head Bolts
4 6mm Lock washers
4 6mm x 18mm OD x 1.6mm Flat Washers
2 5-.8mm x 20mm Button Head Allen Bolt
4 5mm x 10mm OD x 1mm Flat Washers
2 5mm Nylon Lock Nuts
1 Wrench (Allen bolt)
www.TrailFX.com
Drilling Not
Required
Driver/Left
Upper Frame
Bracket (no
tow hook only)
Driver/Left
Mounting Bracket
Rev 091620
